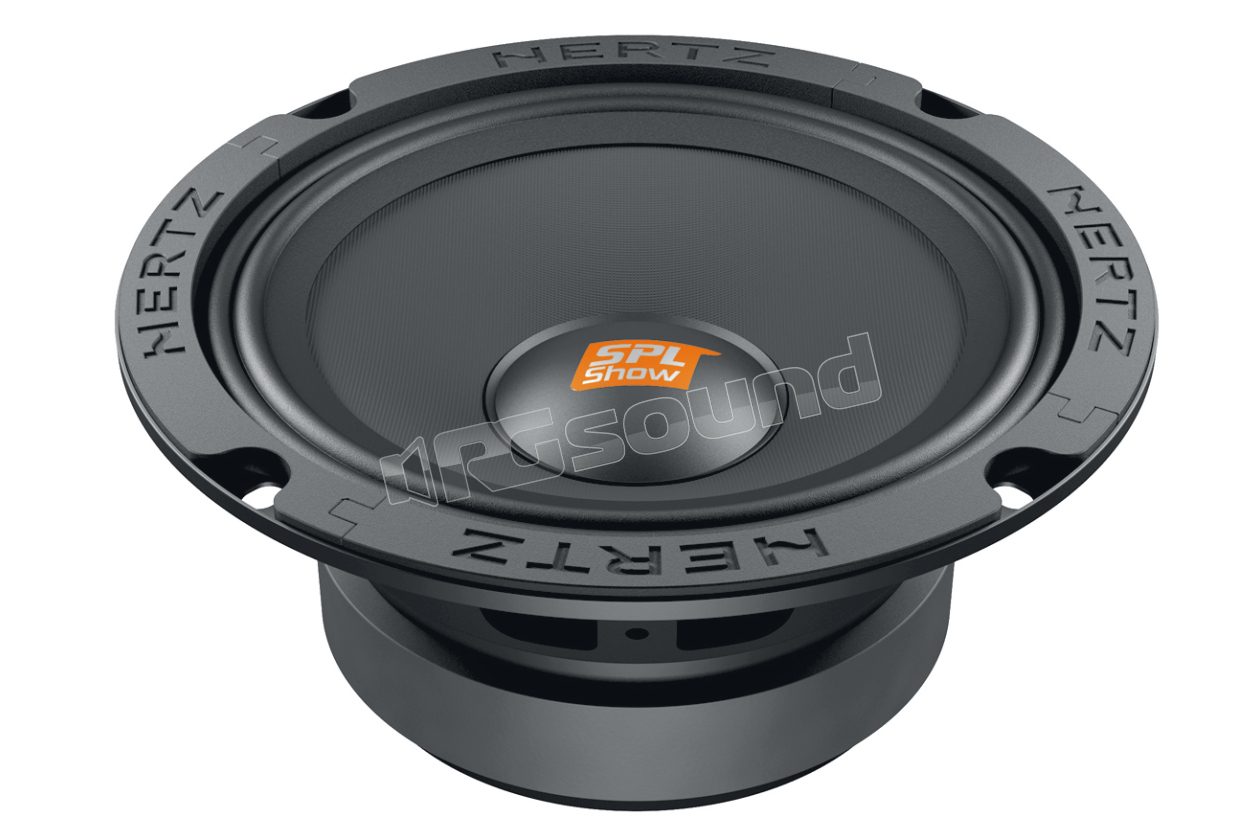

SV 165.1 Pair of SPL 165mm midrange speakers for high-performance systems

Hertz
Your price:
€ 149,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Midrange
Speaker Size
70 mm
MAX Power
300 Watt
RMS Power
150 Watt
Frequency Response
100 - 10000 Hertz
Sensitivity
97 dB
Impedance
4 Ohm
Weight
1,85 Kg
Installation Depth
66 mm
Midrange Cone Material
Cellulosa rinforzata

Hertz SV 165.1 Pair of 165mm SPL midrange drivers for high-performance systems

HertzSV 165.1 pair of 165mm midrange drivers, with a maximum power of 400W, to build high-performance systems. SV 165.1 features a very solid and robust structure and, like the other components in the SPL Show line, uses a double-layer copper coil wound on KSV support, optimizing mechanical and thermal capabilities even in extreme situations.
For the cone, a pressed paper membrane with water-repellent treatment and a cellulose dust cap have been used to ensure rigidity and lightness; double wave suspensions in damped fabric to guarantee linearity even in the most extreme conditions. All for the benefit of high SPL values.
SV 165.1 Features
  • High heat dissipation pole plates, to provide a continuous and constant magnetic flux.
  • Large magnet to ensure the energy necessary for controlling the voice coil assembly at the highest power levels, for top SPL performance.
  • Aluminum coil wound in a double layer for exceptional thermal and mechanical strength.
  • Perforated lower plate to improve heat dissipation.
  • High-current tinned terminals.
  • Damped fabric suspension; for maximum lightness and high SPL performance.
  • Pressed paper cone with water-repellent treatment.

Specifiche - grafico

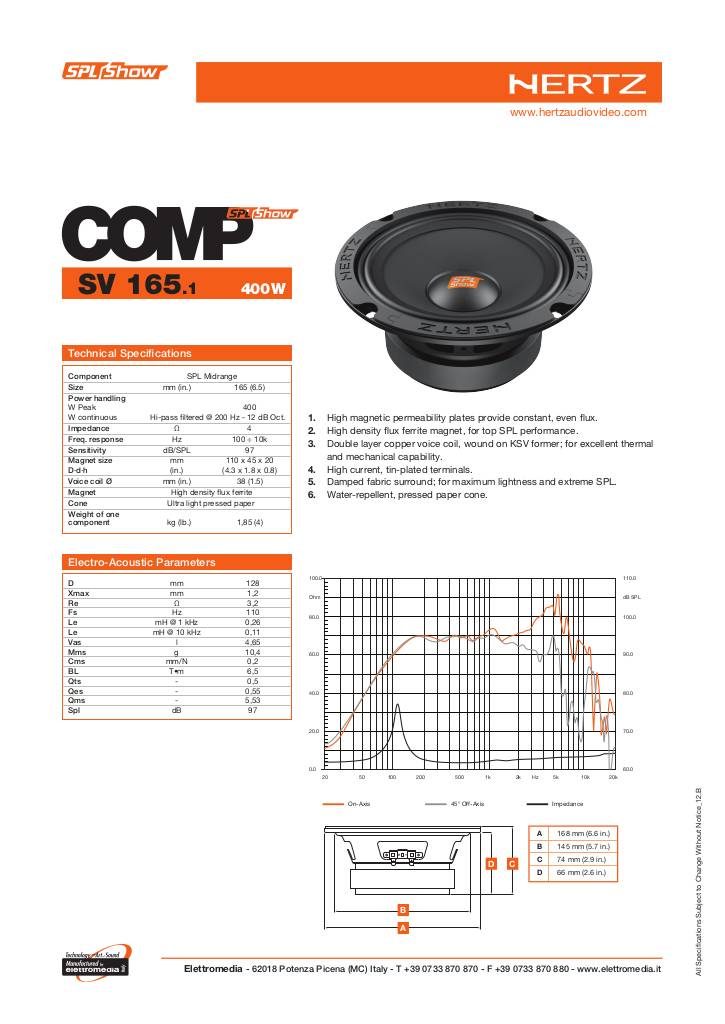

20121113200141-sv165.pdf

Hertz SV 165.1 Technical Specifications

  • SPL Midrange Component
  • Size mm (in.) 165 (6.5)
  • Continuous power handling W 150
  • Peak power handling W 400
  • Impedance Ohm 4
  • Voice coil Ø 38 (1.5)
  • Frequency response Hz 100 ÷ 10k
  • Magnet size D x d x h mm (in.) 110 x 45 x 20 (4.3 x 1.8 x 0.8)
  • Weight per driver kg (lb.) 1.85 (4)
  • High flux density ferrite magnet
  • Cone Ultra-lightweight pressed paper
€ 149,00 Price incl. VAT
