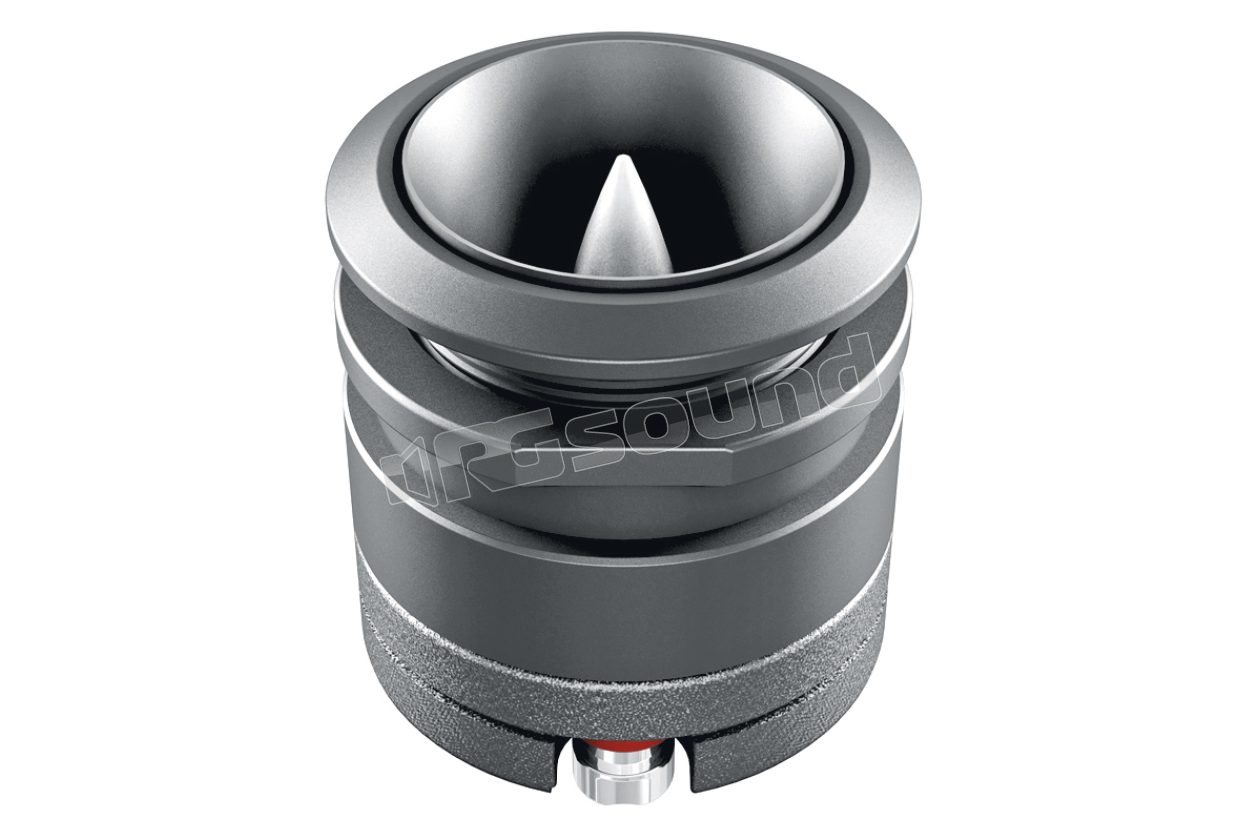

ST 35 High-efficiency 35mm compression tweeter SPL Show

Hertz
Your price:
€ 179,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Super Tweeter
Dome Size
35 mm
MAX Power
100 Watt
Frequency Response
2500-20000 Hertz
Sensitivity
109 dB
Impedance
4 Ohm
Installation Depth
41,5 mm
Tweeter Material
Alluminio

Hertz ST 35 High Efficiency Compression Tweeter 35mm SPL Show

Designed for those who want a system with a disruptive impact, without sacrificing Hertz quality, ST 35 is the ideal solution. ST 35 uses a 35 mm CCAR (Copper Clad Aluminium Ribbon) coil, with extra-light aluminum diaphragm with high heat dissipation, extreme power Neodymium REN® magnet and a highly efficient horn load, for maximum acoustic pressure at high frequencies.
ST 35 Features
  • Pole plates with high thermal dissipation and high magnetic permeability; they provide a continuous and constant flow.
  • REN® Neodymium magnet, for high SPL performance.
  • Coil in aluminum wire with flat cross-section; for exceptional thermal and mechanical capacity.
  • Extra-light aluminum diaphragm.
  • Anodized aluminum body; for maximum damping and elimination of internal resonances.
  • Tin plated terminals, for maximum conductivity.
  • Acoustic compression horn of high efficiency.

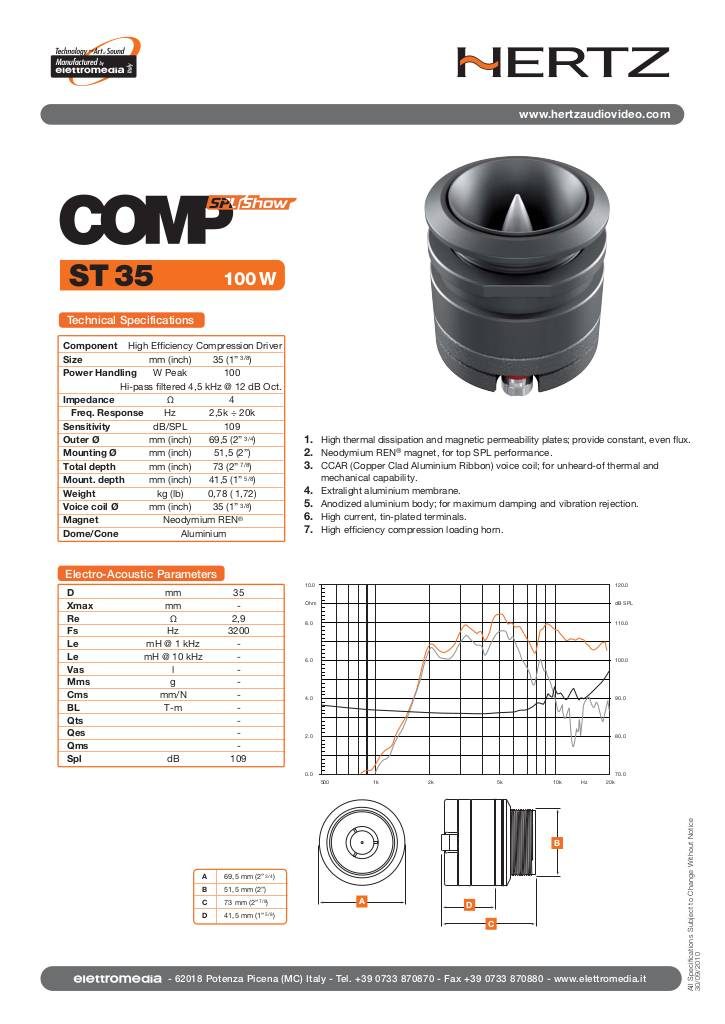

Specifiche - grafico

20110512165740-st35.pdf

Hertz ST 35 Technical Specifications

  • High efficiency compression driver component
  • Dimensions mm 35
  • Power handling
  • W Peak High-pass filter 4.5 kHz @ 12 dB Oct. 100
  • Impedance Ω 4
  • Freq. Response Hz 2.5k ÷ 20k
  • Sensitivity dB/SPL 109
  • External diameter mm 69.5
  • Mounting Ø mm 51.5
  • Total depth mm 73
  • Mounting depth mm 41.5
  • Weight kg 0.78
  • Mobile coil Ø mm 35
  • Magnet Neodymium REN®
  • Dome/Cone Aluminum
€ 179,00 Price incl. VAT
