SQ 25n S

Tec
Your price:
€ 159,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to

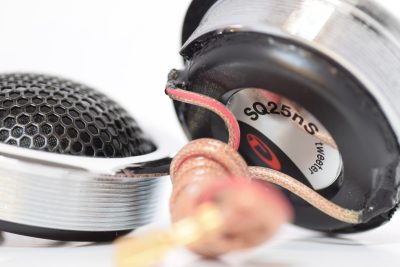

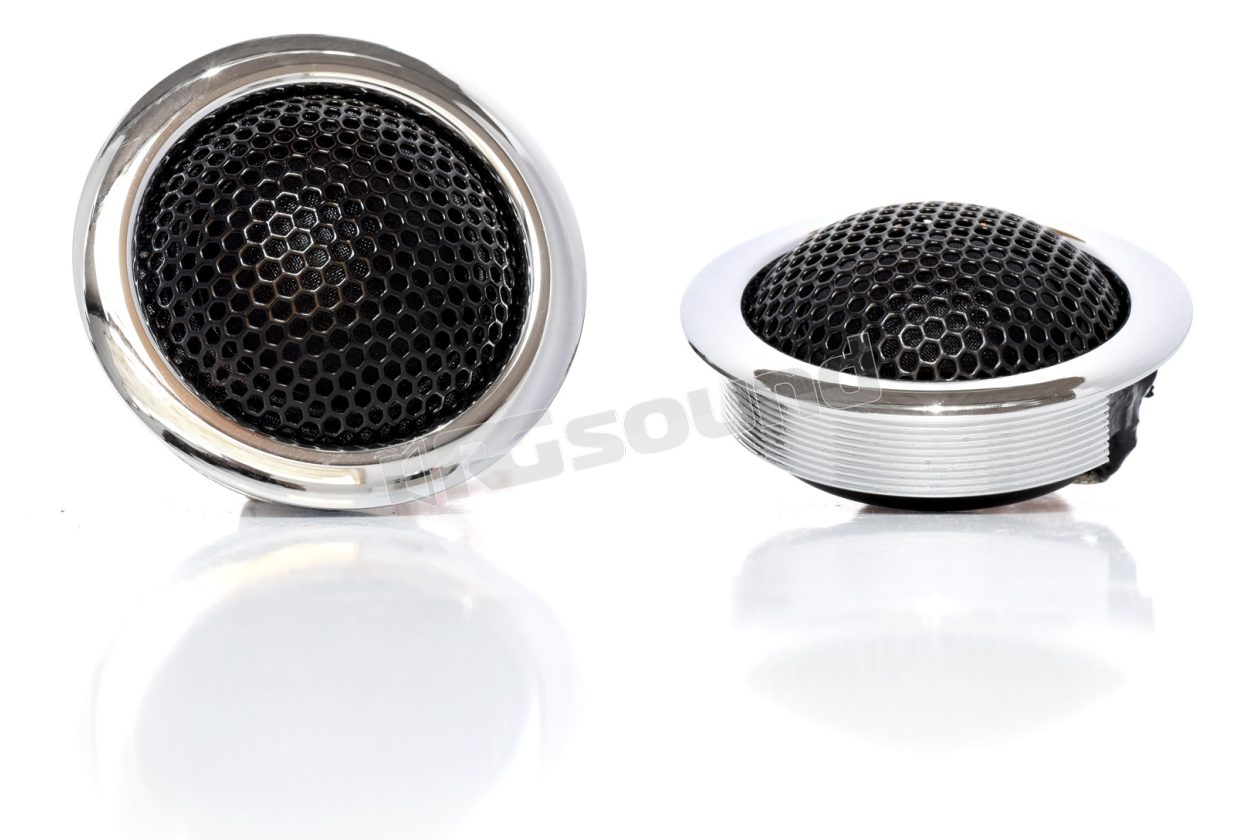

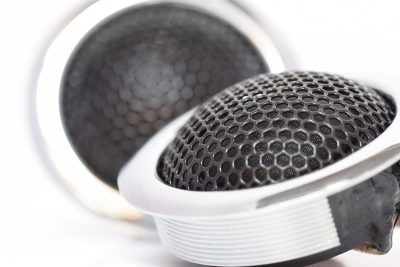

25 mm neodymium tweeter with polished aluminum flange
frequency range 2500 - 20000 hz
max power 80 watt

Silk dome with particularly low weight that allows for high damping and detailed sound reproduction. The particular shape of the dome and the material used in its construction provide excellent frequency response both on-axis and off-axis, unthinkable for any other 20 mm tweeter. High viscosity ferrofluid and stable over time, which allows minimum mechanical damping in the motor.

Designed for Hi-Fi Car applications

Main features:

  • Max Power: 80 Watt
  • RMS Power: 40 Watt
  • Nominal Impedance: 4 Ohm
  • Frequency Response: 2.500 ÷ 20.000 Hz
  • Sensitivity: 91 dB (2.83 V/1 m)
  • Resonance Frequency: 1.750 Hertz
  • Voice Coil Diameter: 25 mm
  • Neodymium magnet
  • Outer Diameter: 50 mm
  • Installation Hole: 43 mm
  • Depth: 14 mm

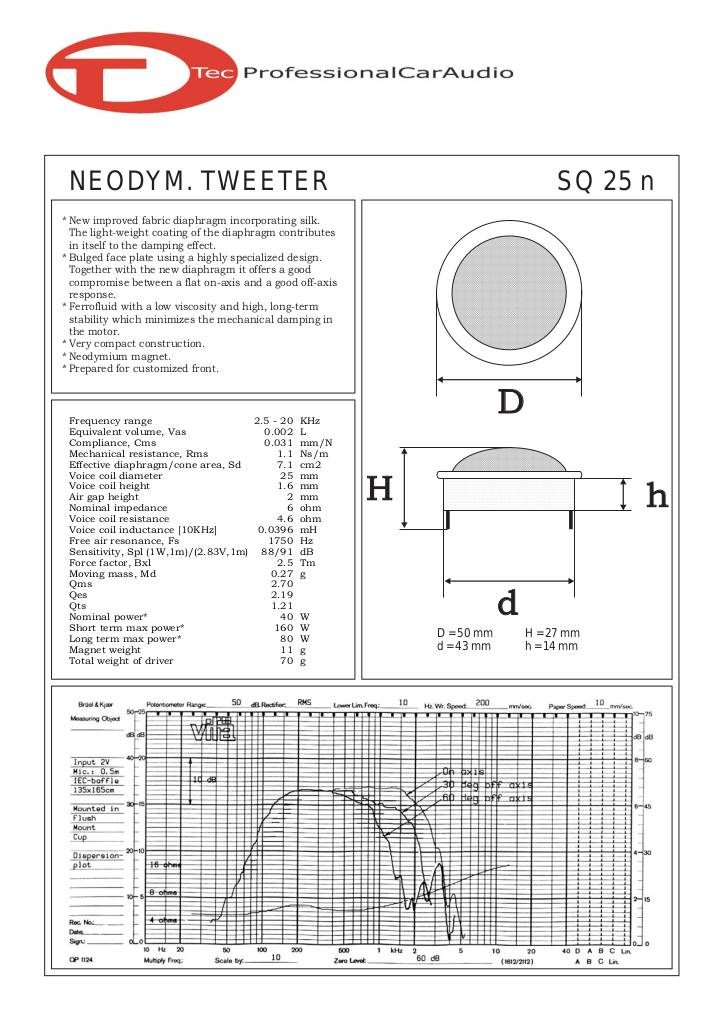

scheda tecnica

20070704233240-sq25n.pdf
