SMC-65Nd

Beyma
Your price:
€ 281,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Compression tweeter
Speaker Size
Other sizes
MAX Power
140 Watt
RMS Power
70 Watt
Frequency Response
600 - 20.000 Hertz
Sensitivity
108 dB
Impedance
8 Ohm
Weight
2,2 Kg
Installation Depth
53 mm
Voice Coil Diameter
72 mm

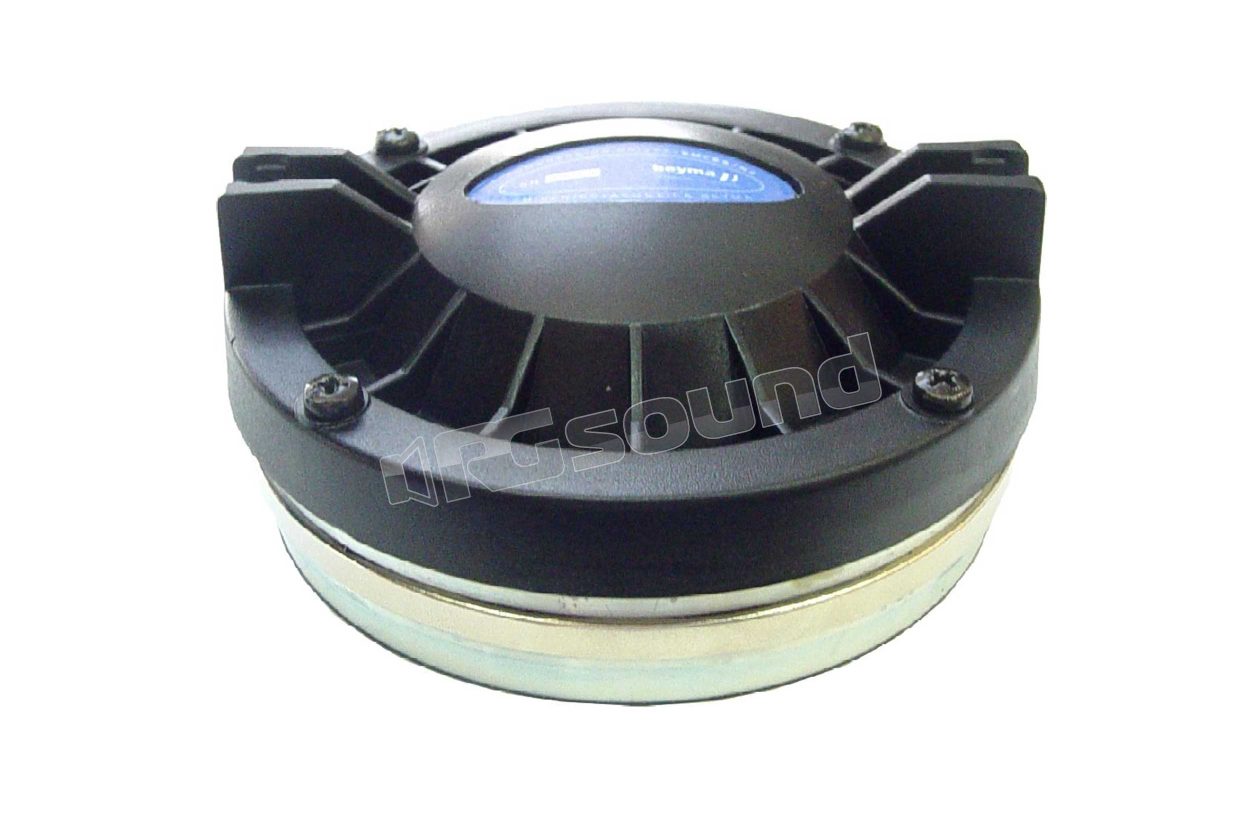

Beyma SMC-65Nd professional high quality compression driver (2"), equipped with pure titanium dome with unique mechanical properties, diaphragm connected to aluminum voice coil, which provides exceptional acoustic pressure over an extremely wide frequency range. Furthermore, the neodymium magnet reduces the net weight by approximately 50% compared to a ferrite model. Finally, the use of a diaphragm centered on the circle allows field replacement without soldering.

Beyma SMC65Nd technical features

Throat diameter 36 mm 1.4 in

Nominal impedance 8 Ohm

Minimum impedance 7.2 ohm @ 3 kHz

Re 5.5 ohm

Power capacity 70 W AES above 1 kHz

Program power 140 W above 1 kHz

Sensitivity 108 dB 1 W @ 1 m coupled to horn

Frequency range 600-20000 Hz

Recom. crossover frequency 800 Hz or higher (12 dB/oct. min slope)

Voice coil diameter 72.2 mm 2.9 in

Flux density 2 T

BL factor 11.36 N/A

Diaphragm material: titanium dome with polyester surround

External diameter 123 mm 4.84 in

Depth 53.5 mm 2.11 in

Four M6 threaded holes. 90º apart on 101.6 mm (4 in) diameter circle.

Mounting hardware is supplied

Net weight 2.2 kg 4.84 lb

Total weight 2.7 kg 5.94 lb

Magnet Neodymium

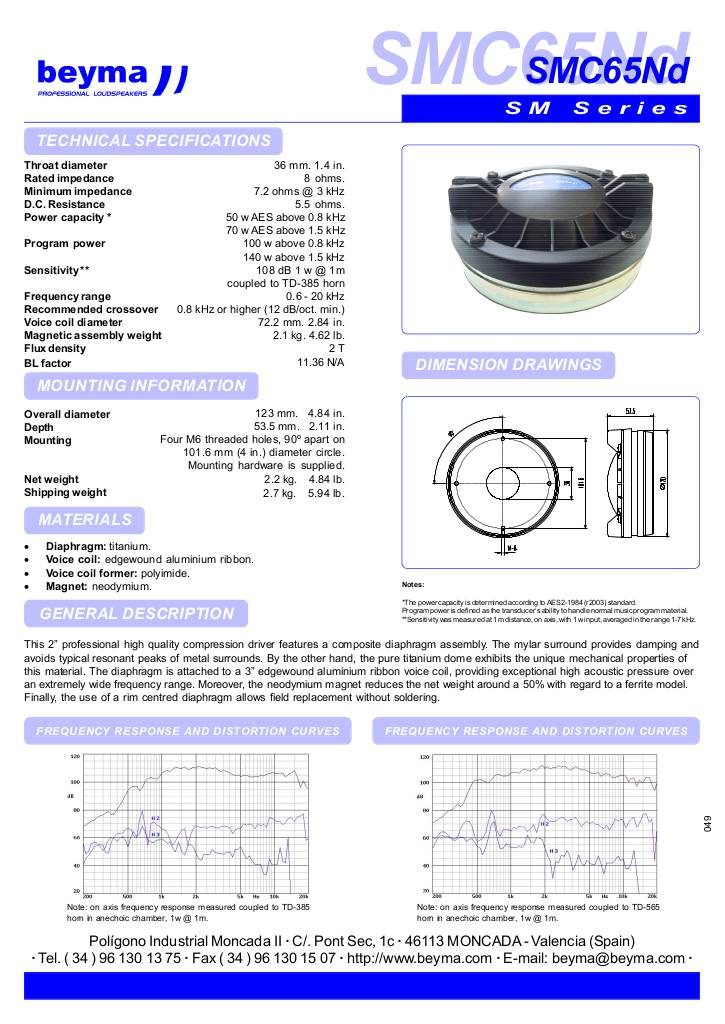

Scheda tecnica

n-20180518161651-smc-65nd.pdf
€ 281,00 Price incl. VAT
