SMC-65

Beyma
Your price:
€ 147,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Compression tweeter
Speaker Size
150 mm
MAX Power
100 Watt
RMS Power
50 Watt
Frequency Response
700 - 18.000 Hertz
Sensitivity
107 dB
Impedance
8 Ohm
Weight
4,2 Kg
Installation Depth
64 mm
Voice Coil Diameter
72 mm

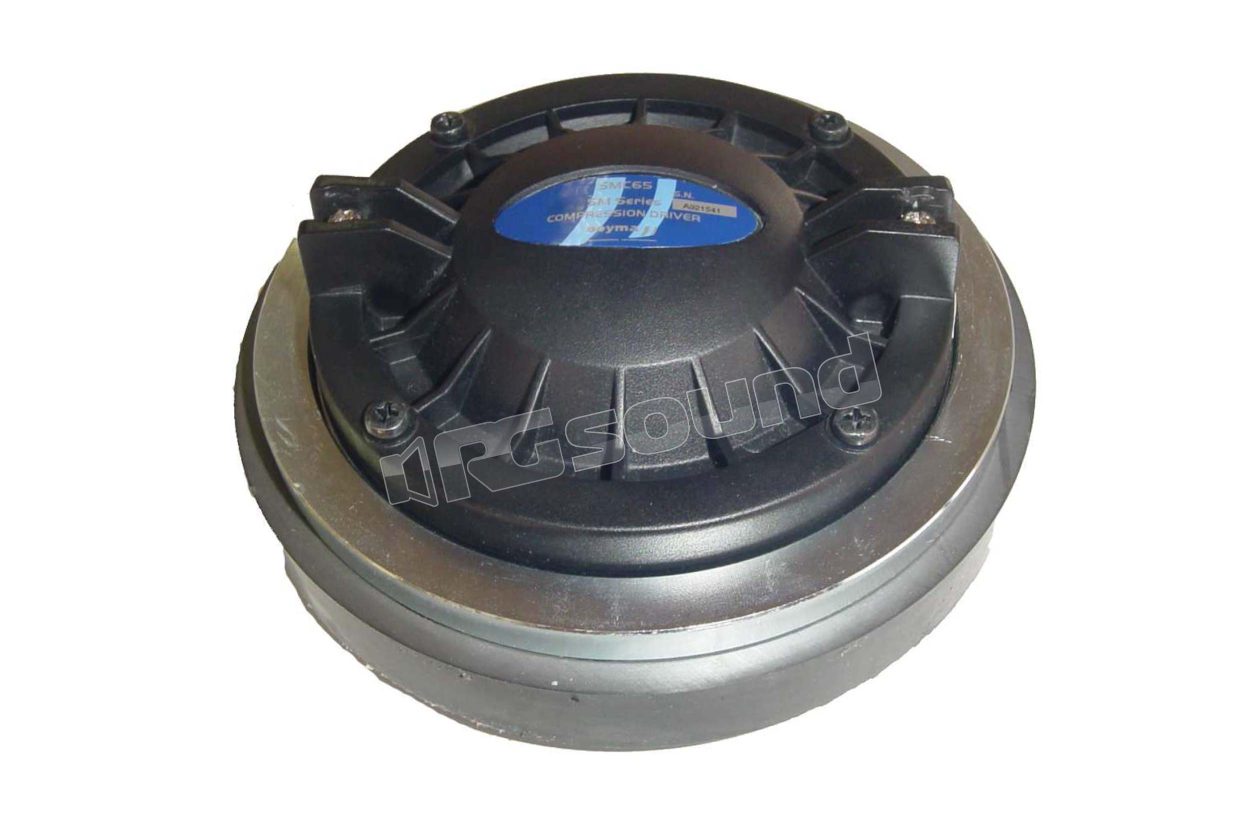

Beyma SMC-65 professional high-quality compression driver (1.4") with titanium diaphragm, aluminum voice coil, ferrite magnet.

SMC65 is equipped with a composite diaphragm assembly, the mylar surround provides damping and prevents the typical resonant peaks of metal edges. Furthermore, the pure titanium dome exhibits the unique mechanical properties of this material.

Beyma SMC65 technical specifications

Throat diameter 36 mm 1.4 in

Nominal impedance 8 Ohm

Minimum impedance 6.9 ohm @ 3.3 kHz

Re 5.5 ohm

Power capacity 50 W AES above 800 Hz

Program power 100 W above 800 Hz

Sensitivity 107 dB 1 W @ 1 m coupled to horn

Frequency range 700-18000 Hz

Recom. crossover frequency 800 Hz or higher (12 dB/oct. min slope)

Voice coil diameter 72.2 mm 2.9 in

Flux density 1.55 T

BL factor 8.8 N/A

Diaphragm material Titanium dome with polyester surround

External diameter 156 mm 6.14 in

Depth 64 mm 2.52 in

Four M6 threaded holes. 90º apart on 101.6 mm (4 in) diameter circle.

Mounting hardware is supplied

Net weight 4.2 kg - 9.26 lb

Total weight 4.7 kg 10.34 lb

Magnet Ferrite

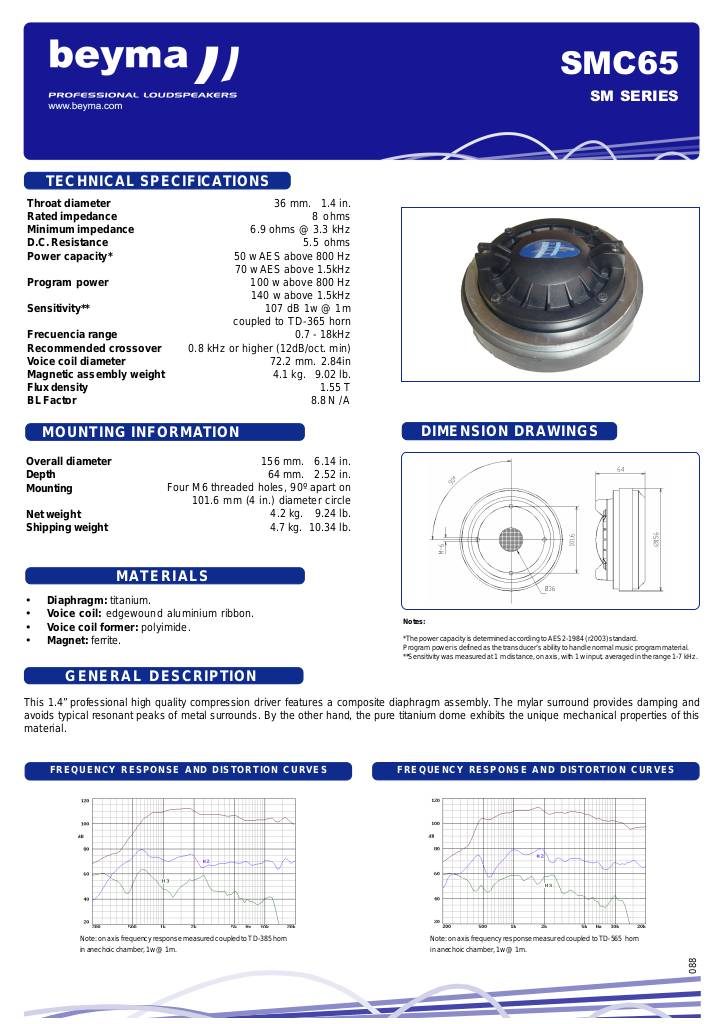

Scheda tecnica

n-20180518155621-smc-65.pdf
€ 147,00 Price incl. VAT
