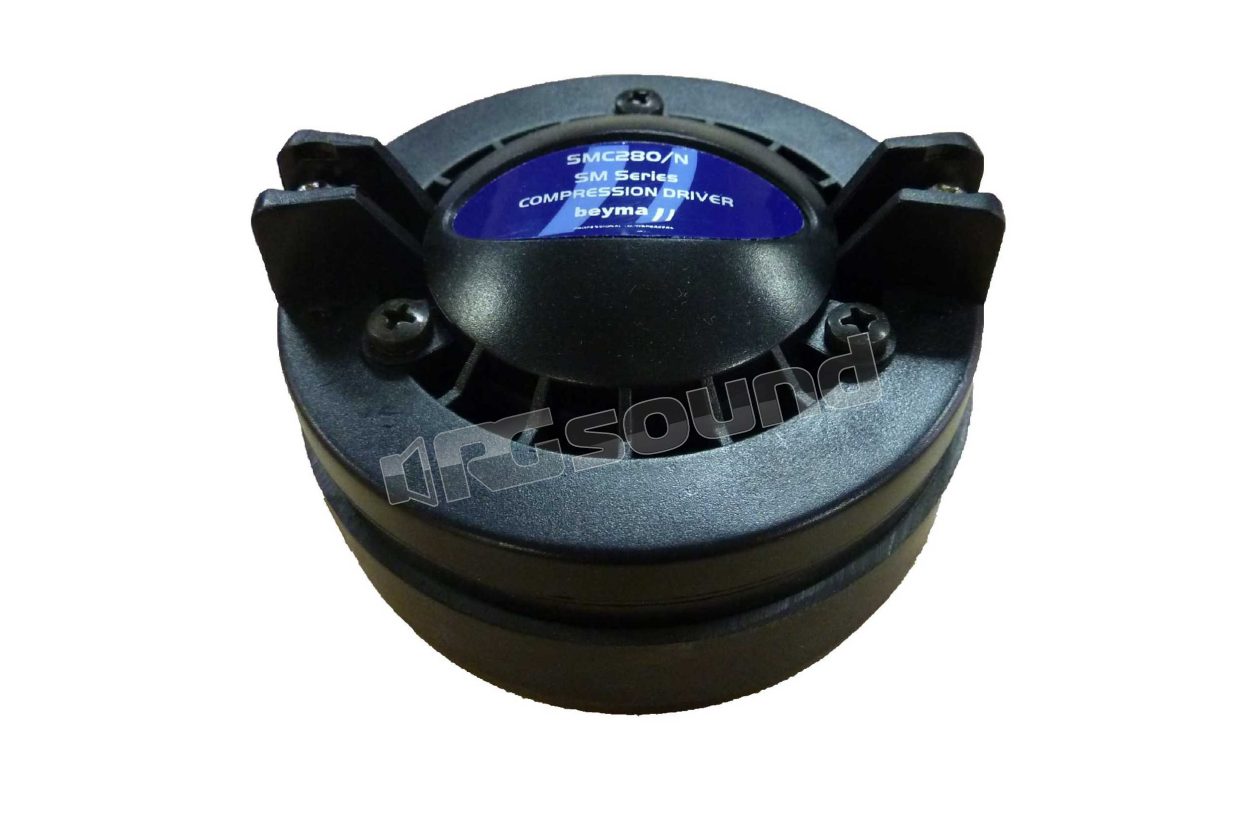

SMC-280/N Compression driver with 50 W RMS power and high sensitivity

Beyma
Your price:
€ 65,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Compression tweeter
Speaker Size
100 mm
MAX Power
100 Watt
RMS Power
50 Watt
Frequency Response
800 - 18.000 Hertz
Sensitivity
105 dB
Impedance
8 Ohm
Weight
1,3 Kg
Installation Depth
53 mm
Voice Coil Diameter
44 mm

Beyma SMC-280/N Compression driver with 50 W RMS power and high sensitivity: 105 dB

Extended frequency range: 0.8 - 18 kHz, low harmonic distortion, 1.75" aluminum voice coil, lightweight polyester diaphragm and ferrite magnet.

Three M5 threaded holes. Spaced 120º on a circle of 57 mm (2.24") diameter. Two M5 threaded holes. 180º apart from each other on a circle of 76.2 mm (3") diameter. Mounting hardware is included

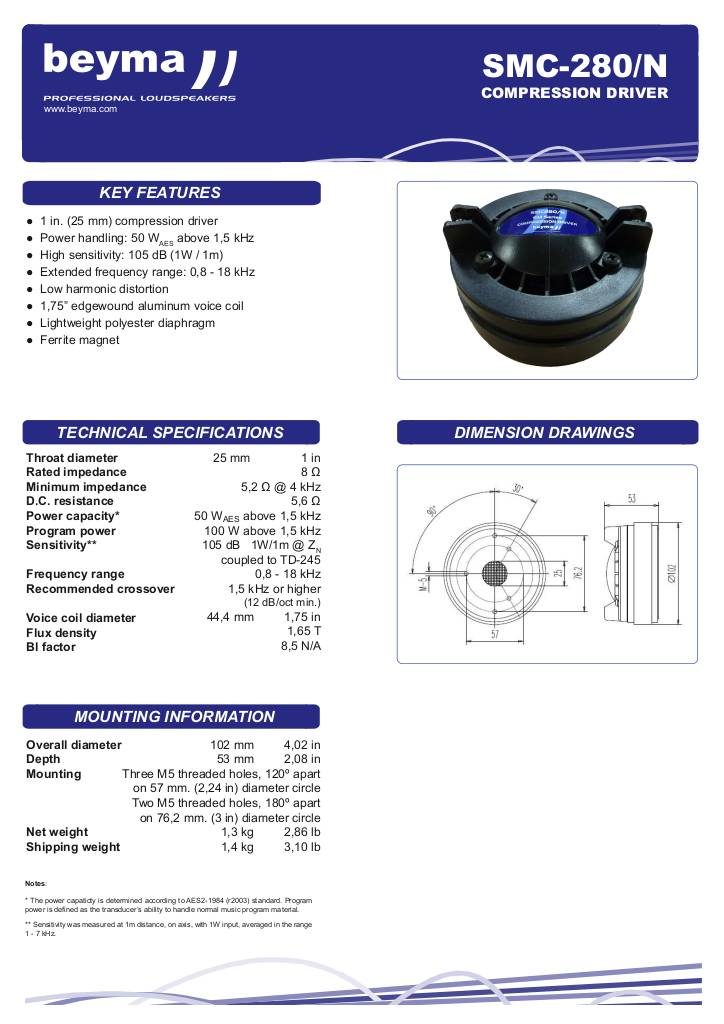

Scheda tecnica

n-20180517162406-smc-280-n.pdf

Beyma SMC280/N Technical Specifications

  • Throat diameter 25 mm 1 in
  • Nominal impedance 8 Ohm
  • Minimum impedance 5.2 ohm @ 4 kHz
  • Re 5.6 ohm
  • Power 50 W AES above 1.5 kHz
  • Program power 100 W above 1.5 kHz
  • Sensitivity 105 dB 1 W @ 1 m coupled to horn
  • Frequency range 800-18000 Hz
  • Recommended crossover frequency 1.5 kHz or higher (minimum slope 12dB/oct)
  • Voice coil diameter 44.3 mm 1.75 inches
  • Flux density 1.65 T
  • BL factor 8.5 N / A
  • Diaphragm material Polyester
  • External diameter 102 mm 4 in
  • Depth 53 mm 2.08 in
  • Net weight 1.3 kg 2.86 lb
  • Total weight 1.4 kg 3.1 lb
€ 65,00 Price incl. VAT
