SMC-225Nd

Beyma
Your price:
€ 155,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Compression tweeter
Speaker Size
80 mm
MAX Power
80 Watt
RMS Power
40 Watt
Frequency Response
800 - 20.000 Hertz
Sensitivity
108 dB
Impedance
8 Ohm
Weight
0,7 Kg
Installation Depth
57 mm
Voice Coil Diameter
44 mm

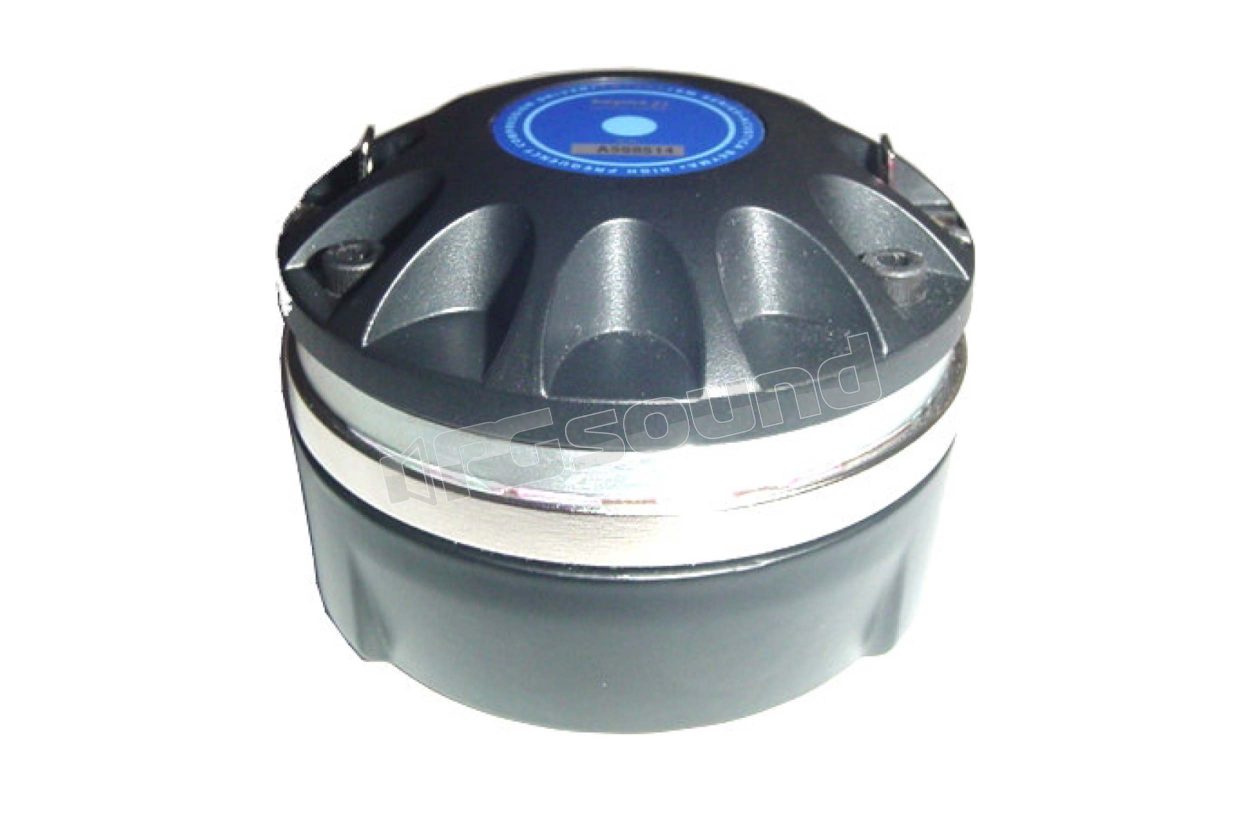

Beyma SMC-225Nd driver with mylar diaphragm, aluminum voice coil and neodymium magnet.

This compression driver is equipped with a lightweight mylar diaphragm that provides excellent high frequency response with low distortion. Other key features of this model are its excellent sensitivity (108 dB) and its reduced weight, thanks to the use of a neodymium magnet. Furthermore the diaphragm-membrane assembly is easily replaceable.

Beyma SMC225Nd technical features

Throat diameter 25 mm 1 in

Nominal impedance 8 Ohm

Minimum impedance 5.5 ohm @ 4.5 kHz

Re 5.6 ohm

Power capacity 40 W AES above 1.5 kHz

Program power 80 W above 1.5 kHz

Sensitivity 108 dB 1 W @ 1 m coupled to horn

Frequency range 800-20000 Hz

Recom. crossover frequency 1.5 kHz or higher (12dB/oct min slope)

Voice coil diameter 44.3 mm 1.75 in

Flux density 1.8 T

BL factor 8 N/A

Diaphragm material Polyester

External diameter 80 mm 3.15 in

Depth 57 mm 2.24 in

Three M4 threaded holes. 120º apart on 57 mm (2.24 in) diameter circle.

Mounting hardware is supplied

Net weight 0.7 kg 1.54 lb

Total weight 0.8 kg 1.76 lb

Magnet Neodymium

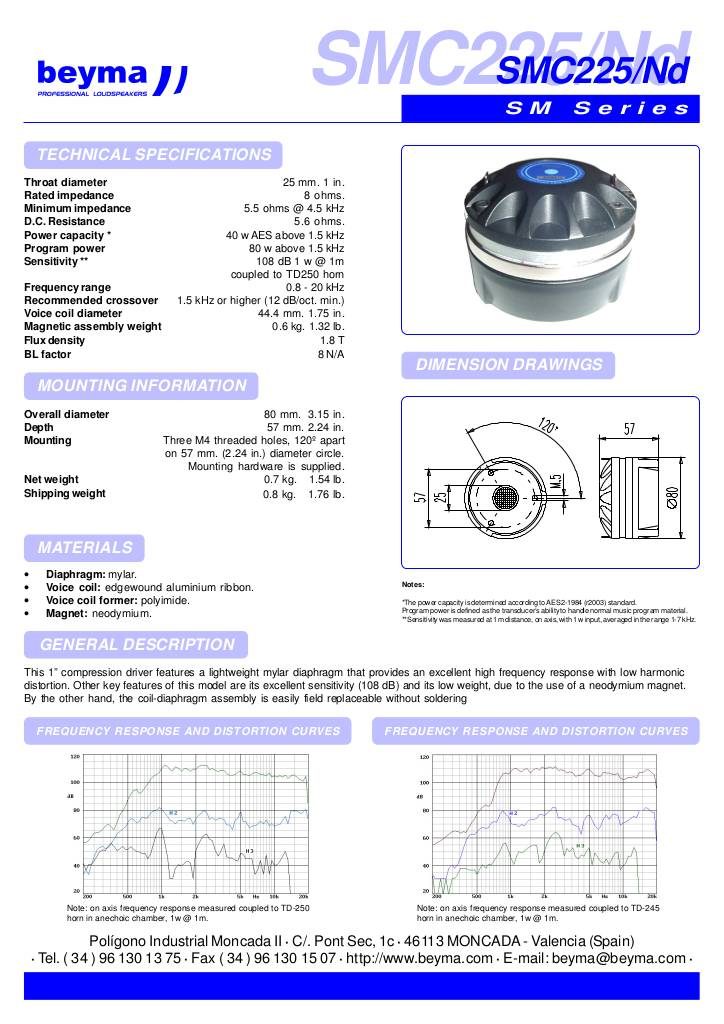

Scheda tecnica

n-20180518125701-smc-225nd.pdf
€ 155,00 Price incl. VAT
