S165.300 top-of-the-line 3-way kit

BLAM
Your price:
€ 1390,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
3-way separate kit
Woofer Size
165 mm
Midrange Size
80 millimetri
Tweeter Size
20 millimetri
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
50 - 43.000 Hertz
Sensitivity
93,2 dB
Woofer Material
Fibra di carbonio

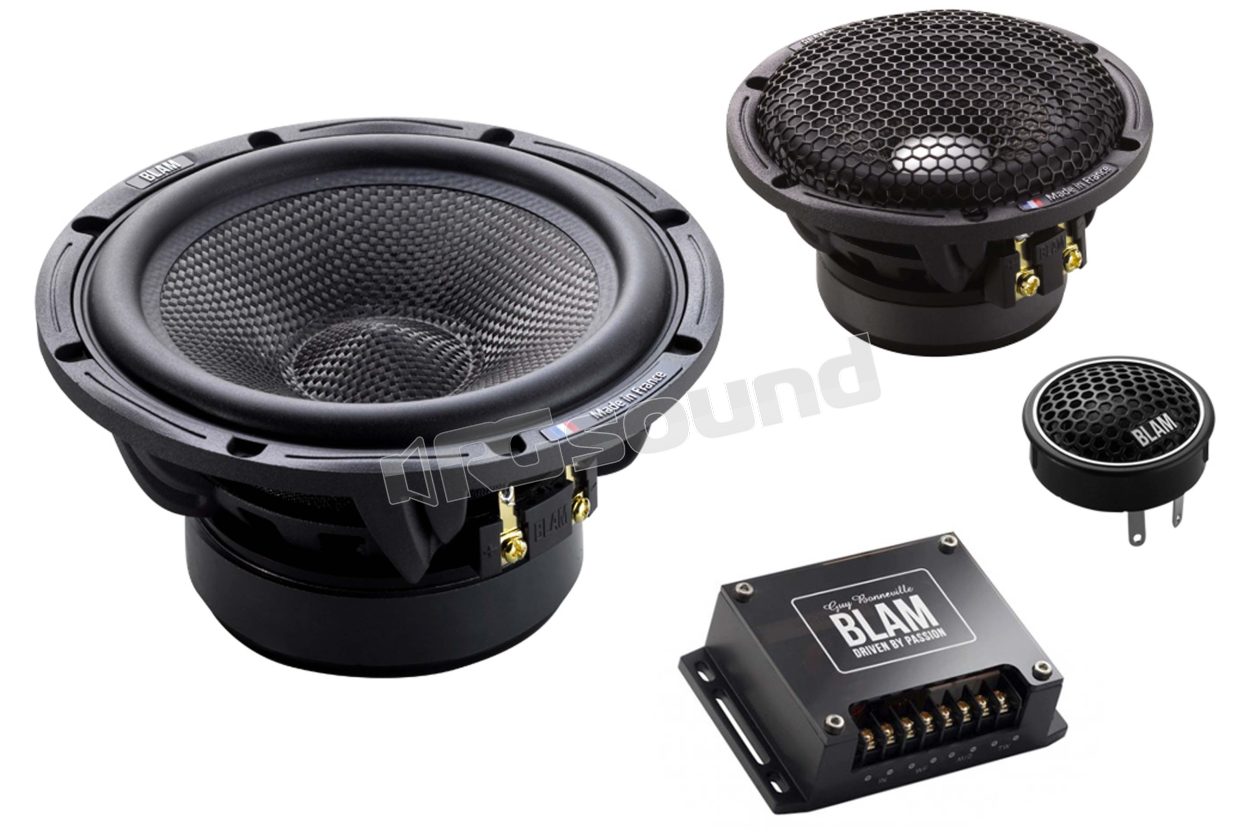

BLAM S 165.300 3-way sound quality speaker system, composed of: pair of 165 mm (6.5") woofers, pair of 80 mm midranges, pair of 20 mm (3/4") tweeters with soft dome and pair of external crossovers.

BLAM S 165.300 is composed of:

2x Woofer WS 6.300
Die-cast aluminum basket
Ultra-rigid carbon fiber cone
Long-lasting conex spider
38 mm coil, fiberglass matrix
Oversized 100 mm x 20 mm magnet system
Machined aluminum phase plug
Gold-plated terminals

2x Midrange MS 3.55
Die-cast aluminum basket
Ultra-rigid carbon fiber cone
NBR surround
Long-lasting "conex" spider
20 mm coil, fiberglass former
Oversized 55 x 10 mm magnet system
Aluminum dust cap
Gold-plated terminals

2x Tweeter TS 20 HR
Compact installation dimensions
High-efficiency magnet (N38H neodymium)
Ferrofluuid for maximum power

2x Crossover BFX 03
High-quality metallized polyester caps
Air coils DCR

The SIGNATURE series by Blam is born

Signature means "Signature" but also "Distinctive Style" and it is a compelling word.

From products called "Signature" specialists expect simply unique implementations and performance, so it is a word to be used with caution. BLAM, strong from considerable success achieved at launch, has decided to invest further in quality to position itself among the very few brands in car audio that can offer ultra-professional speakers.

The first decision was to bring ALL production from China to the newly built artisanal laboratory in France. Careful assembly and tolerances within the decibel.

The second decision was to use exclusively European-made components.

The third decision was to "delete" all pre-existing tweeters (a shame, they were exceptional!) to create five new models that would raise the bar even higher.

100% Made in France, 100% artisanal construction, 100% top performance.

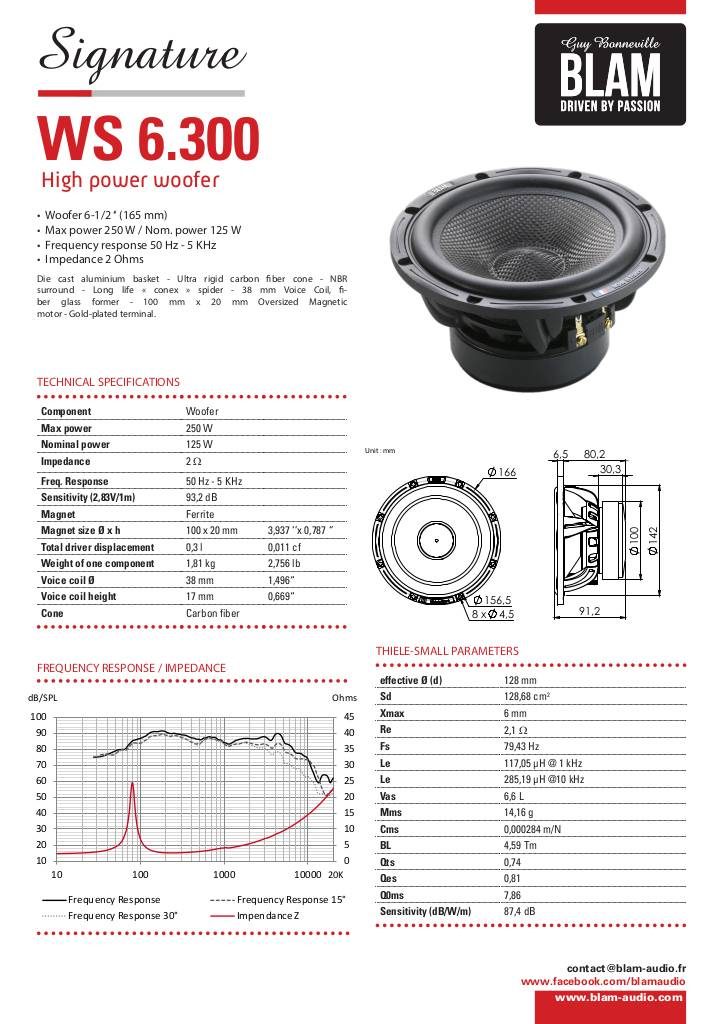

Scheda tecnica woofer

n-20190812163811-ws-6300-technical-sheet-blam-signature.pdf

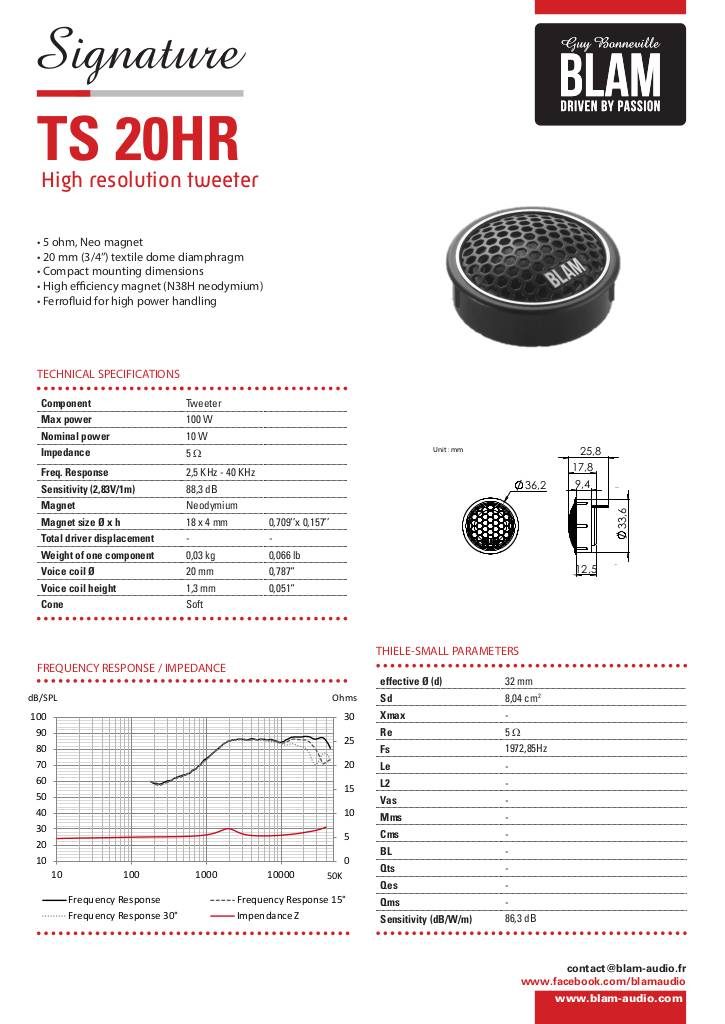

Scheda tecnica tweeter

n-20190812163811-ts-20hr-technical-sheet-blam-signature.pdf

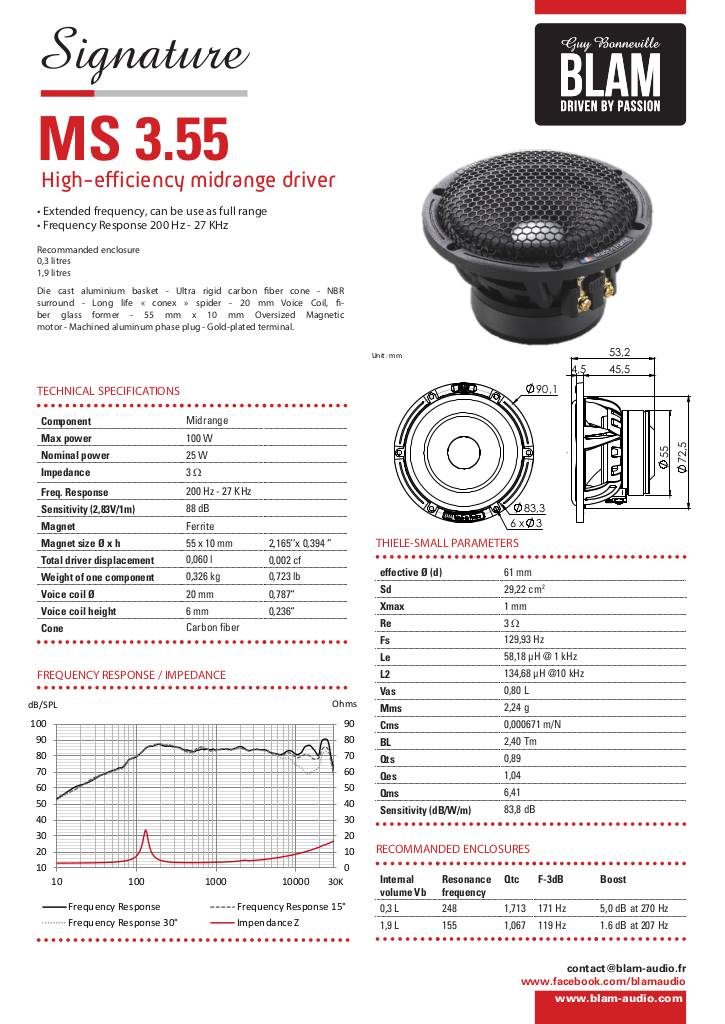

Scheda tecnica midrange

n-20190812163811-ms-355-technical-sheet-blam-signature.pdf

BLAM S 165.300 technical specifications of the components:

WS 6.300 HIGH POWER WOOFER
6.5" (165 mm) woofer
Max power 250 W / Nom. power 125 W
Frequency response 50 Hz - 5 kHz
Sensitivity 93.2 dB
Impedance 2 Ohm
MS 3.55 HIGH EFFICIENCY MIDRANGE DRIVER
Extended frequency 80 mm (3") midrange
Frequency response 200 Hz - 27 kHz
TS 20 HR HIGH RESOLUTION TWEETER
20 mm (3/4'') textile dome diaphragm
Frequency response 2.5 kHz - 43 kHz
Sensitivity (2.83 V / 1m) 88.3 dB
Impedance 5 Ohm
BFX 03 AUDIOPHILE GRADE CROSSOVER
6/12/12 dB / octave 2+1 ways audiophile grade crossover
Crossover point: woofer / midrange: 300 Hz
Super tweeter hi-pass: 10 kHZ
€ 1390,00 Price incl. VAT
