S 6X Pair of 165 mm two-way coaxial speakers

Helix

Discontinued

Your price:
€ 187,00
Price per pair (VAT included)
Type
Coaxial
Speaker Size
165 mm
Coaxial Type
2-way
Frequency Response
50 - 25.000 Hertz
MAX Power
160 Watt
RMS Power
80 Watt
Sensitivity
90 dB
Impedance
4 Ohm
Woofer Material
Cellulosa e fibra di basalto
Tweeter Material
Cupola in seta

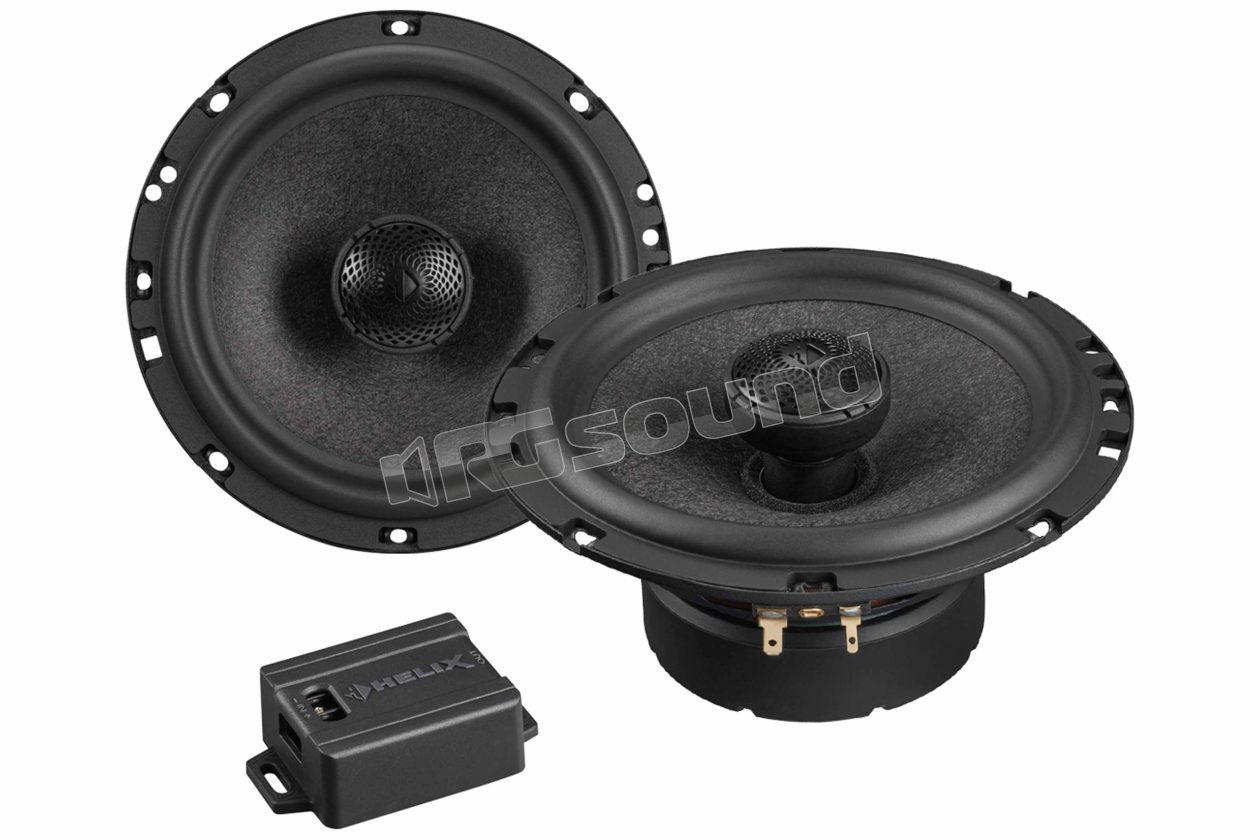

Helix S 6X Pair of 165 mm two-way coaxial speakers

6.5" / 165 mm mid-woofer with new composite cone in paper and basalt fiber - a perfect combination of reduced weight, high rigidity and internal damping. Specially shaped rubber frame for greater effective cone area and greater maximum excursion. 1" / 25 mm tweeter with silk dome coating for balanced and natural sound reproduction and minimal compression effects. Individual HELIX basket with additional ventilation holes for better coil cooling and high power handling. Separate inline crossover with 6/12 dB slope and integrated tweeter protection.

Scheda tecnica

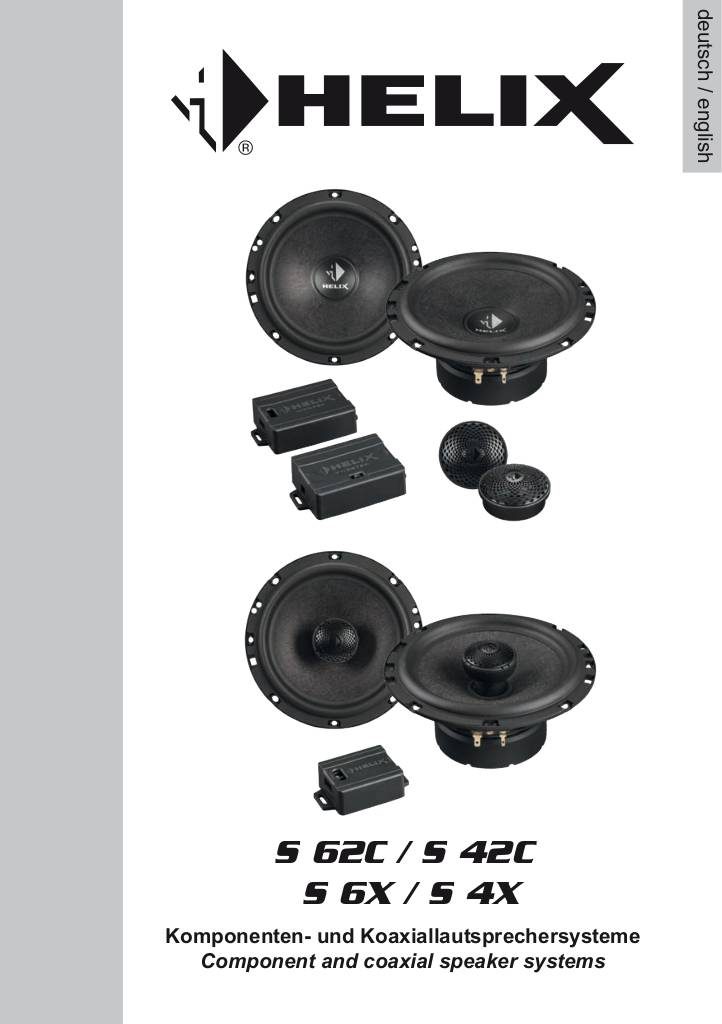

n-20191107160509-ba-s-series-speaker-2019.pdf

Helix S 6X Technical specifications

  • RMS / Max. Power 80/160 Watt
  • Frequency response 50 Hz - 25,000 Hz
  • Impedance 4 Ω
  • Efficiency 1 W / 1 m 90 dB
  • Cone material
    • TW: Silk coated dome
    • W: Basalt fiber paper compound
  • Separate crossover, 6/12 dB slope
  • External diameter 165 mm / 6.50"
  • Installation diameter 143 mm / 5.63"
  • Installation depth 65 mm / 2.56"
  • Crossover dimensions 58 x 49 x 24 mm / 2.32 x 1.96 x 0.94"
Discontinued
