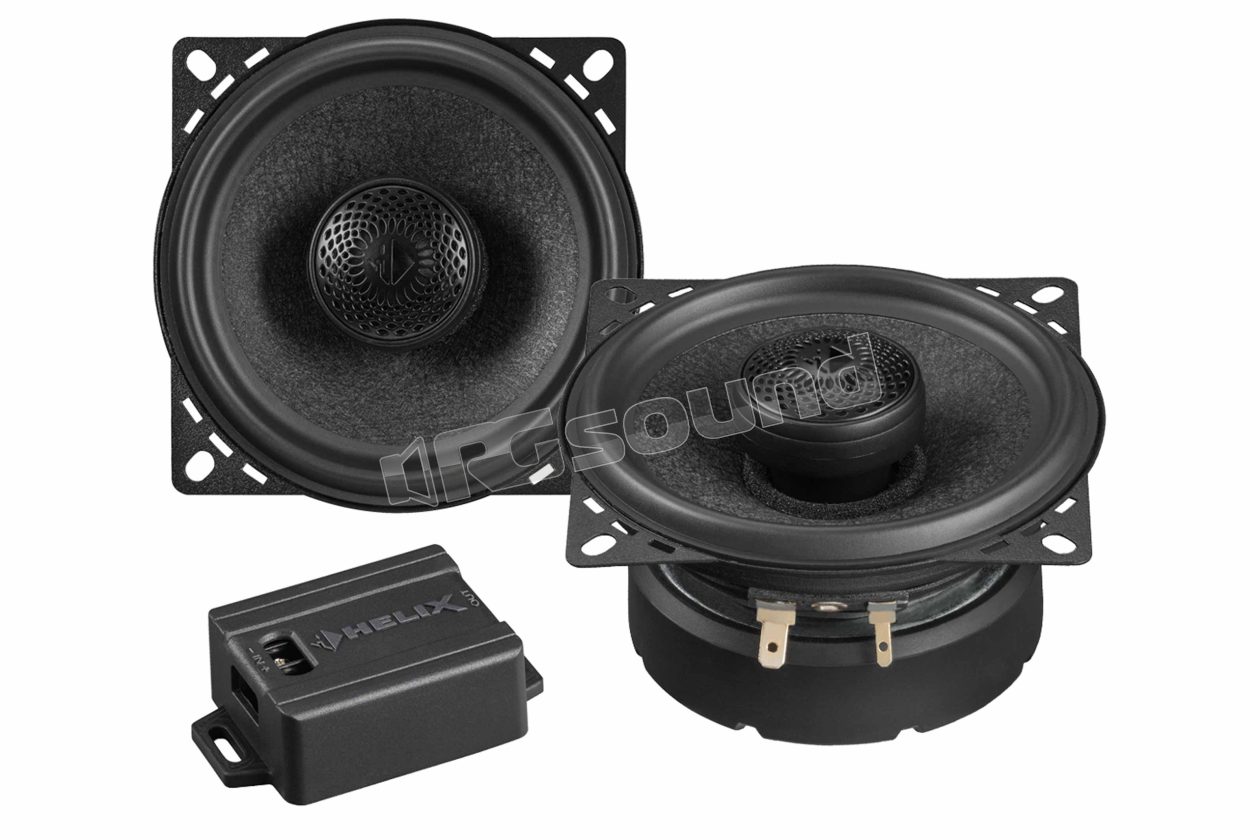

S 4X 10 cm coaxial speakers with paper and basalt fiber cone

Helix

Discontinued

Your price:
€ 149,00
Price per pair (VAT included)
Type
Coaxial
Speaker Size
100 mm
Coaxial Type
2-way
Frequency Response
80 - 25.000 Hertz
MAX Power
120 Watt
RMS Power
60 Watt
Sensitivity
89 dB
Impedance
4 Ohm
Woofer Material
Cellulosa e fibra di basalto
Tweeter Material
Cupola in seta

Helix S 4X Coaxial 10 cm paper cone and basalt fiber

4" / 100 mm midwoofer with new composite cone in paper and basalt fiber - a perfect combination of reduced weight, high rigidity and internal damping. Special shaped rubber surround for greater effective cone area and greater maximum excursion. 0.75" / 19 mm tweeter with silk-coated dome for balanced and natural sound reproduction and minimal compression effects. Individual HELIX basket with additional ventilation holes for better voice coil cooling and high power handling. Separate inline crossover with 6/6 dB slope and integrated tweeter protection.

Scheda tecnica

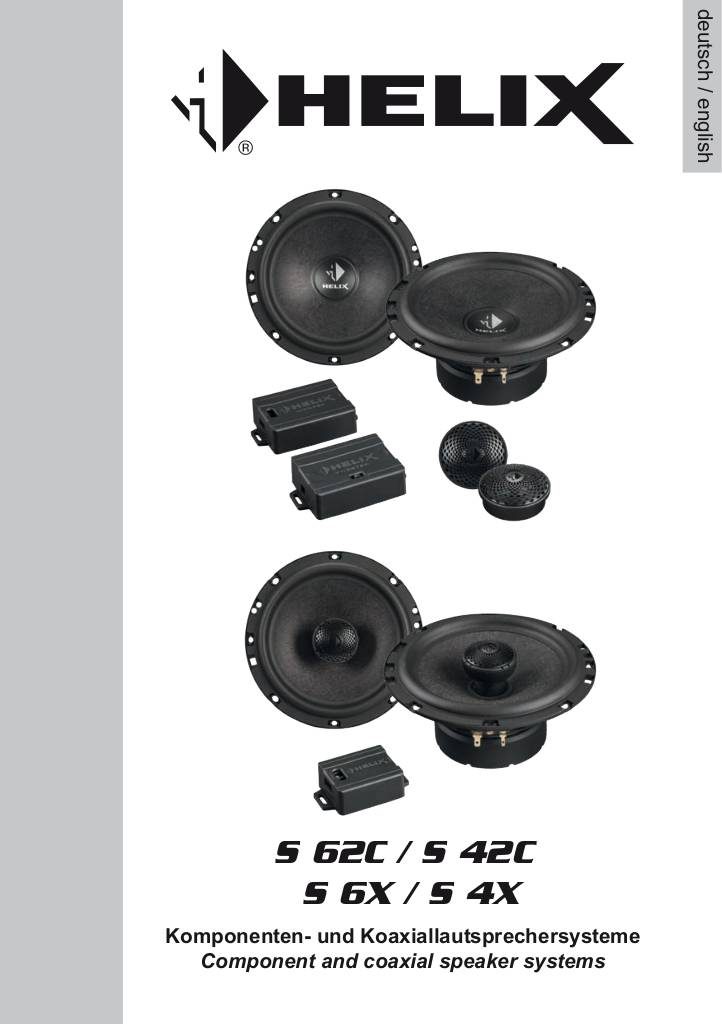

n-20191107161451-ba-s-series-speaker-2019.pdf

Helix S 4X Technical Specifications

  • RMS / max. Power 60/120 Watts
  • Frequency Response 80 Hz - 25,000 Hz
  • Impedance 4 Ω
  • Efficiency 1 W / 1 m 89 dB
  • Separate Crossover, 6/6 dB slope
  • External Diameter 102 mm / 4.01"
  • Installation Diameter 92.3 mm / 3.63"
  • Installation Depth 46.5 mm / 1.83"
  • Crossover Dimensions 58 x 49 x 24 mm / 2.32 x 1.96 x 0.94"
Discontinued
