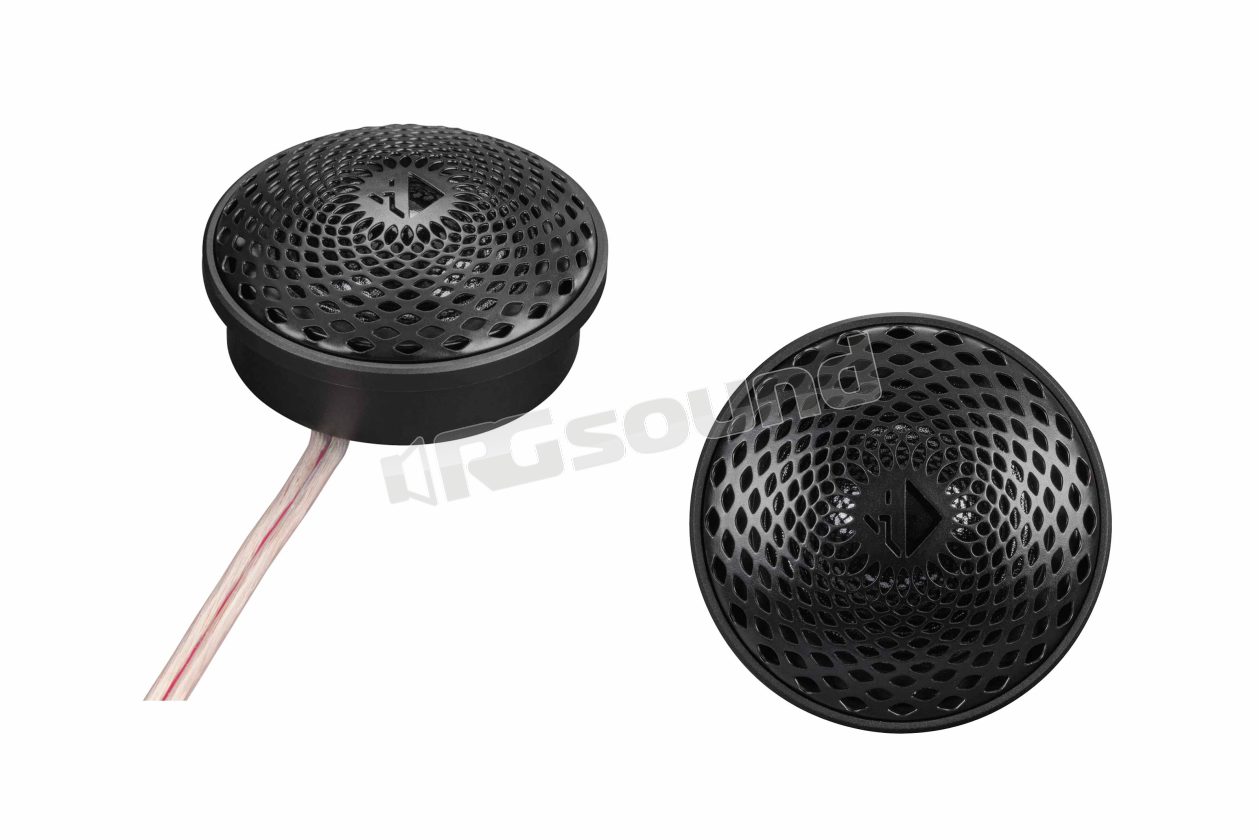

S 1T 25mm tweeter with silk dome

Helix
Your price:
€ 93,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Tweeter
Dome Size
25 mm
MAX Power
200 Watt
RMS Power
100 Watt
Frequency Response
2.500 - 25.000 Hertz
Sensitivity
91 dB
Impedance
4 Ohm
Outer Diameter
51 mm
Installation Depth
45 mm
Tweeter Material
Cupola in seta

Helix S 1T Tweeter 25mm with silk dome

Tweeter for quality sound. The coated silk dome and the highly efficient neodymium magnet of the S 1T tweeters imply unique sensitivity in high frequency reproduction and crystal clear sound. Anodized aluminum body with removable grille, which offers optimal protection of the dome and stands out for the exclusive HELIX design. These tweeters can be extracted from the mounting bracket. Therefore, the already very compact dimensions can be reduced and offer optimal conditions for easy integration in the vehicle.

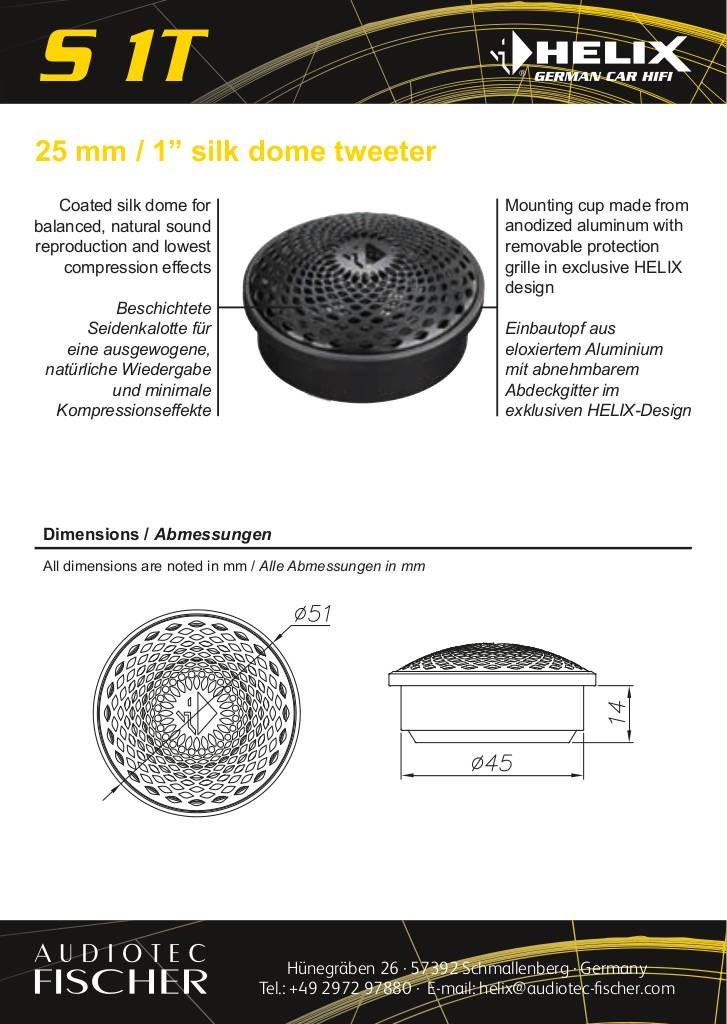

Scheda tecnica

n-20191106151019-db-helix-s-1t.pdf

Helix S 1T Technical specifications

  • RMS / max. power P 100/200 watts (highpass > 3.000 Hz at 12 dB / octave)
  • Impedance 4 Ω
  • DC resistance Re 3.4 Ω
  • Frequency response 2.500 Hz - 25.000 Hz
  • Resonance frequency Fs 1.600 Hz
  • Efficiency 1 W / 1 m SPL 91 dB
  • Voice coil diameter ø 25 mm
  • Cone area Sd 4.9 cm²
  • Moving mass Mms 0.3 g
  • Cone material Coated silk dome
  • External diameter ø 51 mm / 2.0 "
  • Installation diameter ø 45 mm / 1.77 "
  • Installation depth 14 mm / 0.55 "
  • Recommended crossover frequencies for the highpass
  • Slope Minimum crossover frequency
  • 6 dB / Octave 4.000 Hz
  • 12 dB / Octave > 3.000 Hz
  • 24 dB / Octave > 2.500 Hz
