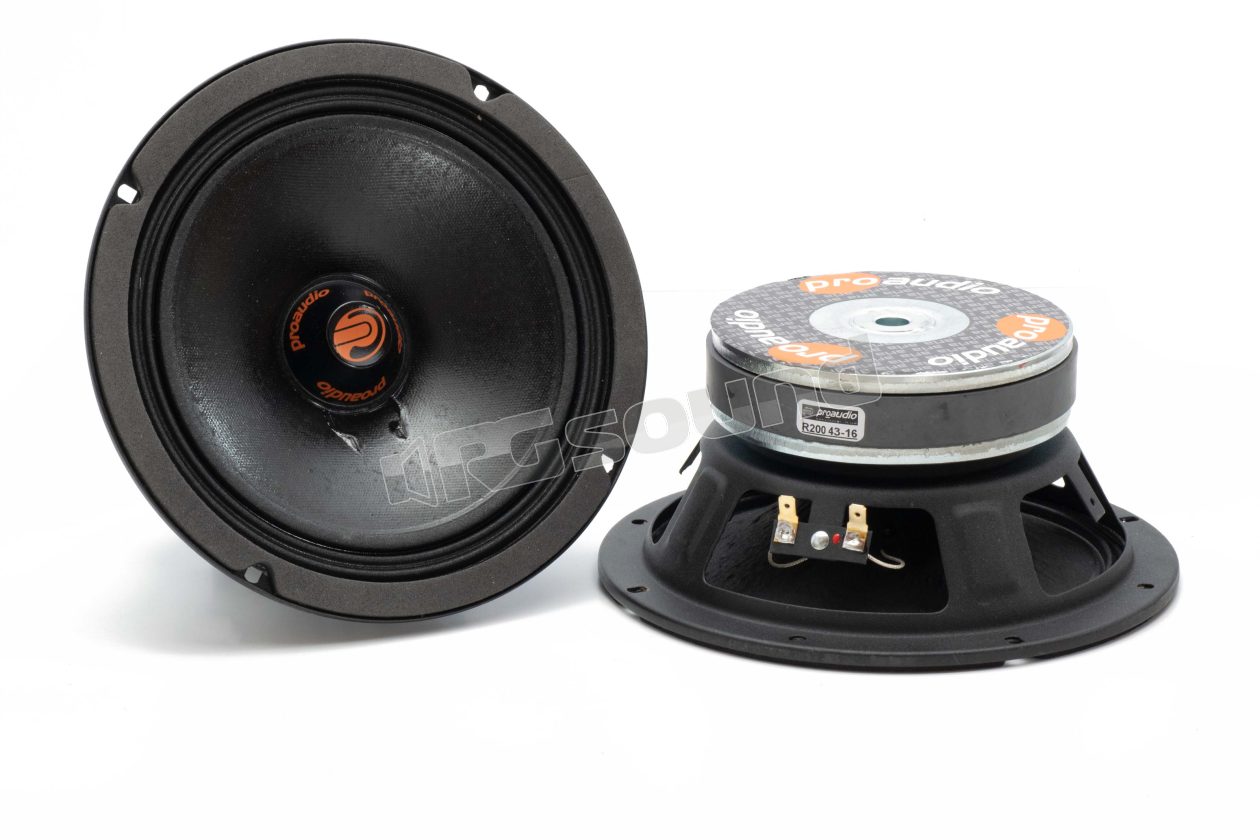

R200 high-efficiency 20cm extended range

Proaudio
Your price:
€ 199,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
200 mm
MAX Power
400 Watt
RMS Power
200 Watt
Sensitivity
98 dB
Impedance
4 Ohm
Weight
3 Kg
Installation Depth
95 mm

Proaudio R200 component with excellent performance, maximum acoustic load versatility, extremely extended frequency response, free from structural resonances thanks to the particular cellulose pulp diaphragm treated with damping vinyl resins.

R200 Features

Basket: textured black painted iron scratch-resistant
Magnetic group: ferrite
Coil: aluminum winding, aluminum support
Coil diameter: 38 mm
Centerpiece: Nomex Fabric
Suspension: nomex
Cone: cellulose fibers treated with vinyl resins, water-repellent
Power handling: 200 Watt RMS | 400 Watt Max
Impedance: 4 ohm
Efficiency: 98 dB

INSTALLATION RECOMMENDATIONS

Ideal for high efficiency custom door projects with two or more units. Glass fiber supports strongly recommended.
Multi-amplification necessary, especially if the goal is high pressure.
We recommend the 150Hz HP electronic filter.

Magnet with demodulating ring, phase-correcting dust cover in polycarbonate, grilles available upon request.

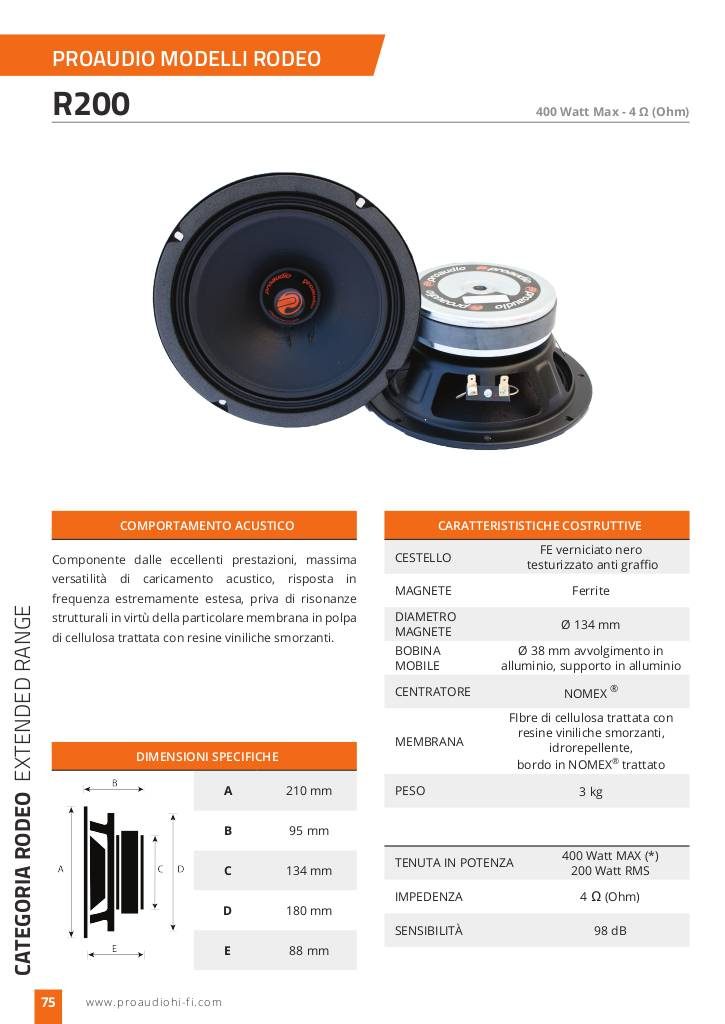

Scheda tecnica

20141224170323-proaudio-scheda-r200.pdf
€ 199,00 Price incl. VAT
