R-S65C

Alpine
Your price:
€ 299,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
65 - 29.000 Hertz
Woofer Size
165 mm
Tweeter Size
58 millimetri
MAX Power
300 Watt
RMS Power
100 Watt
Sensitivity
88 dB
Impedance
4 Ohm
Woofer Material
HARM
Tweeter Material
Neodimio

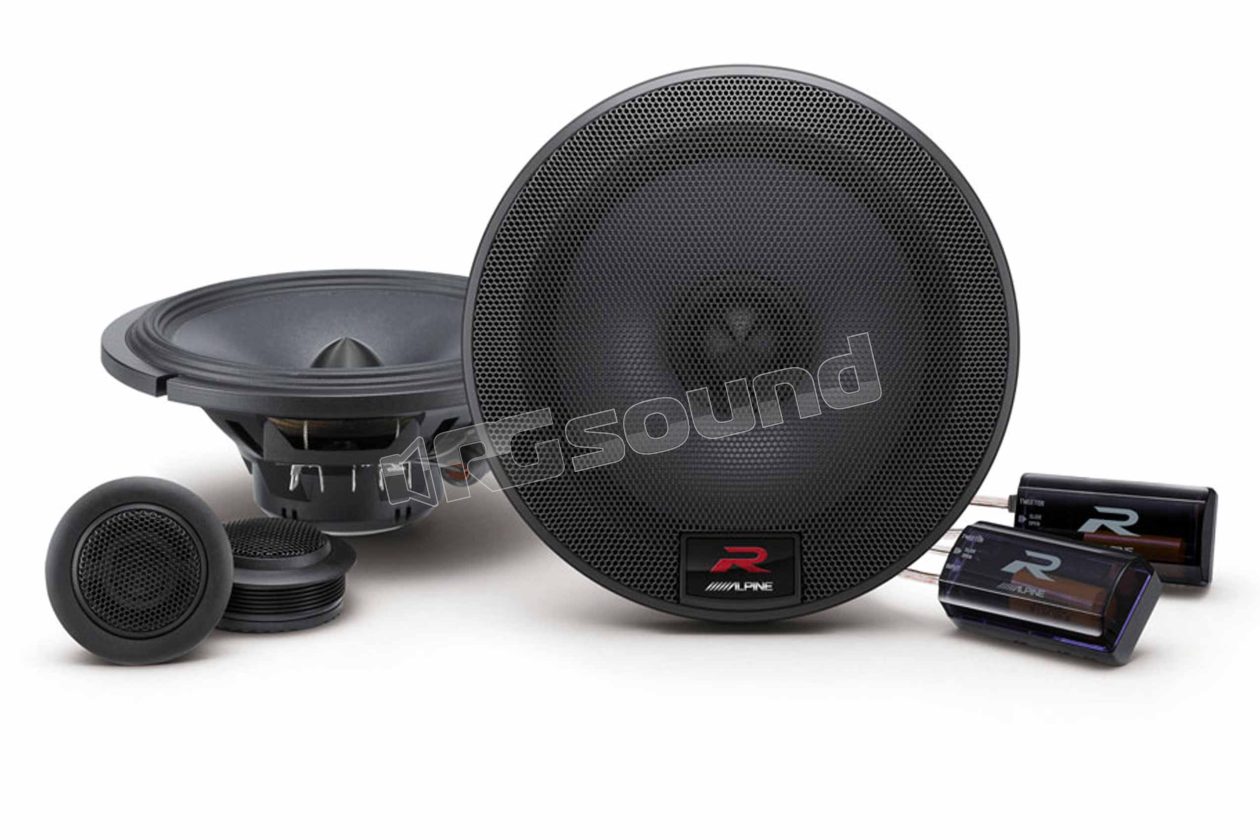

Alpine R-S65C two-way 16.5cm system from the new generation of Series-R speakers: designed to deliver powerful bass and precise highs while maintaining extreme sound clarity.

Peak Power: 300 Watts

RMS Power: 100 Watts

Frequency Response: 65 Hz - 29 kHz

Strengths of the Alpine R-S65C system

The High Amplitude Multi-Roll (HAMR) surround guarantees maximum cone excursion for unique SPL performance while maintaining full control of the diaphragm at any stage of excursion for extraordinary levels of sound clarity.

Alpine uses high-power neodymium magnets for the new Series R speakers. This means the magnet can be much smaller compared to traditional speaker design, guaranteeing much lower mounting depth levels and space inside the doors.

The new voice coil is made of aluminum, compared to standard copper coils. The advantage is superior clarity, especially in the frequency range.

Alpine has developed a swivel tweeter cone system to further improve sound quality. Once installed, it prevents distortion of the diaphragm's sound waves and directs sound for greater purity. Both separate models and coaxial models have a ring tweeter that orients itself to improve off-axis in case of complex installations. It can be manually oriented according to acoustic and design performance needs. The tweeter can be installed in the prepared space or externally - in both cases adapters are included.

A metal grille is included to protect the woofer in case of open installations.

To facilitate installation in multiple vehicles, a trim ring and a 6 x 8" adapter have been included.

The external crossover is very compact and easy to install. Simply open the cover to make fine adjustments to the tweeter (0dB / -2dB / -4dB / - 6dB). This ensures a perfect balance between woofer and tweeter inside your car.

Technical characteristics of the Alpine R-S65C system

Frequency Response: 65 Hz - 29 kHz

Imp Impedance: 4 Ohms

Sensitivity: 88 dB/W (1m)

Tweeter

1′′ (2.5cm) Ring Radiator Tweeter

Large Aluminium Voice Coil

Neodymium Magnet

Swivel Application

Flush Mount, Surface Mount Application

Woofer

Hybrid Multi Layer Cone

Linear Drive Technology

HAMR Surround

Large Aluminium Voice Coil

Aluminium Square Wire

Ultra High Density Neodymium Magnet

DX Ring

Wave Guide

Shallow Mounting Design

Mounting Adapter Kit Included

Bi-Amp Ready Design

Crossover

In-line Network Design

Tweeter level Adjustment: 4 Steps (0, -2, -4, -6 dB)

High Grade Network Components

Power

Peak Power: 300 Watts

RMS Power: 100 Watts

Dimensions

Woofer Mounting Diameter: 136 mm

Woofer Mounting Depth: 59 mm

Tweeter Mounting Diameter: 58 mm

Tweeter Mounting Depth: 19 mm

€ 299,00 Price incl. VAT
