PT383 Horn Tweeter

Ciare
Your price:
€ 55,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Tweeter
Speaker Size
130 mm
MAX Power
300 Watt
RMS Power
120 Watt

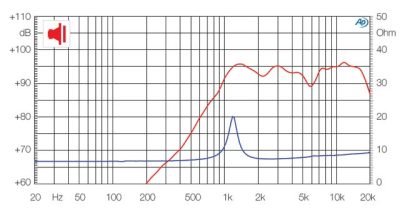

Frequency Response
1.500 - 20.000 Hertz
Sensitivity
94 dB
Impedance
8 Ohm
Weight
1,1 Kg
Installation Depth
64,5 mm
Voice Coil Diameter
38 mm

Ciare PT383 compression tweeter, aluminum diaphragm, with ferrofluids. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely autonomously all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

PT383 Features

  • Max power: 300W
  • Nominal power: 120W
  • Nominal impedance: 8Ω
  • Diameter: 130mm
  • Voice coil diameter: 38mm
  • Sensitivity 1W/1m: 94 dB
  • Frequency response 1,500-20,000 Hz
  • Recommended crossover frequency: 2200 Hz

PT383 Materials

  • Magnet type: Ferrite
  • Former type: Kapton
  • Air gap height: 3 mm

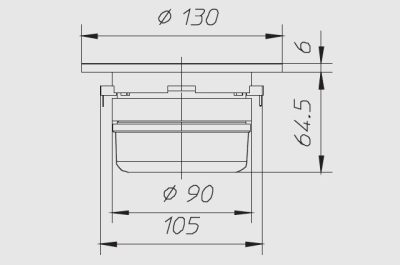

PT383 Dimensions

  • Outer diameter: 130 mm
  • Depth below flange: 64.5 mm
  • Flange thickness: 6 mm
  • Panel hole: 94 mm
  • Number of fixing holes: 4
  • Fixing hole diameter: 5 mm
  • Fixing hole position diameter: 103
  • Weight with single packaging: 1.10 Kg

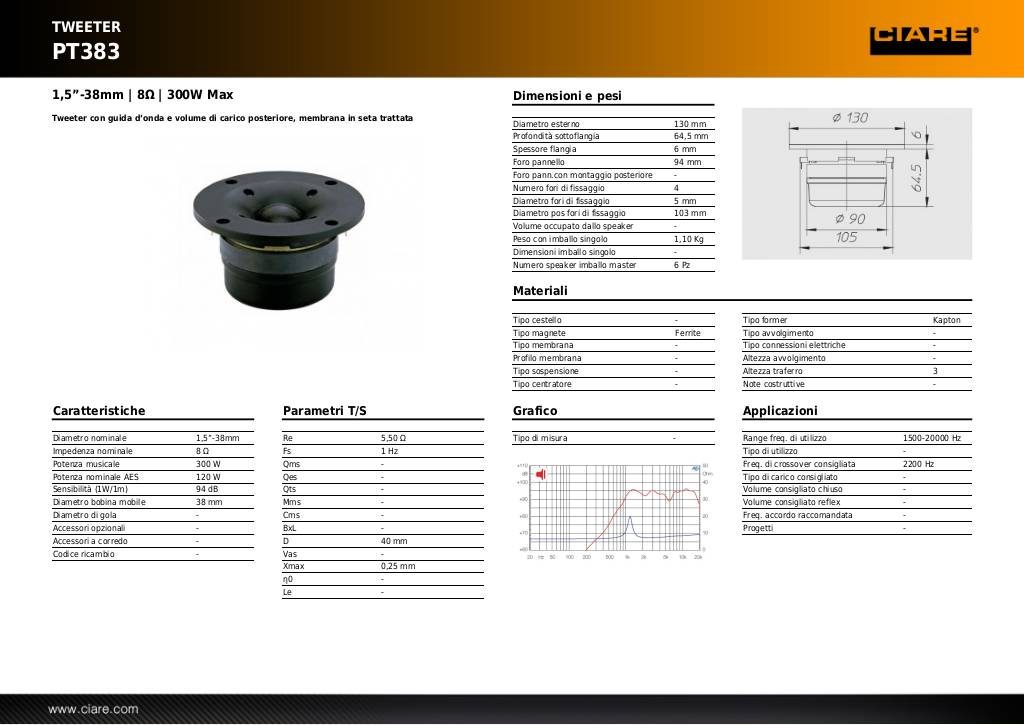

Scheda tecnica

20131105152519-pt383.pdf

1 Ciare PT383 tweeter speaker 8 Ohm
€ 55,00 Price incl. VAT
