PT262 Horn Tweeter

Ciare
Your price:
€ 50,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Speaker Size
130 mm
MAX Power
300 Watt
RMS Power
150 Watt

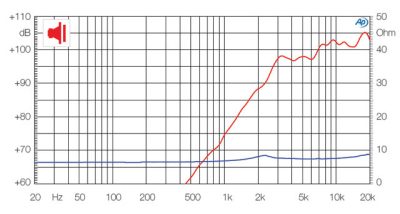

Frequency Response
3.000 - 20.000 Hertz
Sensitivity
105 dB
Impedance
8 Ohm
Weight
1,15 Kg
Installation Depth
42,5 mm
Voice Coil Diameter
25 mm

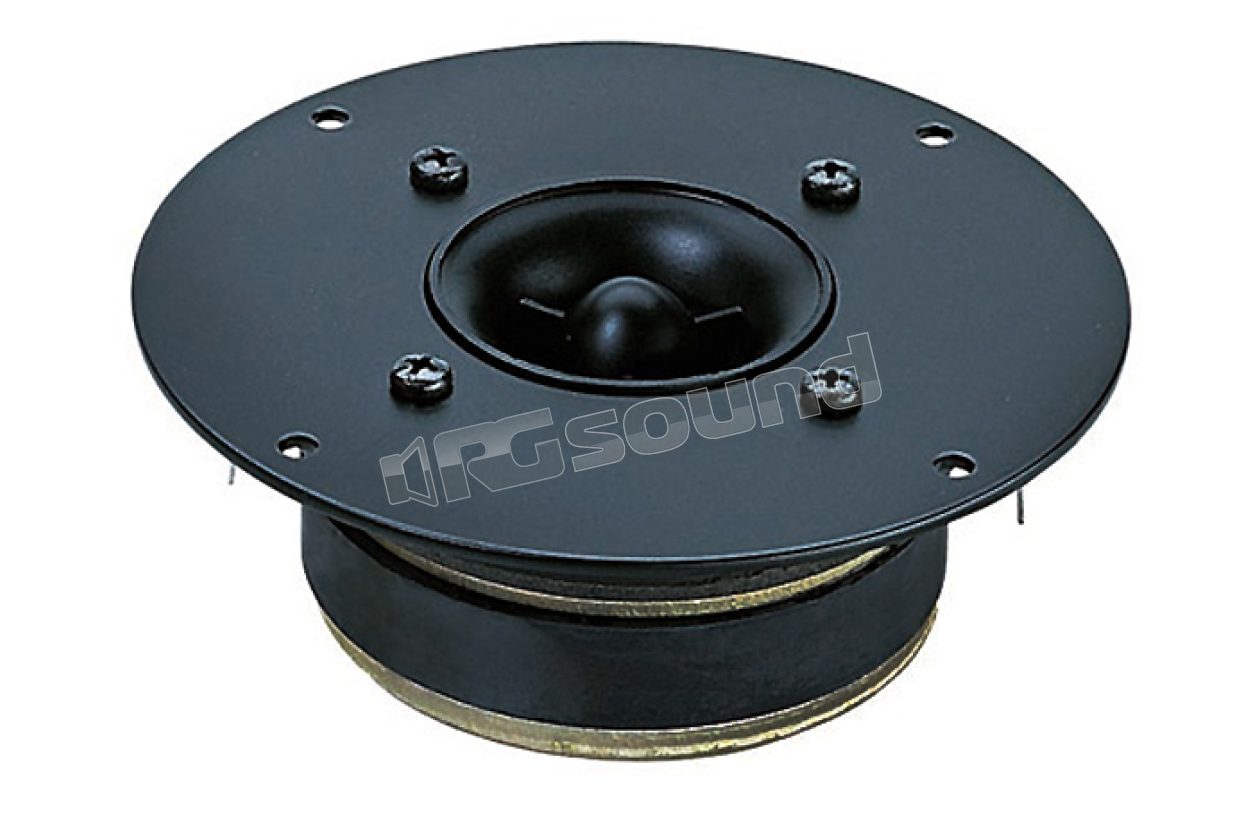

Ciare PT262 compression tweeter, aluminum diaphragm, with ferrofluids. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely autonomously all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

PT262 Features

  • Max power: 300W
  • Nominal power: 150W
  • Nominal impedance: 8Ω
  • Diameter: 130mm
  • Voice coil diameter: 25mm
  • Sensitivity 1W/1m: 105 dB
  • Frequency response 3,000-20,000 Hz
  • Recommended crossover frequency: 5000 Hz

PT262 Materials

  • Magnet type: Ferrite
  • Former type: Kapton
  • Gap height: 4 mm

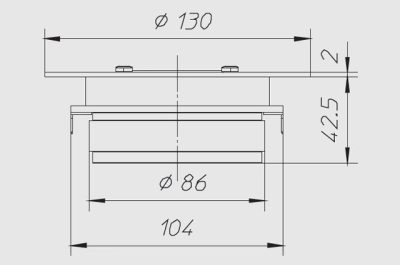

PT262 Dimensions

  • Outer diameter: 130 mm
  • Depth under flange: 42.5 mm
  • Flange thickness: 2 mm
  • Panel hole: 95 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 116
  • Weight with single packaging: 1.15 Kg

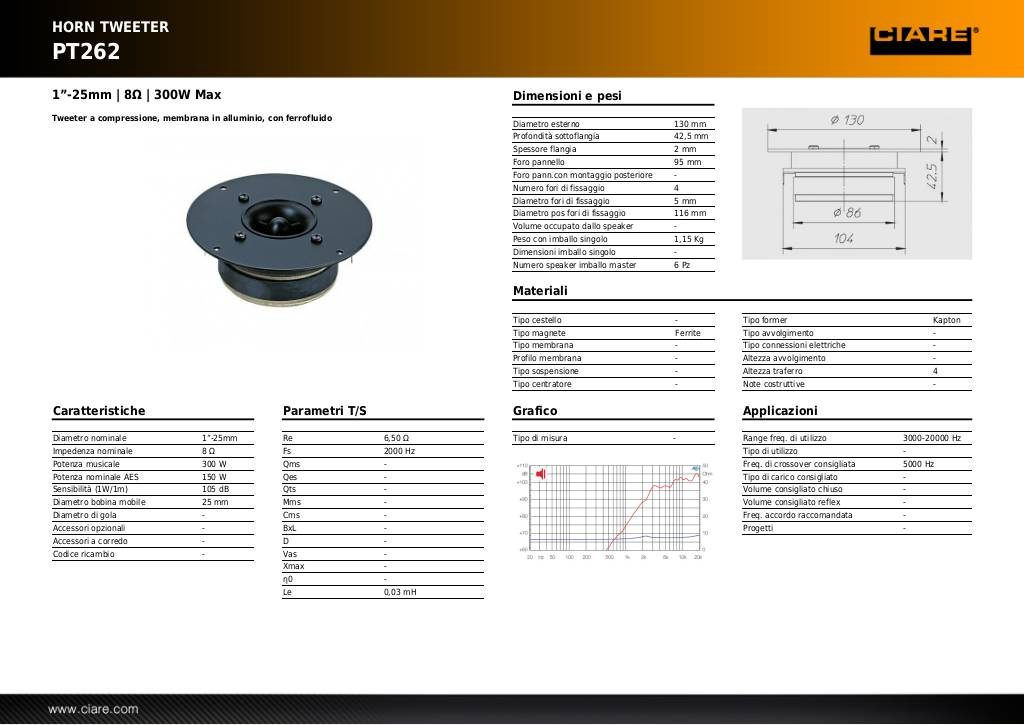

Scheda tecnica

20131105151152-pt262.pdf
