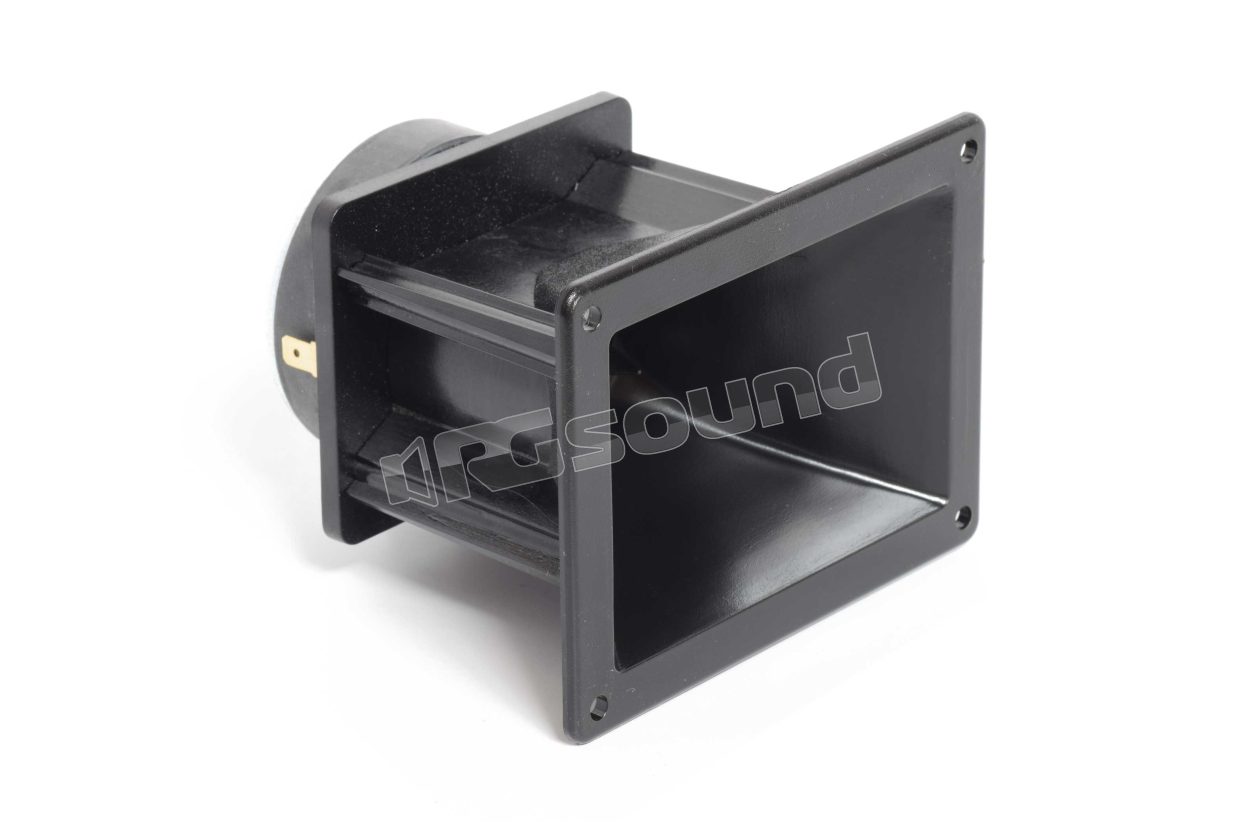

PT252 Horn Tweeter

Ciare
Your price:
€ 47,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Speaker Size
Other sizes
MAX Power
200 Watt
RMS Power
75 Watt

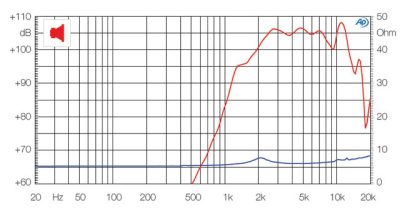

Frequency Response
3.000 - 16.000 Hertz
Sensitivity
105 dB
Impedance
8 Ohm
Weight
0,9 Kg
Installation Depth
109 mm
Voice Coil Diameter
25 mm

Ciare PT252 horn tweeter, polyamide diaphragm, with ferrofluid, flange 123 x 94 mm. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely autonomously all phases of product realization, allow the company to achieve the highest quality standards in the realization of every component.

PT252 Features

  • Max power: 200W
  • Nominal power: 75W
  • Nominal impedance: 8Ω
  • Diameter: 123 x 64mm
  • Voice coil diameter: 25mm
  • Sensitivity 1W/1m: 105 dB
  • Frequency response 3,000-16,000 Hz
  • Recommended crossover frequency: 5000 Hz

PT252 Materials

  • Magnet type: Ferrite
  • Former type: Kapton
  • Air gap height: 3 mm

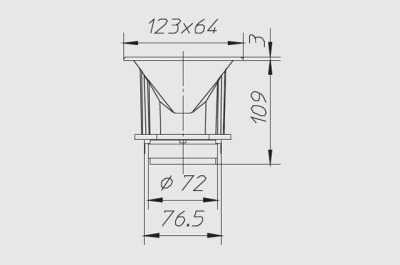

PT252 Dimensions

  • External diameter: 123 x 64 mm
  • Sub-flange depth: 109 mm
  • Flange thickness: 3 mm
  • Panel hole: 74 x 102 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 80 x 110
  • Weight with single package: 0.90 Kg

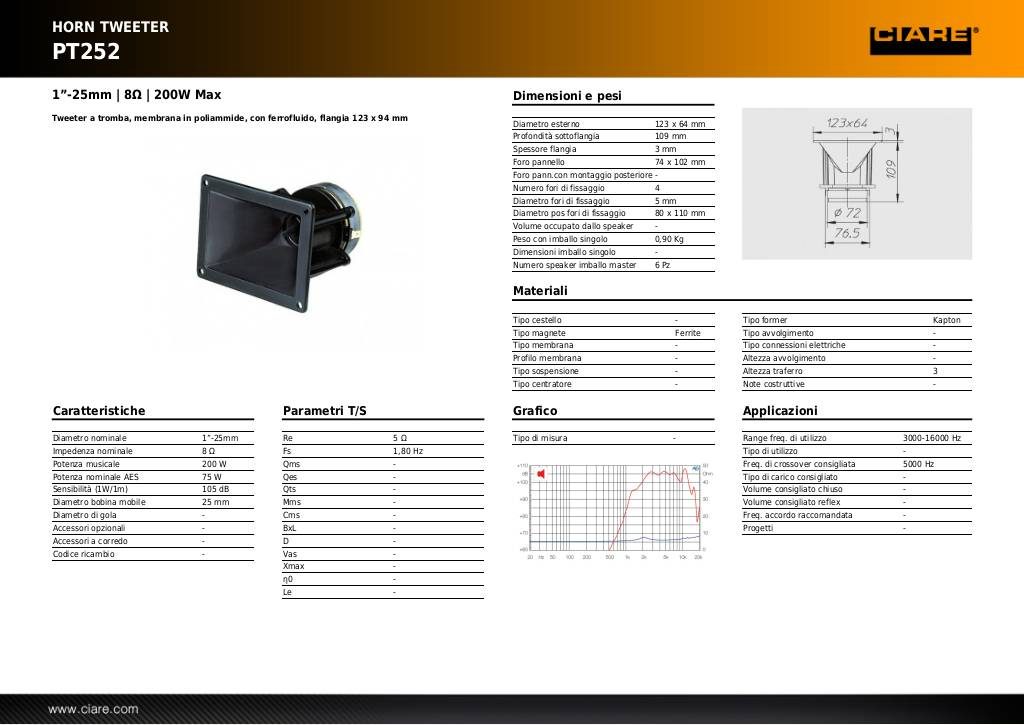

Scheda tecnica

20131105150059-pt252.pdf

1 Speaker 8 Ohm Ciare tweeter PT252
€ 47,00 Price incl. VAT
