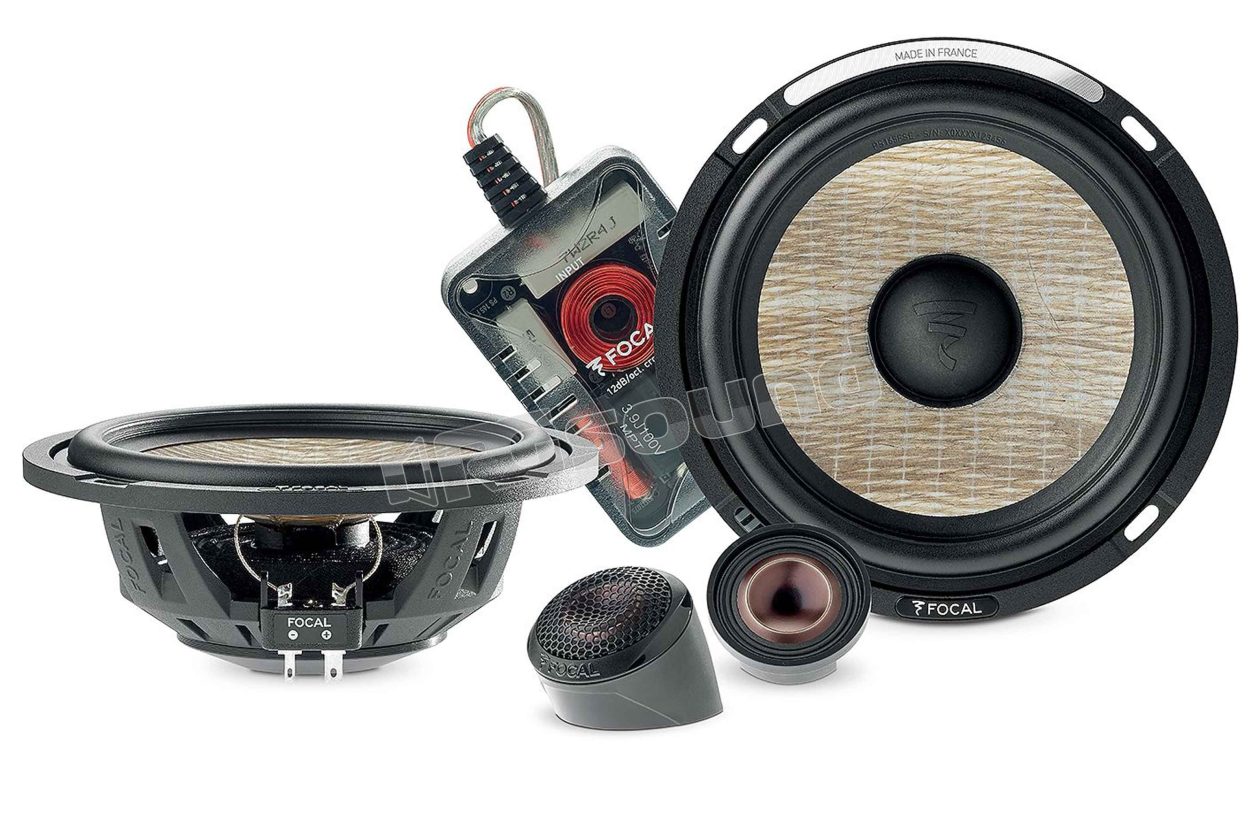

PS 165 FSE 2-way system with woofer, tweeter and crossover

Focal
Your price:
€ 399,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
70 - 28.000 Hertz
Woofer Size
165 mm
Tweeter Size
52 millimetri
MAX Power
120 Watt
RMS Power
60 Watt
Sensitivity
91,5 dB
Impedance
4 Ohm
Woofer Material
Cono in lino
Tweeter Material
Cupola ribaltata

Focal PS165FSE 2-way system with slim woofer, inverted dome tweeter and audiophile crossover

Focal PS165FSE two-way speaker system composed of a pair of 165mm woofers with linen cone and reduced installation depth, a pair of inverted dome tweeters and audiophile crossover. Equipped with linen cone, the woofers of the PS 165 FSE kit offer very dynamic and natural sound. The TMD (Tuned Mass Damper) surround they incorporate stabilizes the surround to achieve better control and greater neutrality and linearity. Thanks to their incorporated neodymium motor, their reduced depth (thin and shallow basket profile), they are even easier to install in factory housings with limited space.

The TAM inverted dome tweeters with "M" profile included in the kit offer a wider dispersion angle and greater sound definition, without directionality. Thanks to their angled mounting, they are easy to install in the vehicle. A compact pre-wired audiophile crossover completes this kit. Finally, with its engraved aluminum basket and meticulous finishes, PS 165 FSE combines style, discretion and modernity for a premium system.

PS165FSE Features

  • Unique and patented linen cone
  • Butyl surround with exclusive "TMD" profile
  • TAM inverted dome tweeter with "M" profile in aluminum and magnesium
  • Made in France in Focal laboratories
  • High sensitivity
  • Slim design: easy installation
  • Wider dispersion angle
  • Natural and precise sound
  • Easy installation

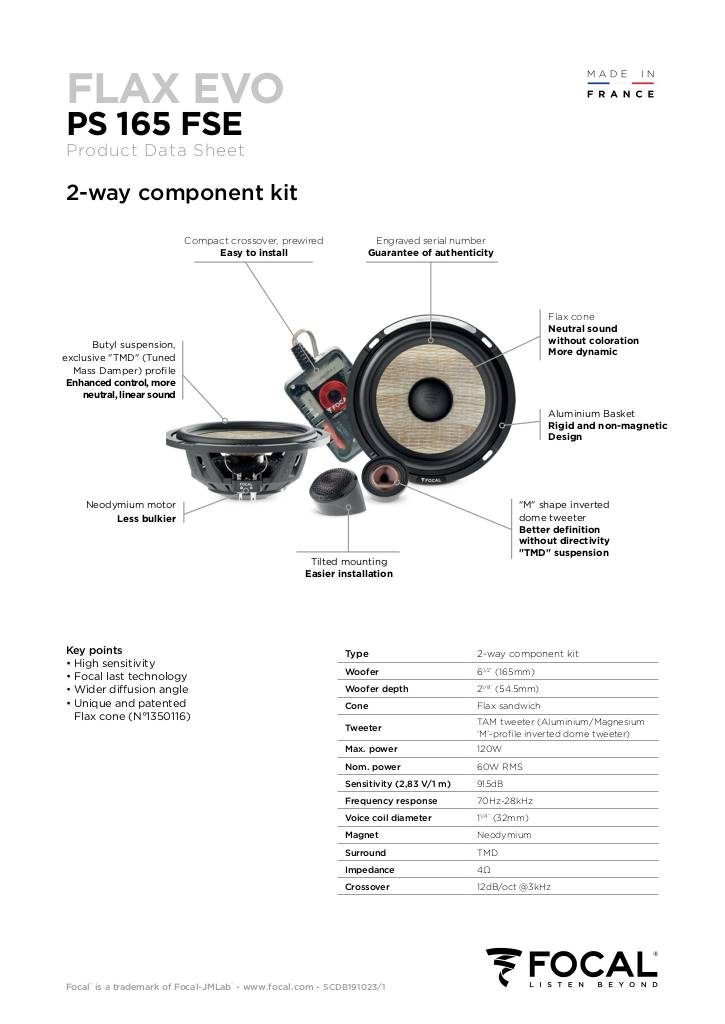

Scheda tecnica

n-20200303153422-fp-ps165fse-gb.pdf

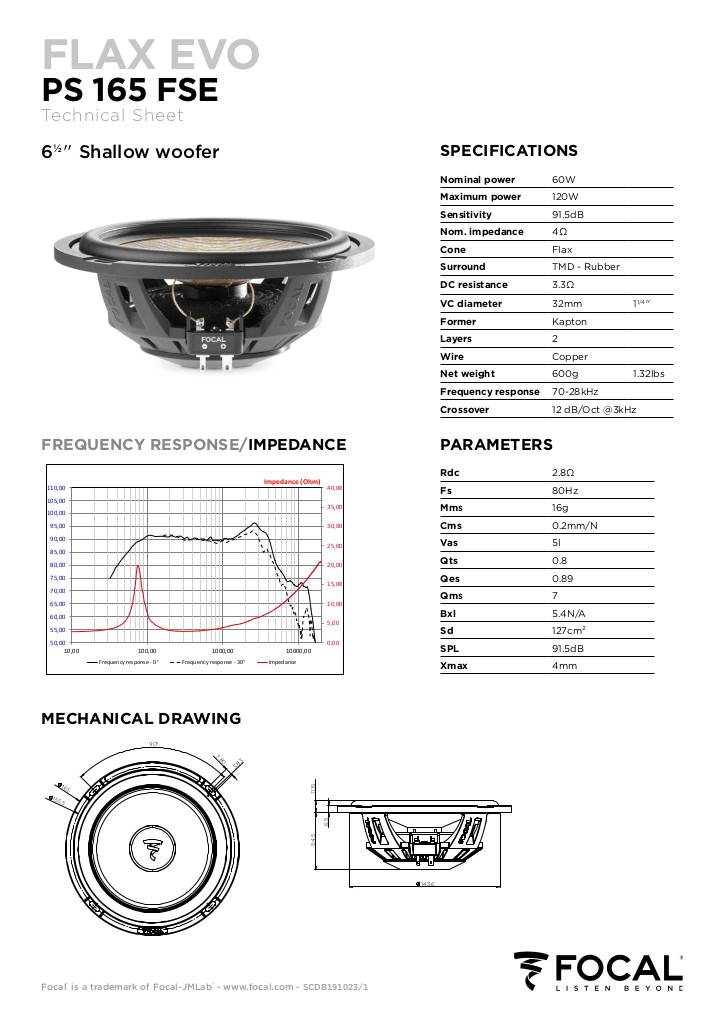

Scheda tecnica woofer

n-20200303153422-ft-ps165fse.pdf

Focal PS165FSE Technical Specifications

  • Rated power: 60 W
  • Maximum power: 120 W
  • Sensitivity (2.83 V / 1 m): 91.5 dB
  • Cone: linen
  • Surround: TMD - Rubber
  • Nom. impedance: 4 ohm
  • DC resistance: 3.3 ohm
  • Voice coil diameter: 32mm
  • Ex: Kapton
  • 2 layer coil
  • Wire: copper
  • Frequency response: 70-28kHz
  • Crossover: 12 dB / oct @ 3kHz

Parameters

  • Rdc: 2.8Ω
  • Fs: 80Hz
  • Mms: 16g
  • Cms: 0.2 mm / N
  • Vas: 5l
  • Qts: 0.8
  • Qes: 0.89
  • Qms: 7
  • Bxl: 5.4 N / A
  • Sd: 127 cm2
  • SPL: 91.5 dB
  • Xmax: 4mm
