PS 165 F3E 3-way speaker system with flax fiber cone

Focal
Your price:
€ 609,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
3-way separate kit
Woofer Size
165 mm
Midrange Size
73 millimetri
Tweeter Size
52 millimetri
MAX Power
160 Watt
RMS Power
80 Watt
Frequency Response
60 - 28.000 Hertz
Sensitivity
90.5 dB
Impedance
4 Ohm
Woofer Material
Cono in lino

Focal PS165F3E 3-way speaker system with flax cone

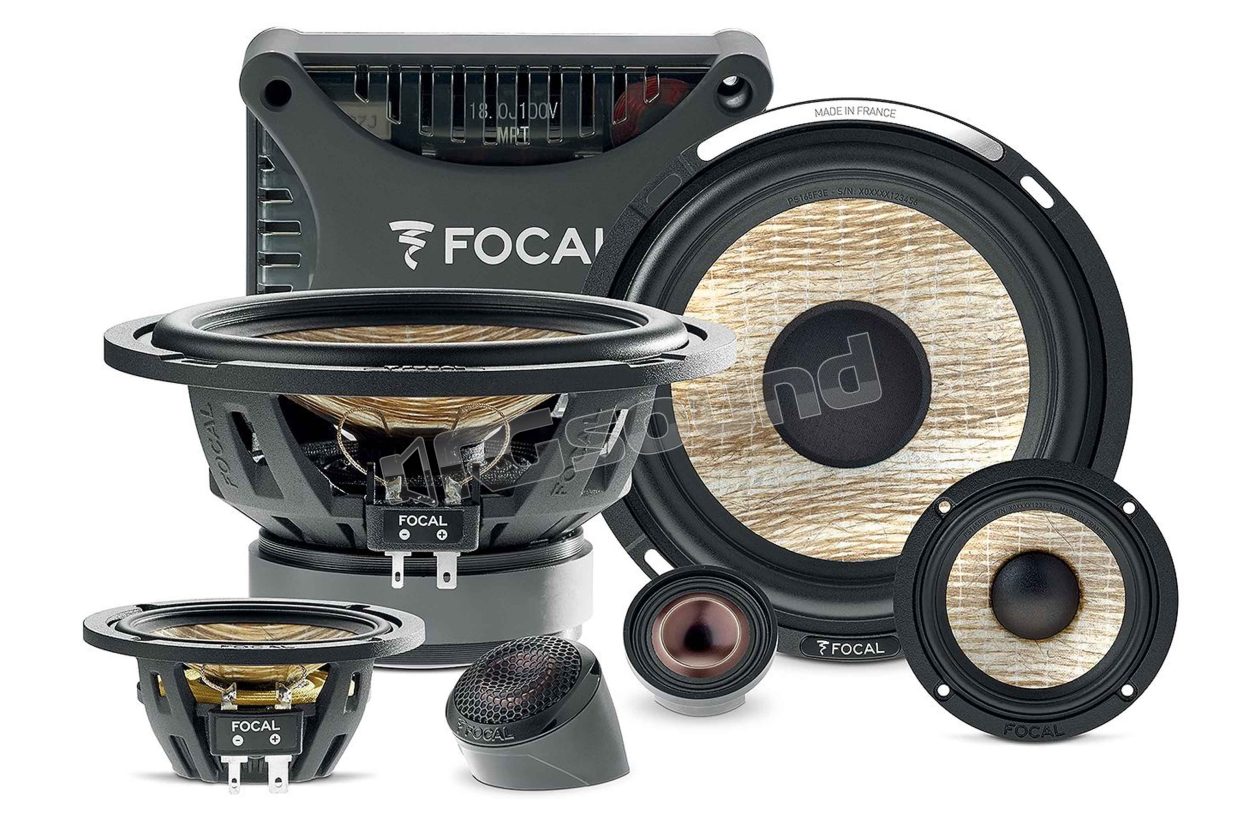

Focal PS165F3E three-way speaker system composed of a pair of woofers and midrange with distinctive and patented flax cone by Focal, a pair of inverted dome tweeters and audiophile crossover. PS 165 F3E combines the best of Flax technology with the latest Focal innovations to deliver more natural sound. The TMD surround (Tuned Mass Damper) is incorporated in the woofers and midrange frequencies to stabilize the surround and achieve better control, neutrality and linearity: the bass is even denser, performance in the upper midrange is improved and harmonic distortion reduced. Combined, these speakers create a clear, precise and powerful sound.

The TAM inverted dome tweeters with "M" profile included in the kit offer a wider diffusion angle and greater sound definition, without directionality. Thanks to their angled mounting, they are easy to install in the vehicle. An audiophile crossover completes the kit, offering several adjustment levels for tweeter and midrange. Finally, with its engraved aluminum basket and meticulous finishing, PS 165 F3E combines style, discretion and modernity for a premium system.

FeaturesPS 165 F3E

  • Butyl surround with exclusive "TMD" profile
  • TAM inverted dome tweeter with "M" profile
  • Made in France in Focal laboratories
  • High power handling
  • Deep and sustained bass
  • Very compact midrange
  • Wider tweeter diffusion angle
  • Natural and precise sound
  • Easy installation

Scheda tecnica

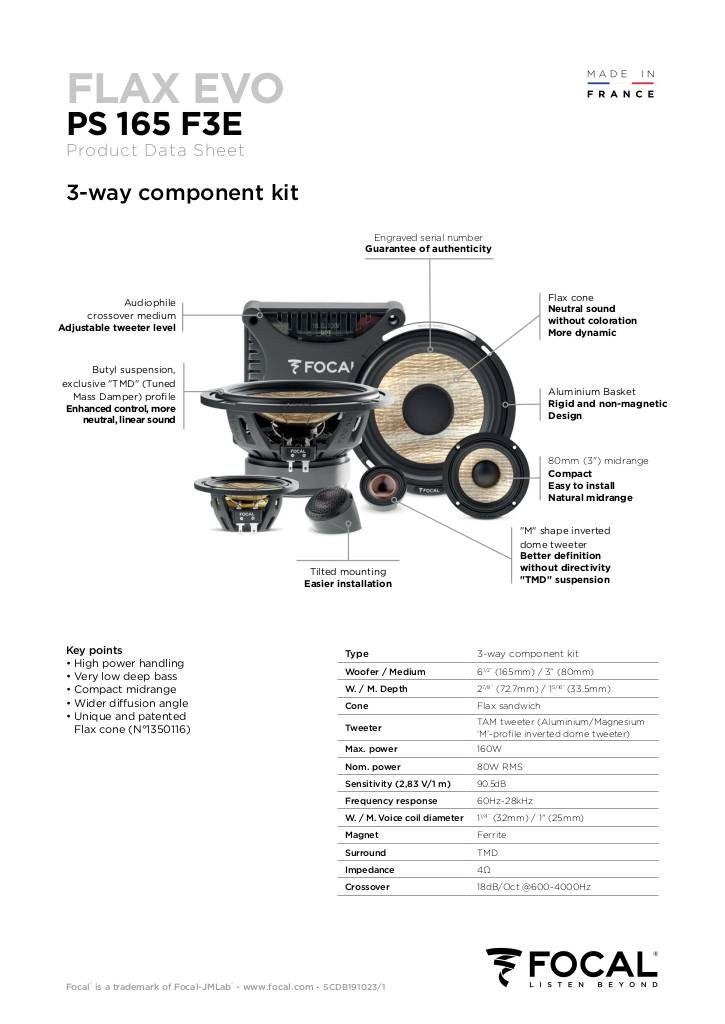

n-20200304145231-fp-ps165f3e-gb.pdf

Focal PS 165 F3E Technical specifications

  • 3-way component kit
  • Nominal power: 80 W
  • Maximum power: 160 W
  • Sensitivity: 90.5 dB
  • Nominal impedance: 4Ω
  • Tweeter: TAM tweeter (inverted dome tweeter with "M" profile in aluminum / magnesium)
  • Cone: flax
  • Surround: TMD - Rubber
  • DC resistance: 3.3Ω
  • Voice coil diameter: 32 mm
  • Magnet: ferrite
  • Ex: Kapton
  • Wire: copper
  • Frequency response: 60 - 28 kHz
  • Crossover: 18 dB / octave at 600-4,000 Hz

Parameters

  • Rdc: 3.3Ω
  • Fs: 60 Hz
  • Mms: 14.5 g
  • Cms: 0.44 mm / N
  • Vasket: 12 l
  • Qts: 0.8
  • Qes: 0.9
  • Qms: 9
  • Bxl: 4.5 N / A
  • Sd: 127 m2
  • SPL: 90.5 dB
  • Xmax: 5
€ 609,00 Price incl. VAT
