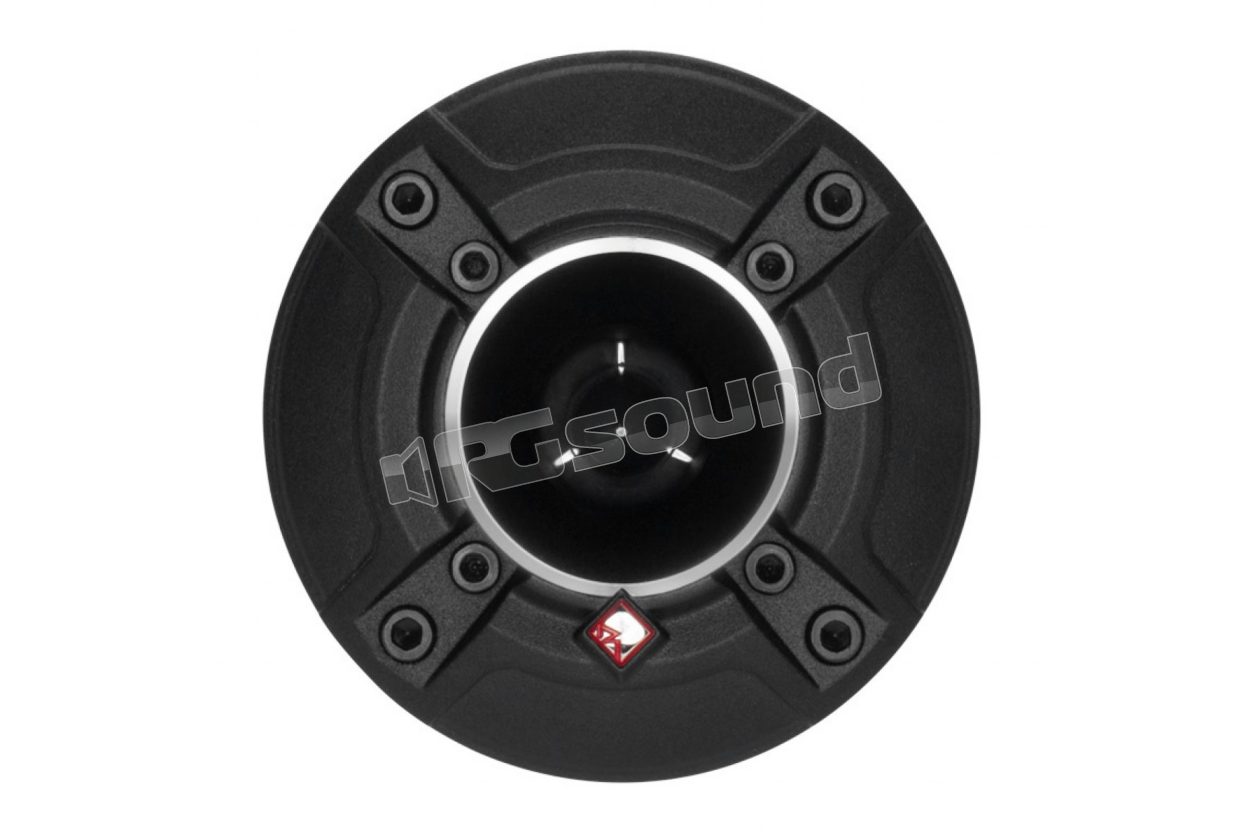

PP4-NT

Rockford Fosgate
Your price:
€ 121,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Super Tweeter
Dome Size
25 mm
MAX Power
100 Watt
RMS Power
50 Watt
Frequency Response
4.000 - 20.000 Hertz
Sensitivity
105 dB
Impedance
4 Ohm
Outer Diameter
64 mm
Installation Depth
65 mm
Tweeter Material
Neodimio

Rockford Fosgate PP4-NT tweeter Punch Pro series 25mm (1") at 4 Ohm, integrated 6 dB crossover.

PP4-NT is a high efficiency tweeter designed for SPL systems. Its small dimensions allow use in compact areas and the neodymium body guarantees exceptional performance.

PP4-NT Features

High efficiency horn tweeter

Aluminum diaphragm

Aluminum phase plug

High temp Nomex former voice coil

Die cast aluminum frame

All Metal Input Spring Terminal Connection

Neodymium motor structure

Built-in 6dB/Octave crossover

Removable mounting flange

Mounting hardware included

PP4-X and PP8-X crossover compatible

Sold as individual units (not in pairs)

Configuration: Tweeter

Nominal Impedance (Ohms): 4 Ohm

Frequency Response (Hz): 4kHz - 20kHz

Tweeter Nominal Diameter (dome/diaphragm): 1.0"

Tweeter Mounting Diameter:

  • Large Trim Ring: 2.52" (64 mm)
  • Small Trim Ring: 1.79" (45.5 mm)

Tweeter Mounting Depth: 2.57" (65.8 mm)

Voice Coil Diameter (in/mm): 1" (25 mm)

Power Handling:

  • 50 Watts RMS
  • 100 Watts MAX

Crossover: 4kHz @ 6dB/Octave

Sensitivity (dB @ 1W/1M): 105

Grille/Trim Ring Included: No

Mounting Hardware: Yes

Scheda tecnica

n-20160926164302-1230-59166-02-rf-punchprotweeters-man.pdf
