POW 172.2 expandable to 3-way with PRW 80 midrange

ETON

Discontinued

Your price:
€ 229,00
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
49 - 22.000 Hertz
Woofer Size
165 mm
Tweeter Size
25 millimetri
MAX Power
100 Watt
RMS Power
70 Watt
Sensitivity
94 dB
Impedance
3 Ohm
Woofer Material
Fibra di vetro
Tweeter Material
Cupola in seta

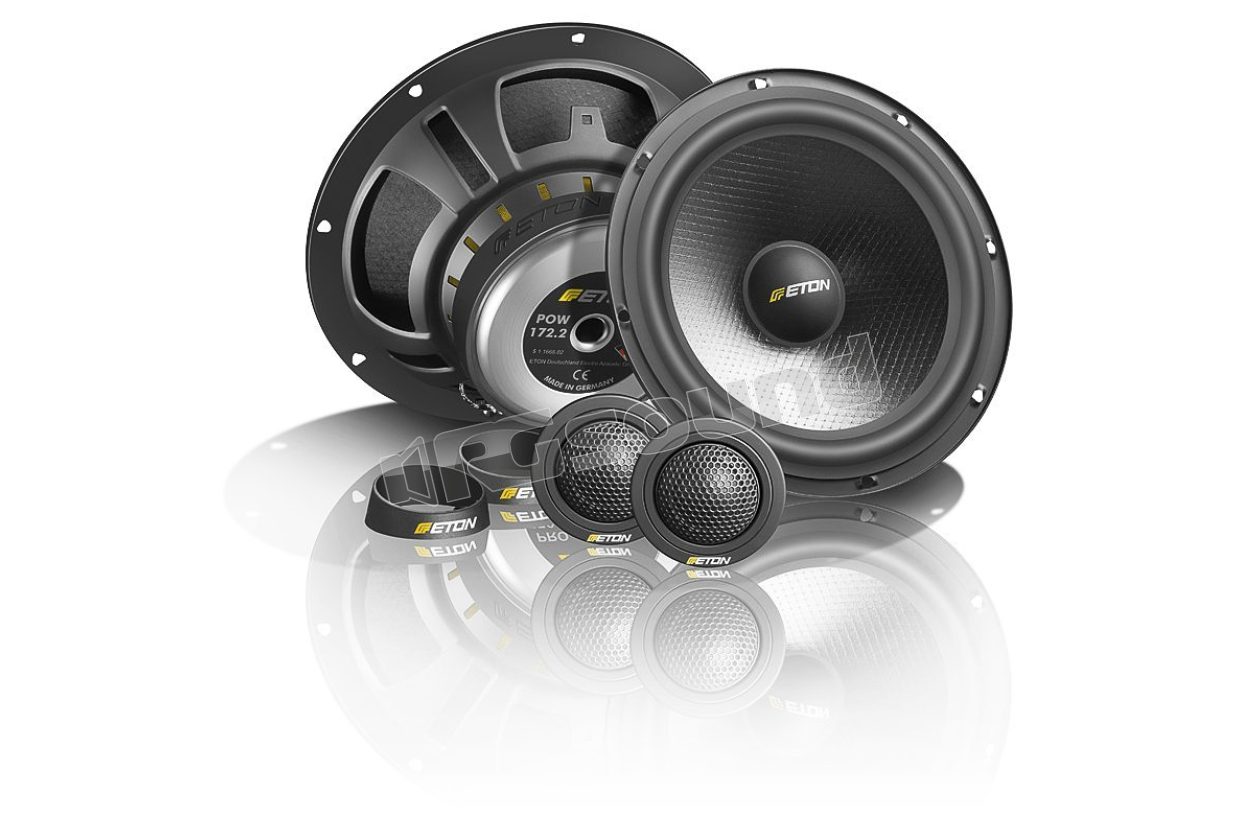

ETON POW 172.2 2-way system composed of a pair of 165 mm woofers, 25 mm voice coil, fiberglass and treated cellulose cone. Pair of tweeters with 25 mm Titanium dome and inline crossover.

POW 172.2 Features

100% built in Germany
2-way hi-fi system with very high sensitivity specifically designed to be driven even by factory head units
Double-layer Fiberglass/Treated Cellulose cone
RMS Power 70 W
Maximum Power 100 W
Sensitivity 94 dB
Tweeter with 25 mm dome in hand-treated Silk
Inline crossover
Possibility of conversion to 3-way system with Midrange PRW 80 and Crossover MRX 3W

By adding the 80 mm midrange ETON PRW 80 with sandwich cellulose and fiberglass cone, ferrite magnet with cooling for clear sound, you transform the two-way POW 172.2.C system into a complete 3-way system. Even cleaner and more detailed music reproduction.

POW 172.2.C Specifications

Technical Data

Wert/Value

Einh./Unit

Nominal impedance

3

Ohm

DC resistance

2.5

Ohm

Resonance frequency

64

Hz

Total moving mass (including air mass)

12.6

g

Effective piston area

137

cm2

Voice coil diameter

25

mm

voice coil former

Aluminium

Voice Coil length

11

mm

Voice Coil layers

2

Voice Coil inductance

0.32

mH

Flux density

1.07

Tesla

Force factor

4.4

Tm

Height of the gap

6

mm

Diameter of magnet

84

mm

Height of magnet

15

mm

Mass of speaker

0.96

kg

Characteristic sound pressure level 1 W1m

90

dB SPL

Rated power

50

W

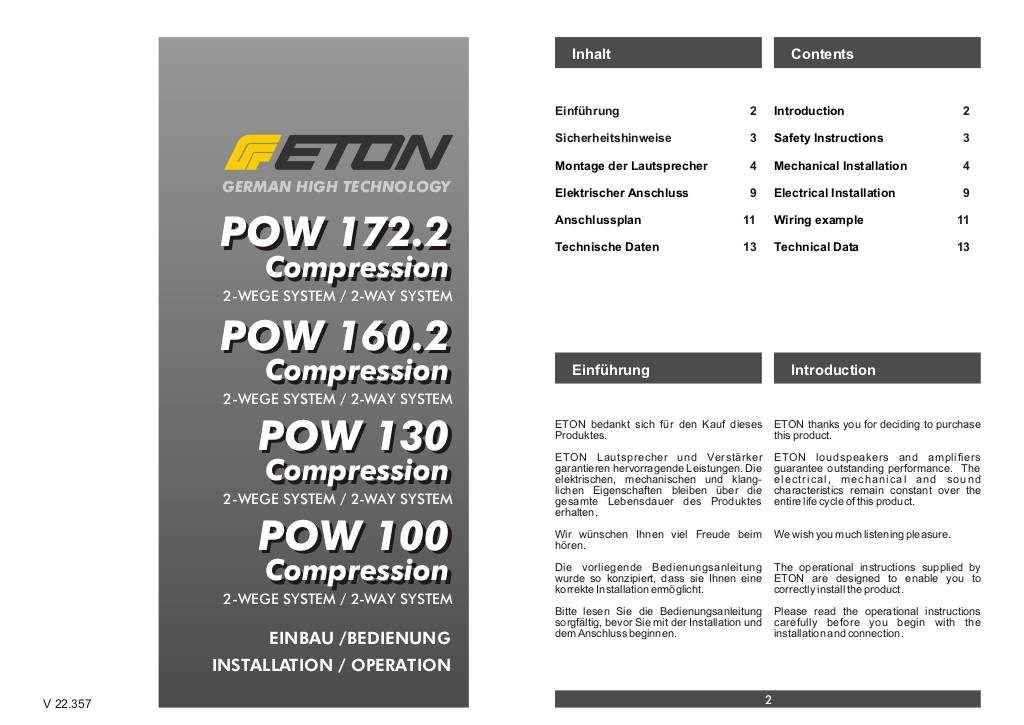

Manuale utente

20150611145731-pow100-172-v22-357-web-02.pdf

Pair of 165 mm woofers Pair of 25 mm tweeters Dedicated inline crossover
