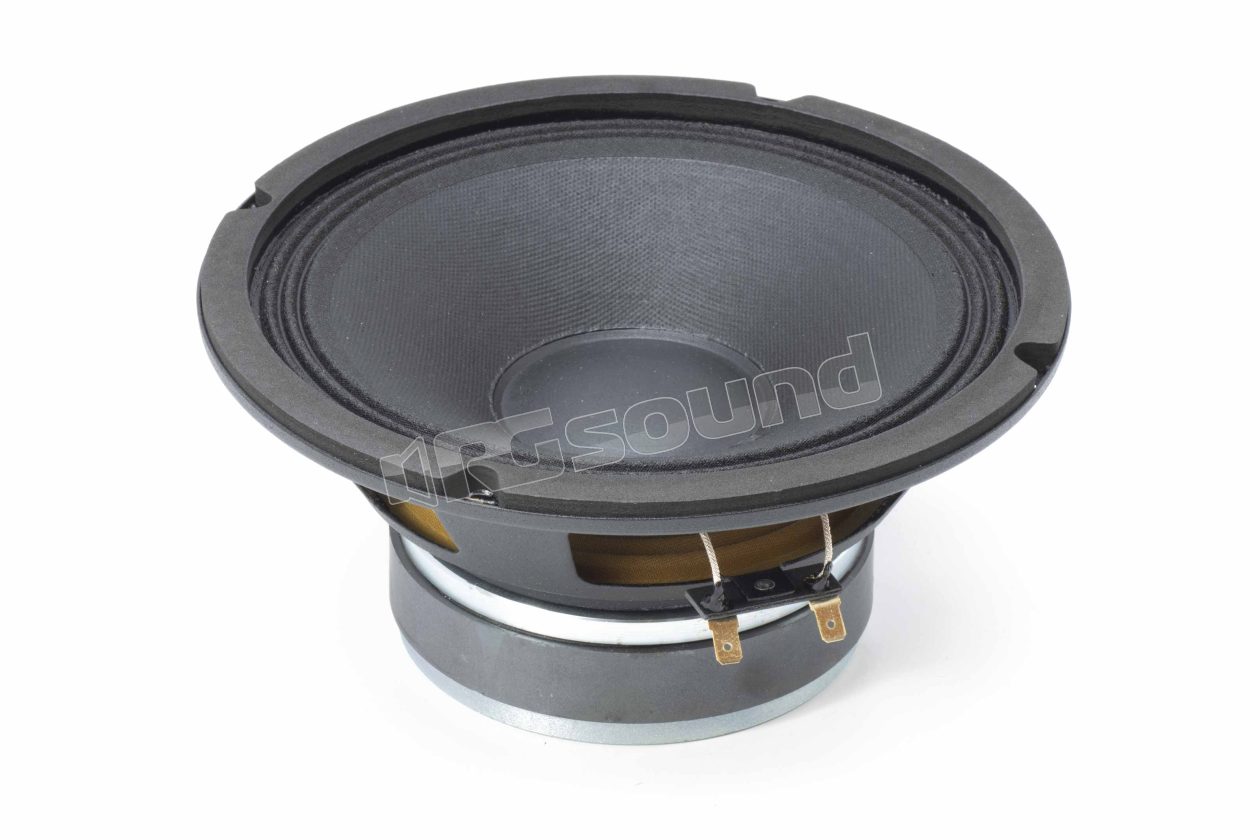

PM203 Max power 300W - Diameter 200mm

Ciare
Your price:
€ 80,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Midrange
Speaker Size
200 mm
MAX Power
300 Watt
RMS Power
150 Watt
Frequency Response
60 - 5.000 Hertz
Sensitivity
94 dB
Impedance
8 Ohm
Weight
2,6 Kg
Installation Depth
89 mm
Voice Coil Diameter
50 mm

Ciare PM203 extended range 200mm with cellulose membrane, cloth suspension with NOMEX ®, aluminum wire winding.

Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely independently all phases of product realization, allow the company to achieve the highest standards of quality in the realization of every component.

PM203 Features

  • Max power: 300W
  • Nominal power: 150W
  • Nominal impedance: 8Ω
  • Diameter: 200mm
  • Voice coil diameter: 50mm
  • Sensitivity 1W/1m: 94 dB

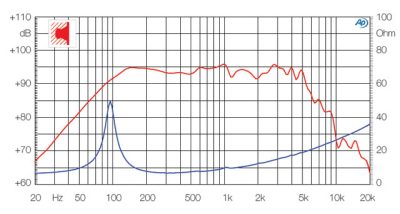

  • Frequency response 60-5,000 Hz
  • Recommended load type: Sealed enclosure
  • Recommended sealed volume: 15 dm3

PM203 Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Suspension type: Nomex
  • Former type: Aluminum
  • Winding type: Aluminum
  • Airbox height: 8 mm

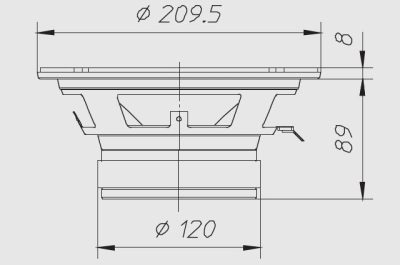

PM203 Dimensions

  • Outer diameter: 209.5 mm
  • Depth below flange: 89 mm
  • Flange thickness: 8 mm
  • Panel hole: 180 mm
  • Number of fixing holes: 4
  • Diameter of fixing holes: 5 mm
  • Fixing holes position diameter: 198.5
  • Weight with single package: 2.60 Kg

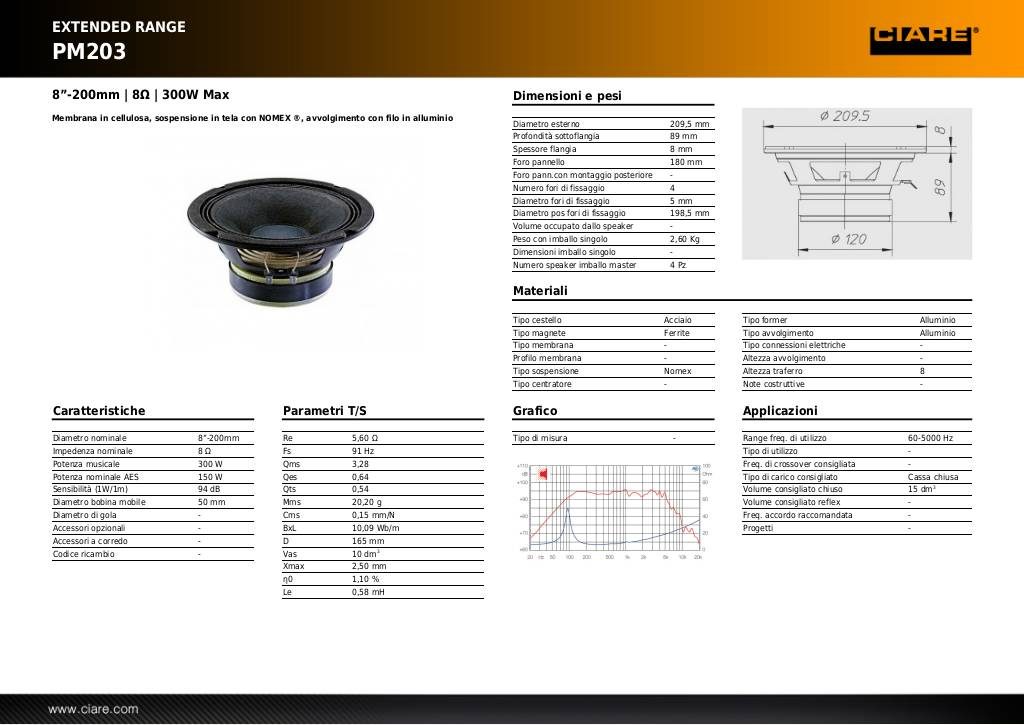

Scheda tecnica

20131105144923-pm203.pdf

1 Ciare extended range 8 Ohm speaker PM203
€ 80,00 Price incl. VAT
