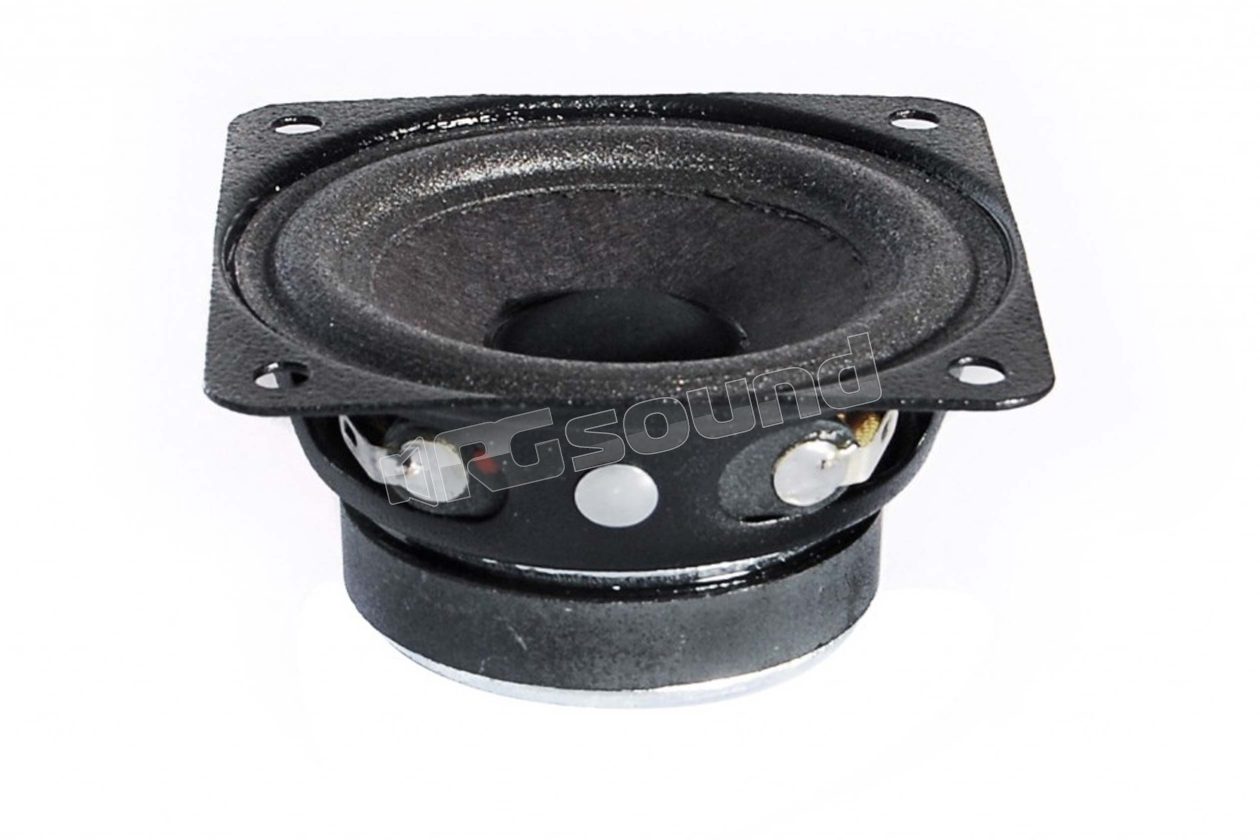

PA065 extended range 65mm 8 Ohm

Ciare
Your price:
€ 16,10
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Midrange
Speaker Size
70 mm
MAX Power
30 Watt
RMS Power
10 Watt
Frequency Response
120 - 16.000 Hertz
Sensitivity
88 dB
Impedance
8 Ohm
Weight
0,19 Kg
Installation Depth
29,5 mm
Voice Coil Diameter
14 mm

Ciare PA065 extended range 65 mm with cellulose membrane and polyurethane suspension, 8 Ohm impedance, 30 W power

Technical specificationsPA065

Music power: 30 W
Nominal AES power: 10 W
Nominal diameter: 64mm (2.5'')
Nominal impedance: 8 Ohm
Voice coil: 14mm
Sensitivity 1W/1m: 88 dB
Basket type: Steel
Magnet type: Ferrite
Suspension type: Polyurethane
Former type: Aluminum
Air gap height: 3 mm
Recommended load type: Sealed enclosure
Recommended sealed volume: 1.5 dm3
Frequency range of use: 120 - 16.000 Hz

Dimensions and weightPA065

External diameter: 65 x 65 mm
Depth below flange: 29.5 mm
Flange thickness: 2.8 mm
Panel hole: 65 mm
Number of fixing holes: 4
Diameter of fixing holes: 4.5 mm
Diameter pos fixing holes: 75
Weight with single packaging: 0.19 Kg

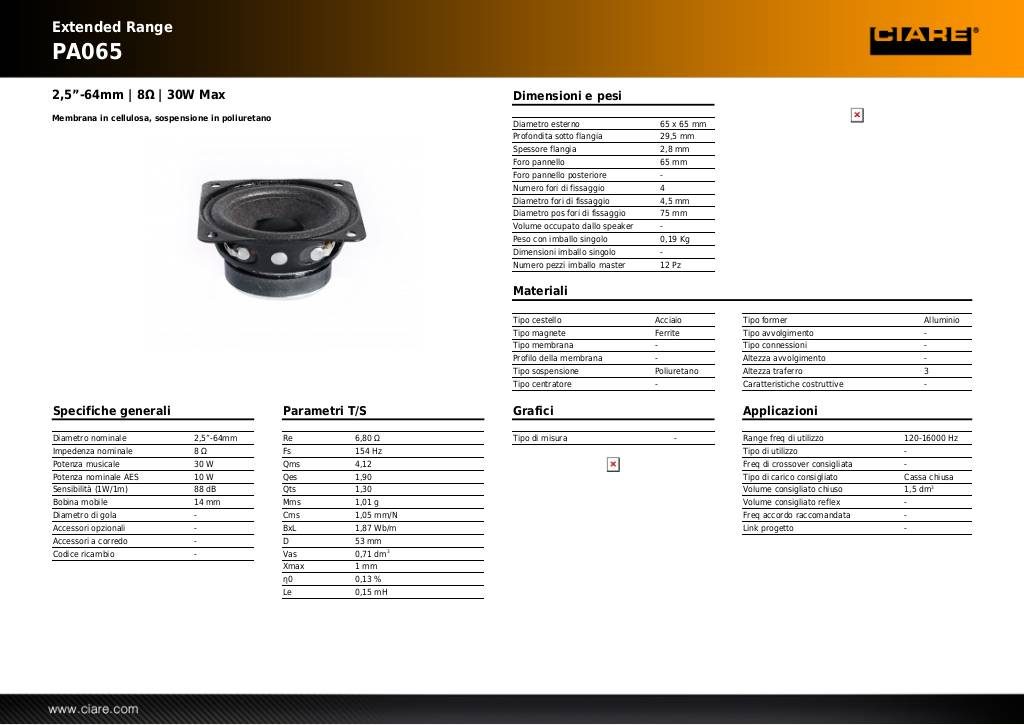

Scheda tecnica

n-20170411142517-pa065.pdf
€ 16,10 Price incl. VAT
