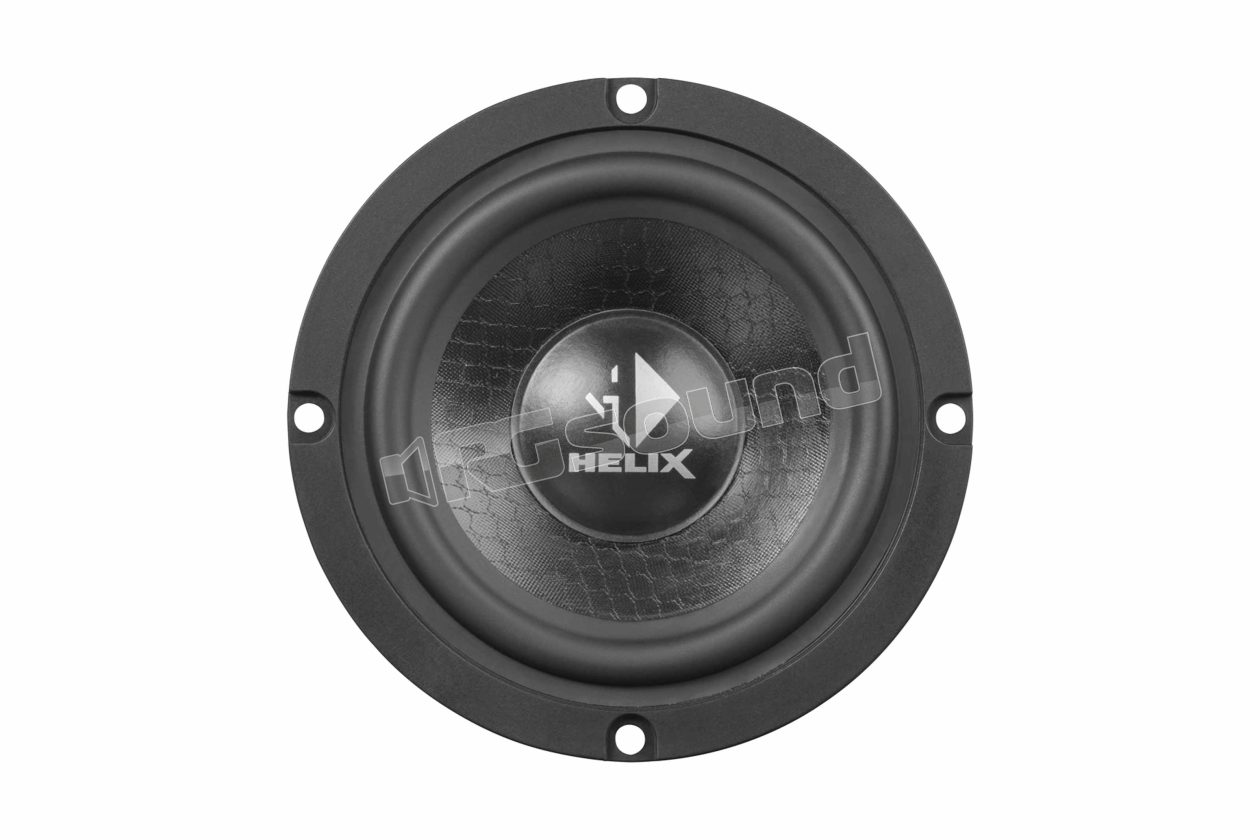

P 3M Pair of 75mm midrange speakers with grilles

Helix

Discontinued

Your price:
€ 168,00
Price per pair (VAT included)
Type
Midrange
Speaker Size
70 mm
MAX Power
150 Watt
RMS Power
75 Watt
Sensitivity
86 dB
Impedance
4 Ohm
Installation Depth
37 mm
Midrange Cone Material
Fibra di vetro

Helix P 3M Pair of 7.5 cm midrange with grilles included in the package

The P 3M cone midrange driver is the perfect complement for every fully active 2-way speaker system. The lightweight fiberglass composite paper cone ensures excellent impulse response and minimal sound discoloration, while the highly efficient neodymium magnet system provides linear guidance and minimal distortion.

Furthermore, the basket optimized for flow not only prevents rear reflections, but also guarantees compression-free sound reproduction thanks to optimal voice coil cooling. The P 3M develops its full tonal potential in a sealed and damped enclosure.

Helix P 3M Technical Specifications

  • RMS / max. Power P75 / 150 Watts (highpass > 400 Hz at 24 dB/Oct.)
  • Impedance 4 Ω
  • DC resistance Re 3.3 Ω
  • Efficiency 1 W / 1 m SPL 86 dB
  • Voice coil diameter ø25 mm
  • External diameter ø90 mm / 3.54"
  • Installation hole diameter ø73 mm / 2.87"
  • Installation depth 37 mm / 1.46"

Recommended box volume

  • Sealed enclosure with minimum net volume of 200 ml
  • Net volumes DSP/amplifier recommended settings
  • 0.2 liters (system resonance: 230 Hz) Crossover frequency: 500 Hz
  • Minimum filter slope: 12 dB/Oct.
  • 0.4 liters (system resonance: 190 Hz) Crossover frequency: 450 Hz
  • Minimum filter slope: 18 dB/Oct.
  • 0.6 liters (system resonance: 170 Hz) Crossover frequency: 400 Hz
  • Minimum filter slope: 24 dB/Oct.
