NDI6.38MR

Ciare
Your price:
€ 91,80
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
165 mm
MAX Power
300 Watt
RMS Power
130 Watt
Frequency Response
150 - 4.500 Hertz
Sensitivity
95.5 dB
Impedance
8 Ohm
Installation Depth
72 mm
Voice Coil Diameter
38 mm

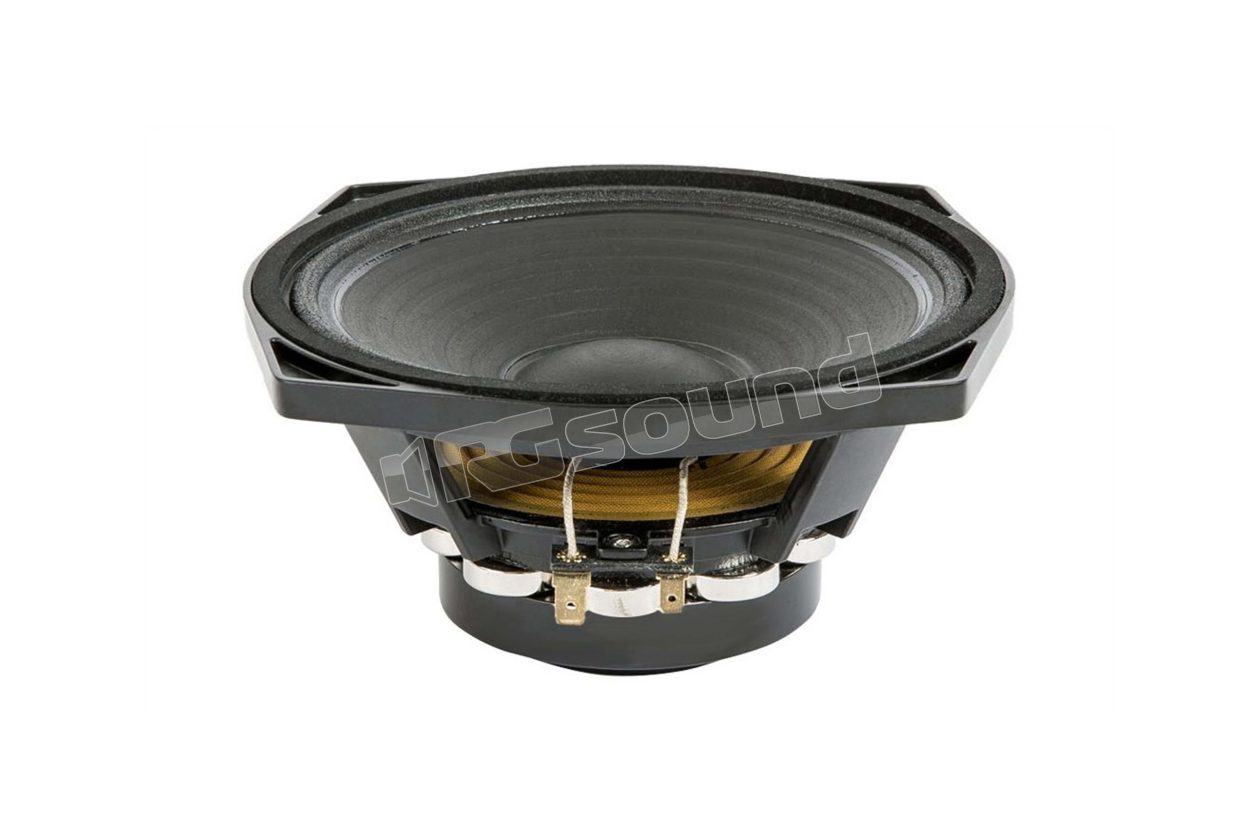

Ciare NDI6.38MR 165 mm (6.5") midrange with 38 mm sandwich coil (ISV), suitable for high-quality midrange applications, also thanks to its sensitivity of 96.5 dB

Maximum power (W) 300
Nominal power AES (W) 130
Nominal diameter (" / mm) 6.5 / 165
Nominal impedance (Ohm) 8
Voice coil diameter (mm) 38
Sensitivity 1W / 1m (dB) 96.5
Frequency response 150 - 4500 Hz
Treated paper cone
Aluminum basket
Neodymium magnet type
Nomex suspension
Fabric spider
Kapton former
Copper coil
Faston connector
Exponential cone shape
Gap height 6 mm

Ciare NDI6.38MRtechnical specifications

Overall diameter 162 mm
Total depth 72 mm
Flange thickness 9 mm
Front baffle cutout mounted diameter 145 mm
Number of mounting holes 4
Mounting hole diameter (mm) 5 mm
Bolt circle diameter 170 mm
Re 4.8 ohm
Fs 150 Hz
Qms 3
Qes 0.54
Qts 0.46
Mms 13.2 g
D 137 mm
Vas 2.5 l
BxL 10.5 Tm
Linear Mathematical Xmax 3 mm
n 1.5
Le (1kHz) 1 mH

Closed enclosure recommended
Loading volume 2.5 l
Tuning frequency
Frequency range 150 - 4500 Hz
