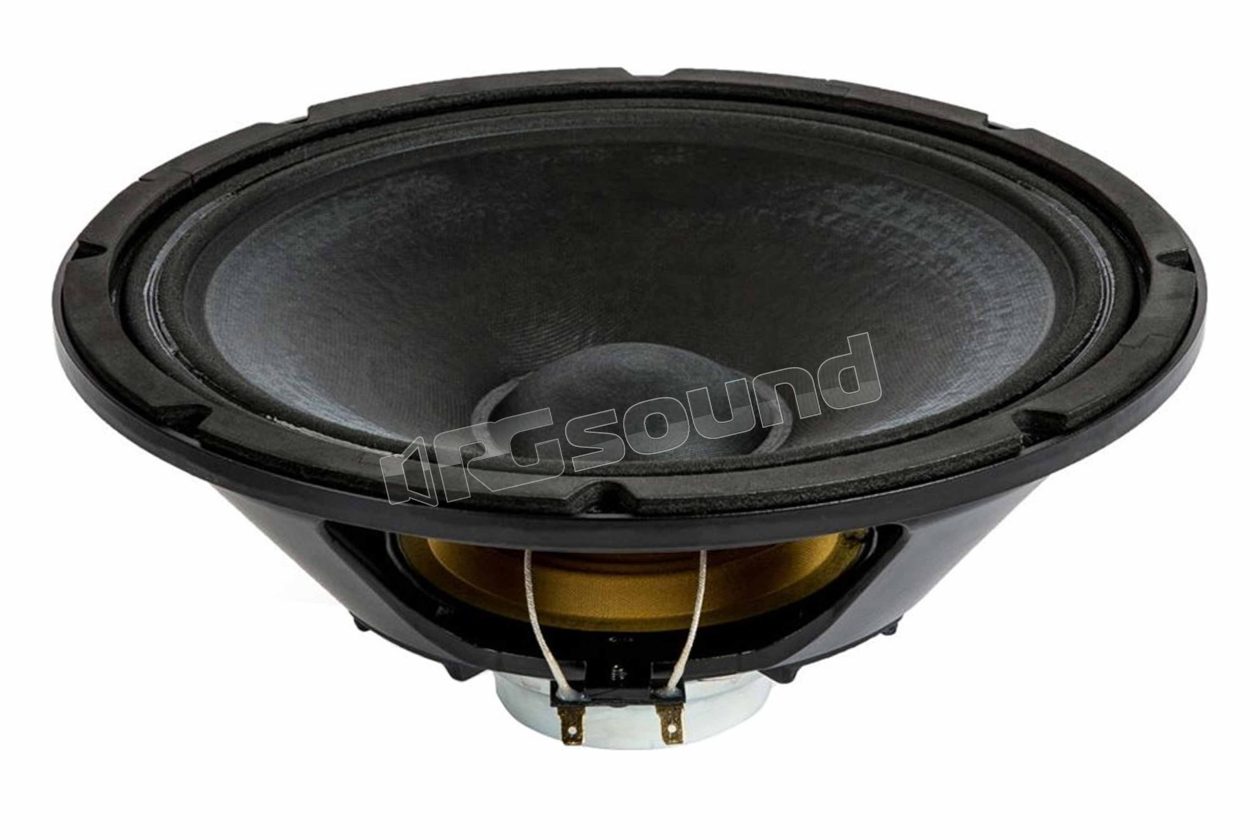

NDI12.50W 315mm woofer with copper voice coil

Ciare
Your price:
€ 109,90
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
320 mm
MAX Power
400 Watt
RMS Power
200 Watt
Frequency Response
45-5000 Hertz
Sensitivity
96 dB
Impedance
8 Ohm
Weight
3,7 Kg
Installation Depth
130 mm
Voice Coil Diameter
50 mm

Ciare NDI12.50W 8 Ohm woofer with 50 mm (2") copper voice coil, 220 W AES power handling

Aluminum moving coil former
Die-cast aluminum basket
Cone protected against weather for outdoor use
Specifically designed for two-way systems

Ciare NDI12.50W main features

Musical power 450 W

Nominal power AES 220 W

Nominal diameter 12" / 250 mm

Nominal impedance 8 Ohm

Moving coil 50 mm

Sensitivity 1W/1m 97.5 dB

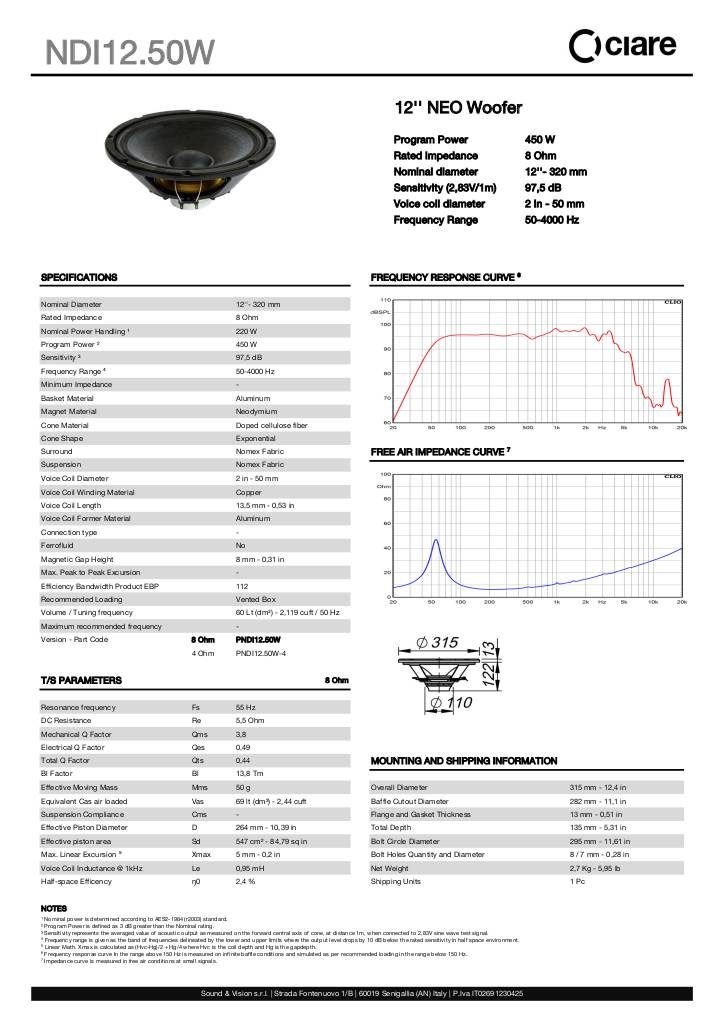

Scheda tecnica

n-20220228101002-ciare-ndi12-50w-en.pdf

Ciare NDI12.50W technical specifications

Re 5.5 ohm

Fs 55 Hz

Qms 3.8

Qes 0.49

Qts 0.44

Mms 50 g

D 264 mm

Vas 69 l

BxL 13.8 Tm

Linear Mathematical Xmax 5 mm

n 2.4

Le (1kHz) 0.95 mH

Ciare NDI12.50W materials

Basket type Die-cast aluminum

Magnet type Ferrite

Diaphragm type Treated paper

Suspension type Nomex

Dome type Nomex

Former type Aluminum

Winding type Copper

Connection type Faston

Diaphragm profile Exponential

Air gap height 8

Ciare NDI12.50W applications

Use type Two Way Systems

Recommended load type Bass reflex

Recommended reflex volume 60 l

Recommended tuning freq 50 Hz

Frequency range of use 50 - 4000 Hz

Dimensions and weights Ciare NDI12.50W

External diameter 315 mm

Depth below flange 117 mm

Flange thickness 13 mm

Panel hole 282 mm

Number of fixing holes 8

Fixing hole diameter 7 mm

Fixing hole position diameter 295 mm
