MW 182

Dynaudio

Coming soon

Your price:
€ 260,00
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
250 mm
MAX Power
1.000 Watt
RMS Power
180 Watt
Frequency Response
30 - 2.000 Hertz
Impedance
4 Ohm
Weight
1,85 Kg
Installation Depth
75 mm
Woofer Material
Cono MSP

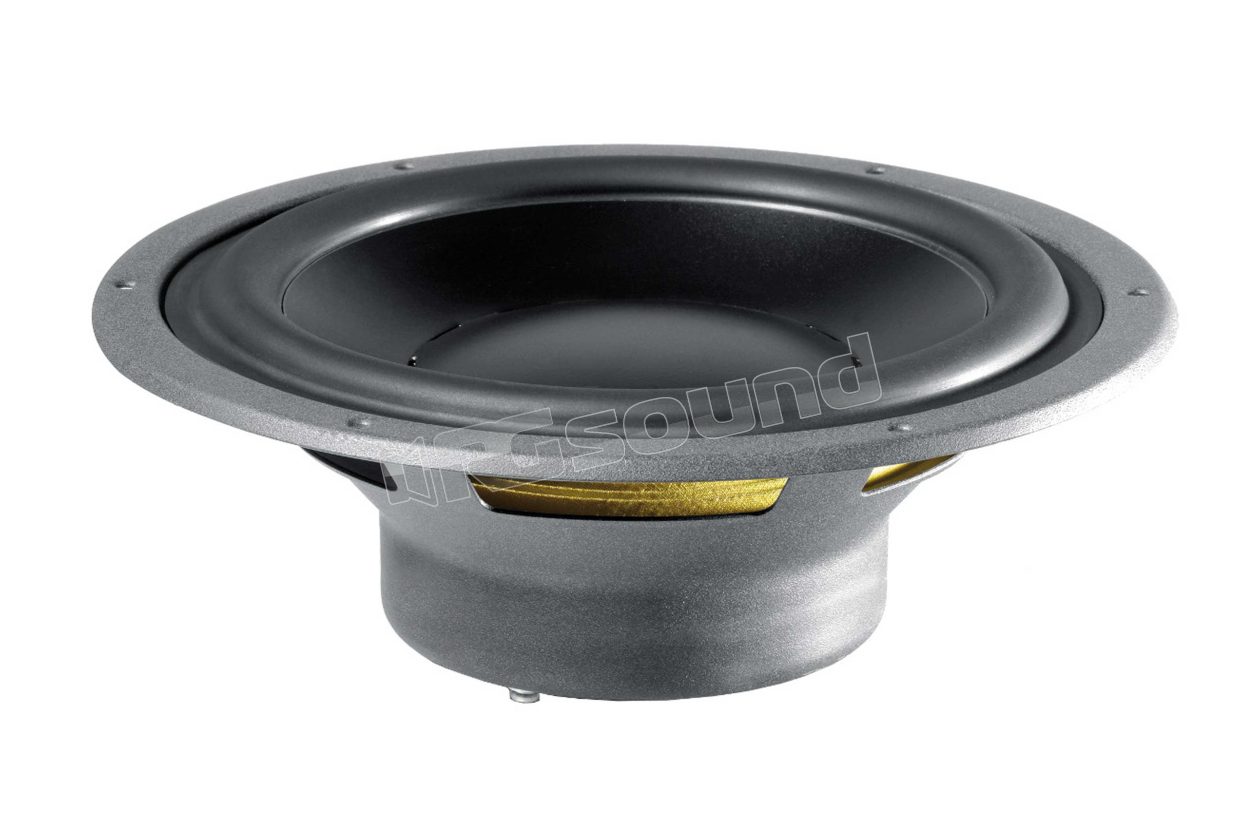

Dynaudio MW 182 Esotec is a 24 cm (10") diameter woofer equipped with an extremely large 100 mm (4") diameter voice coil with a centered dual magnet system that guides the MSP cone to ensure maximum possible power. This exceptional driver is ideal for woofer or subwoofer applications in any high-quality car audio system.

The exclusive oversized voice coils are made of pure aluminum while the voice coil wire is wound using an inimitable winding method, proprietary to Dynaudio. With this method, an extremely durable and stable voice coil is produced, not subject to deformations and other problems commonly associated with traditional voice coils for speakers. At the same time, the winding density within the magnetic gap is increased, as is the efficiency of the speaker itself.

MW 182 is suitable for a wide range of enclosure installations, both sealed and vented. The long linear excursion of the ultra-low distortion MSP cone is perfectly integrated with the rigid steel basket. MW 182 offers not only high power handling, but also deep, precise and detailed bass reproduction, without any compression.

1x Speaker MW 182

Dynaudio MW 182 Esotec technical specifications

Thiele Small Parameters
Nominal impedanceZnom4 Ω
DC resistanceRe3.7 Ω
Voice coil inductanceLe0.5 mH
Resonance frequencyfs40 Hz
Mechanical Q factorQms2.8
Electrical Q factorQes0.84
Total Q factorQts0.64
Mechanical resistanceRms3.3 kg/s
Moving mass (incl. air load)Mms36.5 g
Suspension complianceCms0.43 mm/N
Effective cone diameterd173 mm
Effective piston areaSd235 cm²
Equivalent volumeVas34 1
Force factorBl6.4 Tm
Recommended frequency range30 - 2000 Hz
Magnet and Voice Coil Properties
Voice coil diameterdc100 mm
Voice coil heighthc17 mm
Linear excursion, peak to peak9 mm
Max. excursion, peak to peak26 mm
Power Handling
Nominal long term IEC (Depending on crossover)180 W
Transient (10 ms)1000 W
Mechanical Properties
Net weight1.85 kg
Overall dimensionø 239 x 86 mm
