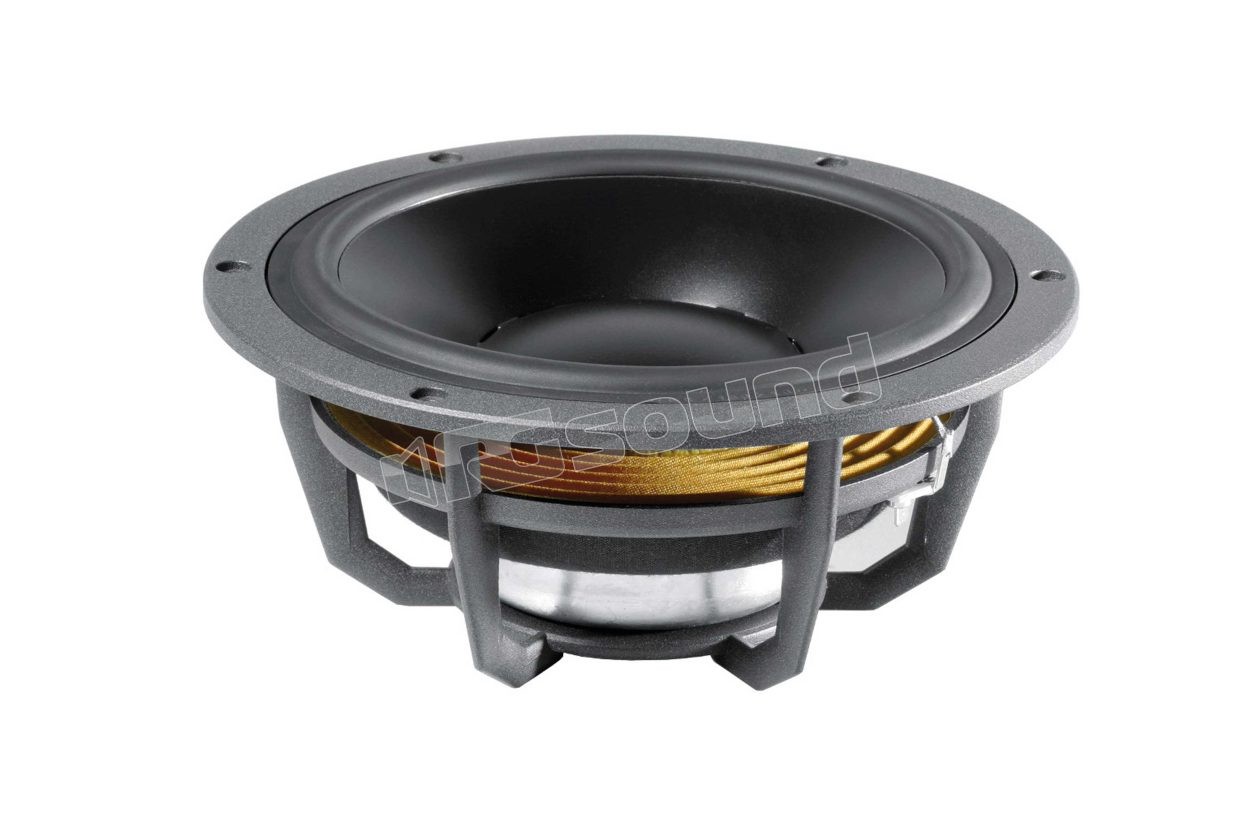

MW 172 high-quality 20cm woofer

Dynaudio

Coming soon

Your price:
€ 205,00
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
200 mm
MAX Power
1000 Watt
RMS Power
150 Watt
Frequency Response
35 - 3500 Hertz
Impedance
4 Ohm
Weight
1.3 Kg
Installation Depth
77.9 mm

Dynaudio MW 172 Esotec 20 cm (8") woofer designed for high sound performance and perfect for 2 and 3-way systems

MW 172 can be installed in a sealed enclosure, vented, or free air. It features a unique combination of regular frequency response, low distortion and extremely powerful bass, to deliver exceptional sound performance in any two or three-way system.
Dynaudio MW 172 uses a 75 mm (3") voice coil in diameter, an absolutely oversized coil to drive the one-piece cone diaphragm MSP.

Double ultra-compressed ferrite magnet with structure positioned inside the coil to maximize magnetic energy. This powerful dual magnet system uses a vented pole for additional cooling, which in turn produces greater power, efficiency and linear cone movement. This results in uniform phase response.

The large diameter voice coil of the Dynaudio MW172 provides optimal diaphragm actuation and guarantees enough space as far as power rating is concerned, while ensuring perfect control even of the smallest membrane displacement. The use of a large diameter voice coil also allows the flat geometry of the Dynaudio MSP cone membrane, which results in minimal phase delay in the crossover-midrange driver. MW 172 is a perfectly balanced driver with excellent dispersion, linear frequency response and extraordinary absence of resonance, making it ideal for a high quality two-way system.

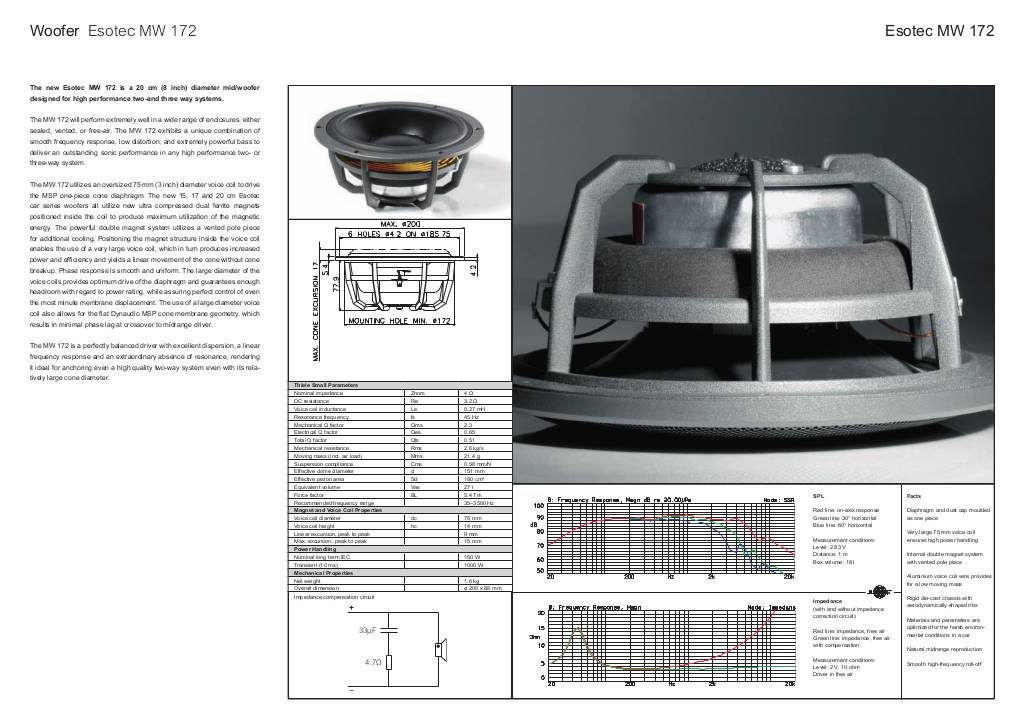

Scheda tecnica

n-20190904124629-mw172.pdf

1x MW 172 Speaker

Dynaudio MW 172 Esotec technical specifications

Nominal impedanceZnom Znom4 Ω 4 Ω
DC resistanceRe Re3.2 Ω 3.2 Ω
Voice coil inductanceLe Le0.27 mH 0.27 mH
Resonance frequencyfs fs45 Hz 45 Hz
Mechanical Q factorQms Qms2.3 2.3
Electrical Q factorQes QES0.65 0.65
Total Q factorQts Qts0.51 0.51
Mechanical resistanceRms Rms2.6 kg/s 2.6 kg/s
Moving mass (incl. air load)Mms Mms21.4 g 21.4 g
Suspension complianceCms Cms0.58 mm/N 0.58 mm/N
Effective cone diameterd d151 mm 151 mm
Effective piston areaSd Sd180 cm² 180 cm²
Equivalent volumeVas Vas27 l 27 l
Force factorBl Bl5.4 Tm Tm 5.4
Recommended frequency range35 - 3500 Hz 35-3,500 Hz
Magnet and Voice Coil Properties
Voice coil diameterdc dc75 mm 75 mm
Voice coil heighthc hc14 mm 14 mm
Linear excursion, peak to peak9 mm 9 mm
Max. excursion, peak to peak15 mm 15 mm
Power Handling
Nominal long term IEC (Depending on crossover)150 W 150 W
Transient (10 ms)1000 W 1000 W
Mechanical Properties
Net weight1.3 kg 1.3 kg
Overall dimensionø 200 x 88 mm ø 200 x 88 mm
