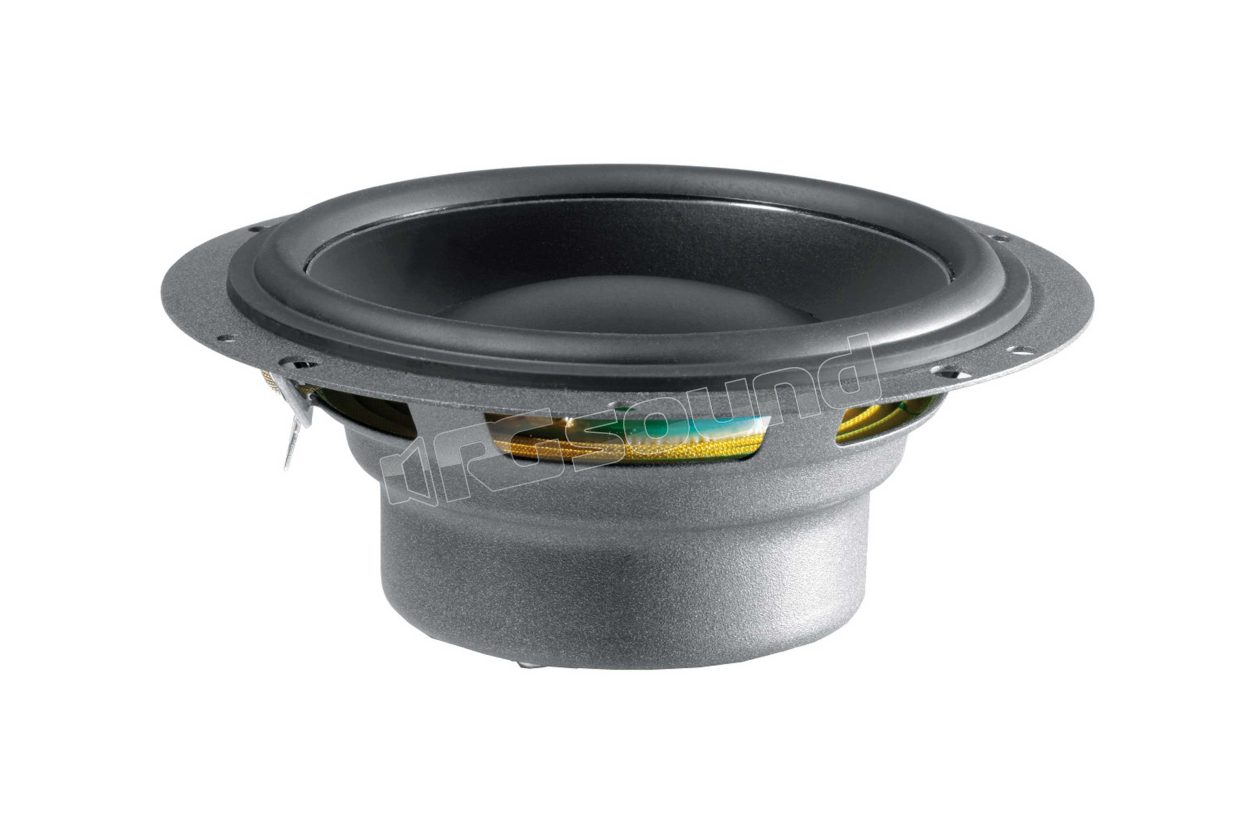

MW 162GT

Dynaudio

Coming soon

Your price:
€ 175,00
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
1000 Watt
RMS Power
120 Watt
Frequency Response
40 - 4000 Hertz
Impedance
4 Ohm
Weight
1.1 Kg
Installation Depth
62 mm

Dynaudio Esotec MW 162 GT is a special version of the MW 162 mid/bass driver, also featuring a 17 cm (6.5 inch) diameter with a 75 mm (3 inch) voice coil, housed in a slightly more compact yet rigid stamped steel basket to allow it to fit better into a wider range of factory drop-in car speaker positions.

This is particularly useful for minimizing labor by eliminating otherwise necessary vehicle modifications during installations where space is limited. Esotec MW mobile speaker woofers use all styrene butadiene rubber surrounds, which guarantee excellent control and reliability while providing increased durability against the elements.

For more dynamic power delivery in the bass region, the Esotec 15, 17 and 20 cm diameter mid/bass drivers employ Dynaudio's traditional dual magnet motor system and feature new ultra-compressed high-density ferrite magnets enhanced. The new magnet systems provide extremely controlled and incredibly precise voice coil movement. The result is improved dynamics and greater fidelity to the original musical signal. Dramatic musical passages are thus reproduced accurately and without compromise. And with greater cone excursion, even the most powerful transients are delivered without compression.

Woofer supplied without grilles.

Esotec MW 162 GT Key Features:

Diaphragm and dustcap molded in one piece
The large 75 mm voice coil ensures high power
Internal dual magnet system with vented pole
Aluminum voice coil wire offers reduced moving mass
Rigid die-cast frame with aerodynamic shaped ribs
Regular high frequency roll-off
Natural midrange reproduction

Technical Parameters
Nominal impedance Znom 4 Ω
DC resistance Re 3.0 Ω
Coil inductance Le 0.22 mH
Resonance frequency fs 60 Hz
Mechanical Q factor Qms 2.1
Electrical Q factor QES 0.63
Total Q factor Qts 0.48
Mechanical resistance Rms 3 kg/s
Mass displacement (including air load) Mms 16.8 g
Suspension compliance Cms 0.42 mm/N
Effective cone diameter d 124 mm
Effective piston area Sd 120 cm²
Equivalent volume Vas 8.6 l
Force factor Bl 5.5 Tm
Recommended frequency range 40 - 4000 Hz
Magnet and Voice Coil

Coil diameter

dc 75 mm
Voice coil height hc 10.9 mm
Linear excursion, peak to peak 6 mm
Max. excursion, peak to peak 17 mm
Power Handling
Nominal power long-term IEC (depending on crossover) 120 W
Maximum power (10 ms) 1000 W
Dimensions and Weight
Net weight 1.1 kg
Diameter and height ø 166 x 71 mm


Scheda tecnica

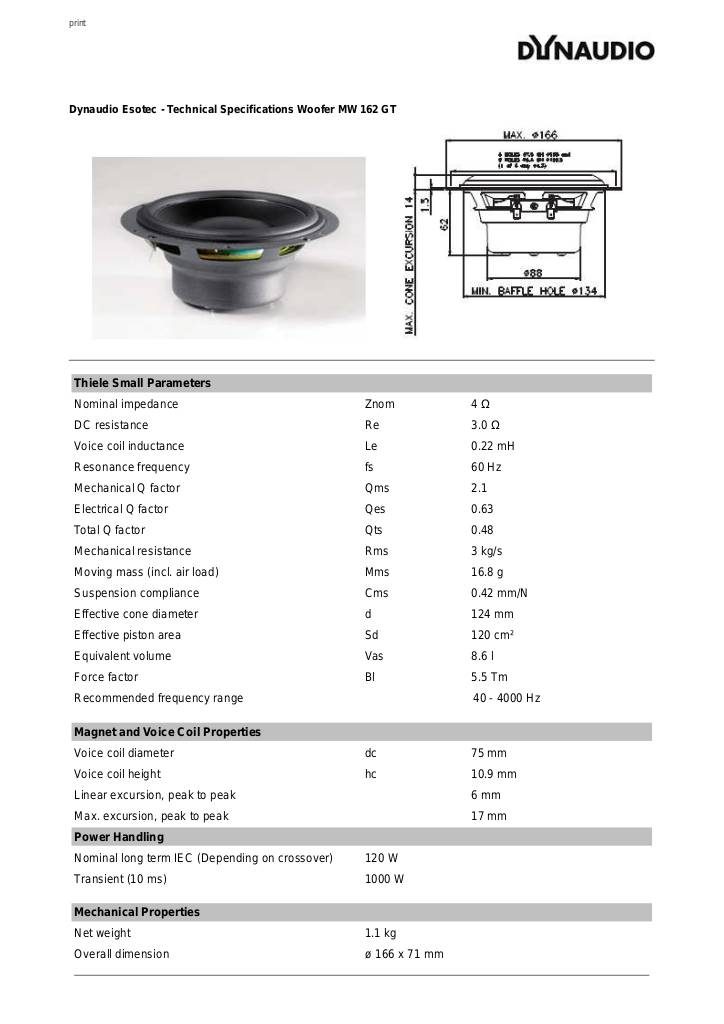

20130507105827-dynaudio-technical-specifications-woofer-mw-162-gt.pdf

Brochure

20130507105952-dyn-automotive-brochure-int.pdf

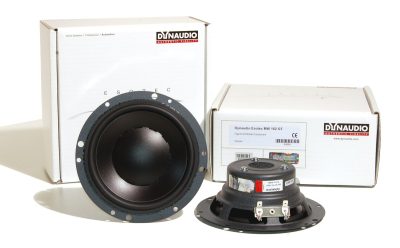

1x MW 162 GT Speaker
