MW 152

Dynaudio

Coming soon

Your price:
€ 165,00
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
150 mm
MAX Power
1000 Watt
RMS Power
100 Watt
Frequency Response
55 - 3500 Hertz
Sensitivity
88 dB
Impedance
4 Ohm
Weight
1.1 Kg
Installation Depth
63 mm
Woofer Material
Materiale composito

Dynaudio MW 152 midwoofer with MSP (magnesium silicate polymer) cone, 75 mm voice coil, 145.5 mm external diameter. Impedance 4 Ohm.

MW 152 is a compact 15 cm diameter (5.75") driver with a 75 mm (3") diameter voice coil. As with Dynaudio's entire woofer range, the cone diaphragm is made of proprietary MSP (magnesium silicate polymer) material developed by Dynaudio - a low distortion material characterized by a lack of coloration which proves essential for Dynaudio's exceptional sound. The MW 152 shows uniform frequency response both on-axis and off-axis, with incredibly low distortion and also offers excellent midrange reproduction and represents the perfect choice for any small, high-performance two or three-way system.

The woofer motor assemblies of the mid / woofer MW 152 are integrated into rigid die-cast aluminum frames, optimized to eliminate air turbulence and resonance and the negative effects thereof. The aerodynamically shaped ribs of Dynaudio's die-cast driver frames serve to eliminate virtually all reflections and tonal aberrations created by traditional driver frames and ensure the highest degree of mechanical performance at extremely reduced weight.

The low compliance of MW 152's suspension makes it perfectly suited to smaller enclosures typical of most car installations, while also allowing it to be used without a dedicated enclosure in free-field mounting applications.

Woofer supplied without grille.

Key features Dynaudio MW 152:

Diaphragm and dust cap molded in one piece
The large 75 mm voice coil ensures high power handling
Internal dual magnet system with vented pole piece
Aluminum voice coil wire offers reduced moving mass
Rigid die-cast frame with aerodynamically shaped ribs
Materials and parameters are optimized for the demanding environmental conditions in a car
Regular high frequency roll-off

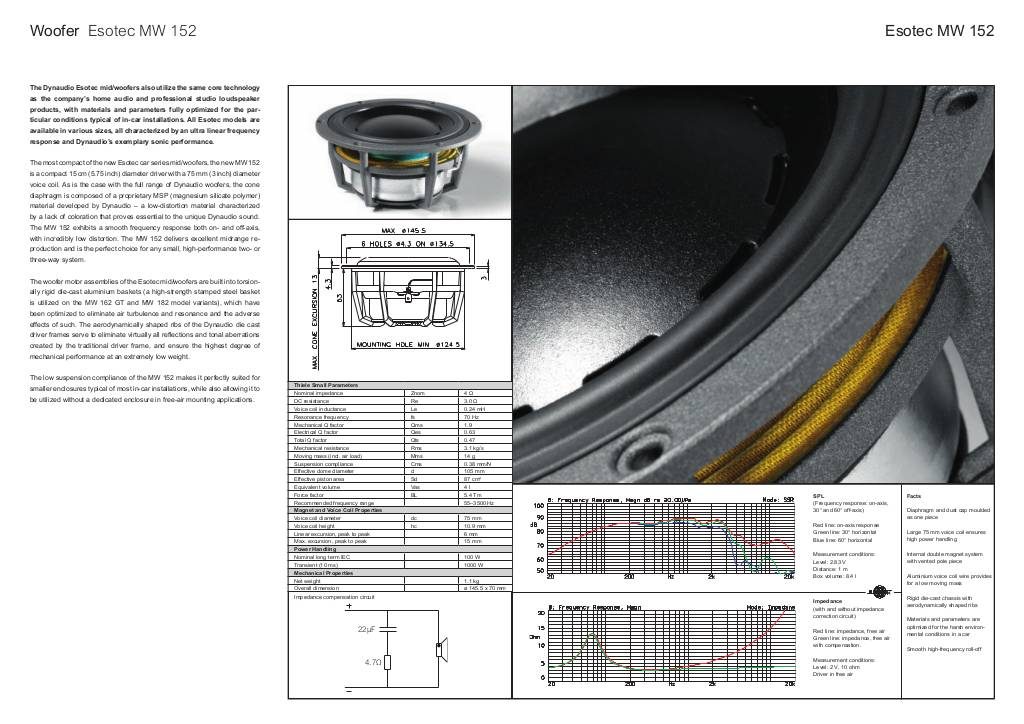

Scheda Tecnica e parametri acustici

n-20190830125003-mw152.pdf

1x MW 152 Speaker

Dynaudio MW 152 technical specifications

Bass-Midrange
Power handling 100 Watt
Impedance 4 Ohm
Frequency from 55 Hz
Max. Frequency 3.5 kHz

Speaker diameter 145.5 mm
Mounting hole diameter 124.5 mm
Depth (total) 63 mm
Frame material die-cast aluminum
Voice coil Ø 75 mm
Voice coil height 10.9 mm

Resonance fs fs: 70 Hz
Mechanical Qms: 1.9
Q Electrical Q: 0.63
Total Qts Q: 0.47
Air volume: 4 liters
DC resistance Re: 3.0 Ohm
Coil inductance Le: 0.24 mH
