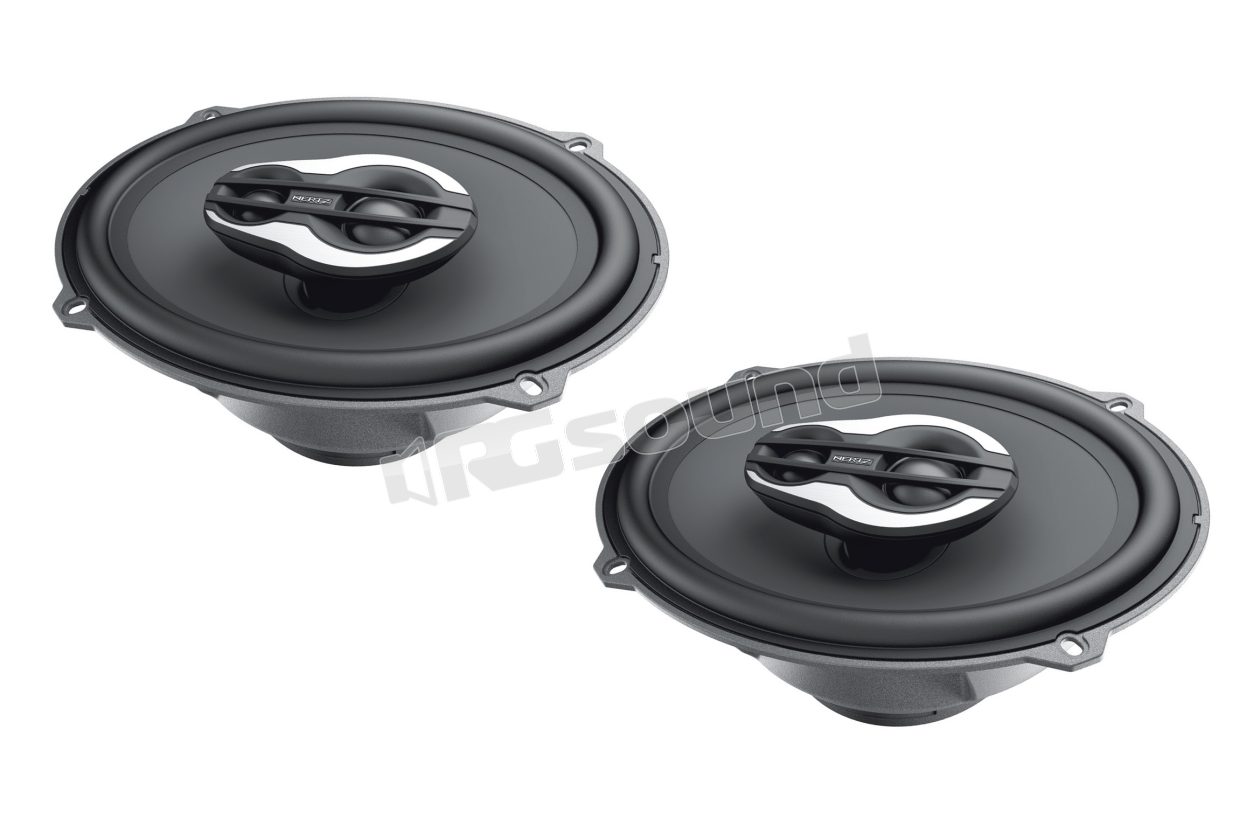

MPX 690.3 Mille Pro series 6x9'' 3-way coaxial speakers

Hertz
Your price:
€ 249,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Coaxial
Speaker Size
6x9''
Coaxial Type
3-way
Frequency Response
30 - 24.000 Hertz
MAX Power
260 Watt
RMS Power
130 Watt
Sensitivity
94 dB
Impedance
4 Ohm
Woofer Material
cellulosa pressata e fibra di cotone
Tweeter Material
Neomimio e cupola in Tetolon

Hertz MPX 690.3 Pair of coaxial 6x9" three-way speakers Mille Pro Series - Grilles included

The three-way coaxial MPX 690.3, optimized for headliner installations, features a tweeter with 28mm Tetolon dome, Neodymium magnet and acoustic lens that maximizes off-axis dispersion. A supertweeter reinforces the emission of the highest frequencies while the basket's radial ventilation system ensures low operating temperatures. The sound quality has an extraordinary impact, comparable to a three-way kit.

MPX 690.3 Features

  • Woofer voice coil made of pure copper 38 mm wound in a Polyamide former for exceptional power handling and reproduction free from dynamic compression.
  • Pressed paper cone with cotton fiber that combines rigidity and lightness, for extended frequency response.
  • Wide rubber surround designed for long excursion and excellent sound damping.
  • Oversized ferrite magnet combined with low-carbon-content pole plates, for lower distortion at high power levels.
  • Aerodynamic aluminum alloy basket, therefore acoustically transparent, to eliminate obstacles to the rear emission of the diaphragm.
  • Anti-vibration rubber magnet cover.
  • Neodymium tweeter with Tetolon fiber dome with 28 mm voice coil, for undistorted midrange reproduction.
  • Neodymium supertweeter in Tetolon fiber with 20 mm voice coil, to compensate for the natural fall in frequency response due to horizontal installation of the speakers.
  • Tweeter faceplate with geometry optimized with FEM (Finite Element Modeling) simulations, to provide excellent off-axis frequency response up to 24kHz and optimally balance the emission of the two tweeters.
  • Metal grille with Hertz logo in aluminum for full protection and internal grille with attractive look and powder coating.

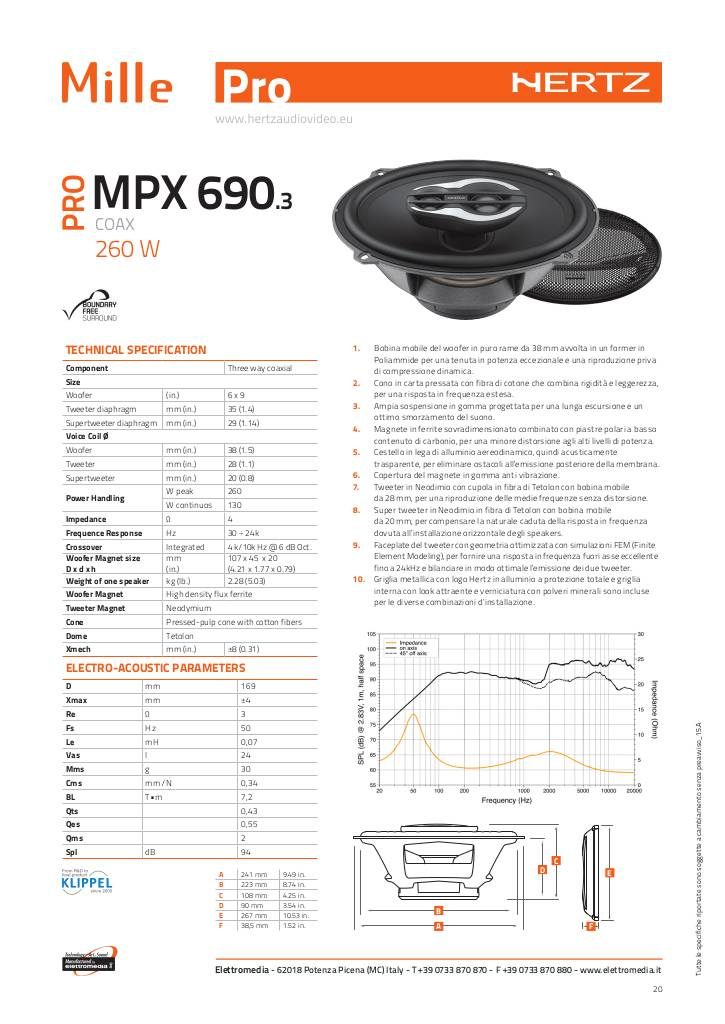

Scheda tecnica

20151014121704-mpx690-3.pdf

Hertz MPX 690.3 Technical specifications

  • Woofer dimensions 6 x 9"
  • Tweeter diameter 35 mm
  • Supertweeter diameter 29 mm
  • Voice coil Ø:
    • Woofer 38 mm
    • Tweeter 28 mm
    • Supertweeter 20 mm
  • RMS power 130 W
  • Maximum power 260 W
  • Impedance 4 Ω
  • Sensitivity 94 dB
  • Frequency response 30Hz ÷ 24kHz
  • Integrated crossover 4 k/10k Hz @ 6 dB Oct.
  • Woofer magnet dimensions (D x d x h) 107 x 45 x 20 mm
  • Weight of a single speaker kg (lb.) 2.28 (5.03)
  • Woofer magnet High density flux in ferrite
  • Tweeter magnet in Neodymium
  • Woofer cone in treated cellulose and cotton fiber
  • Tweeter dome in Tetolon
