MPX 165.3 16.5 cm Coaxials Mille Pro Series

Hertz
Your price:
€ 179,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Coaxial
Speaker Size
165 mm
Coaxial Type
2-way
Frequency Response
45 - 21.500 Hertz
MAX Power
200 Watt
RMS Power
100 Watt
Sensitivity
92 dB
Impedance
4 Ohm
Woofer Material
cellulosa pressata e fibra di cotone
Tweeter Material
Neomimio e cupola in Tetolon

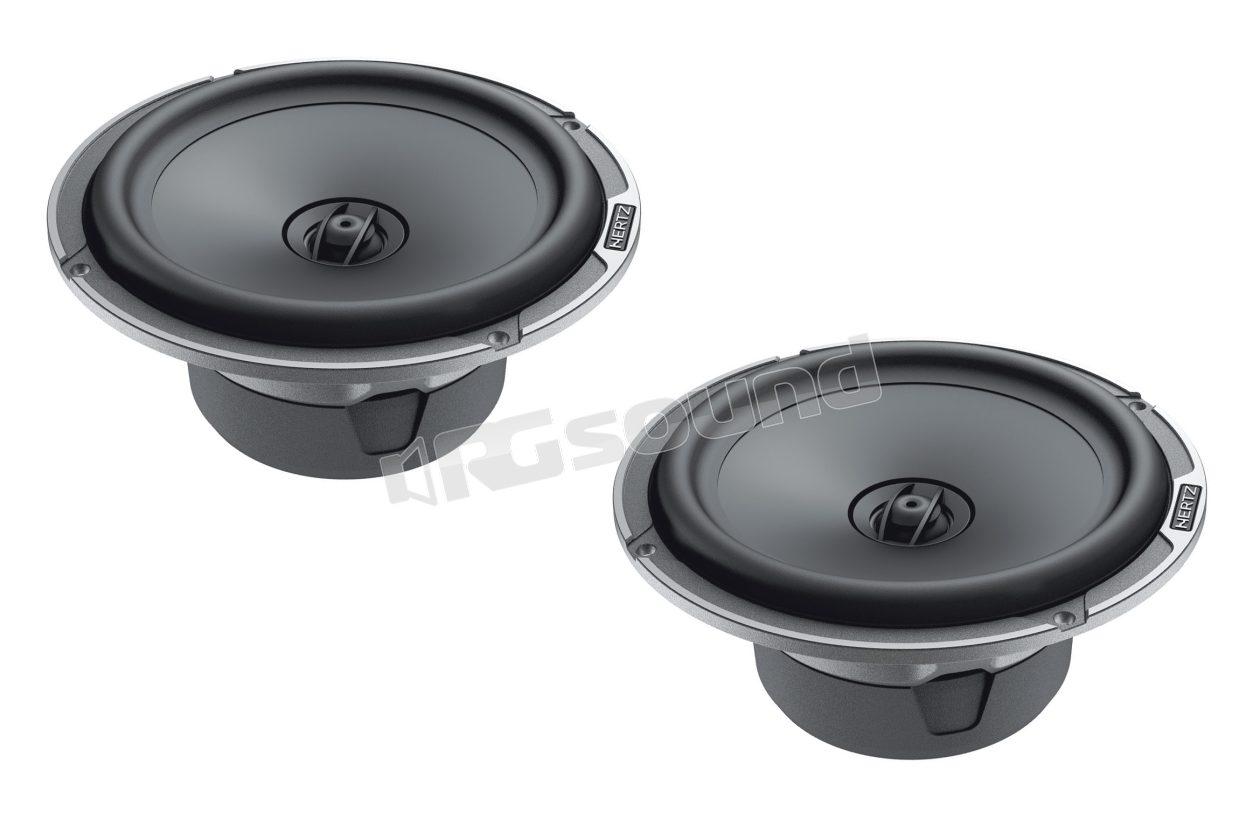

Hertz MPX 165.3 Pair of 16.5 cm coaxial speakers Mille Pro Series

The Mille PRO coaxial speakers have a sound stage and power handling comparable to those of two-way systems. The tweeter concentric to the woofer of the MPX 165.3 coaxial allows a single point of emission at linear phase, for a natural sound equipped with a detailed sound-stage.


Thanks to the "Center Tuning Duct" geometry, the tweeter's resonance frequency is particularly low and the internal use of damping materials linearizes its emission. The acoustic lens optimizes the off-axis response, a typical situation for the coaxial installed in the door, and the woofer with 36 mm voice coil generates deep and controlled low frequencies.

The optional grilles MPG 165.3 for the coaxial speakers are sold separately.

MPX 165.3 Features

  • Coaxial concentric tweeter integrated into the woofer voice coil, to obtain a single point of emission and virtually recreate the sound-stage of a live performance.
  • Soft dome tweeter in Tetolon fiber with 20 mm voice coil, characterized by the "Center Tuning Duct" geometry, for a lower resonance frequency and reduced harmonic distortion.
  • Tweeter support that acts as a rear chamber, sized for a low Fs, to ensure a well-damped high frequency roll-off, allowing a low crossover point for the cut-off frequency.
  • Woofer voice coil in pure copper 36 mm wound in a Polyamide former, for excellent power handling and reproduction free from dynamic compression.Pressed paper cone with cotton fiber that combines rigidity and lightness, for an extended frequency response. Cone geometry optimized to integrate maximally with the tweeter emission ensuring phase linearity at the crossover point.
  • "Boundary Free" rubber surround, for better efficiency and more extended mid-bass frequencies.
  • Oversized ferrite magnet combined with low carbon content pole plates, for lower distortion at high power levels.
  • Aluminum alloy basket with low depth, acoustically transparent with elegant diamond cut and characterized by the Hertz logo in aluminum.
  • Anti-vibration rubber magnet cover, to dampen spurious vibrations.

Scheda tecnica

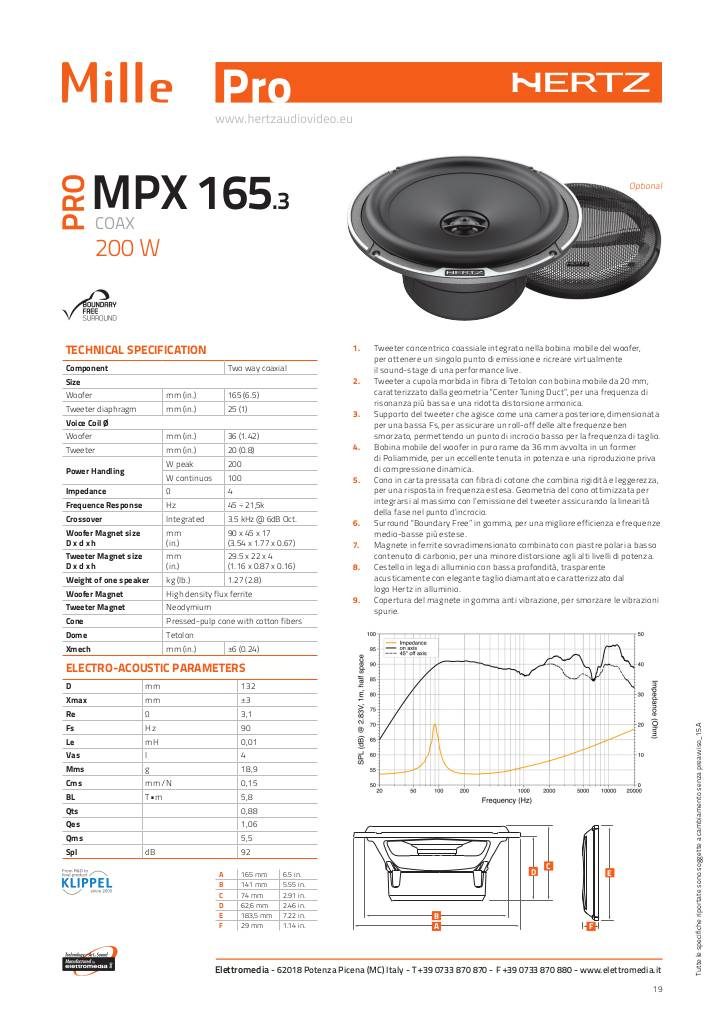

20151013181107-mpx165-3.pdf

Hertz MPX 165.3 Technical Specifications

  • Woofer Size 165 mm
  • Tweeter Diameter 25 mm
  • Voice coil Diameter:
    • Woofer mm 36 mm
    • Tweeter mm 20 mm
  • RMS Power 100 W
  • Maximum Power 200 W
  • Impedance 4Ω
  • Sensitivity 92 dB
  • Frequency Response 45Hz ÷ 21.5 kHz
  • Integrated Crossover 3.5 kHz @ 6dB Oct.
  • Woofer magnet Dimensions (D x d x h) 90 x 45 x 17 mm
  • Tweeter magnet Dimensions (D x d x h) 29.5 x 22 x 4 mm
  • Weight of a single speaker 1.27 Kg
  • Woofer magnet "High density flux" in ferrite
  • Tweeter Magnet in Neodymium
  • Woofer cone in pressed cellulose and cotton fiber
  • Tweeter dome in Tetolon
€ 179,00 Price incl. VAT
