MPK 165P.3 2-way 16.5 cm 3 Ohm kit, Mille Pro series

Hertz
Your price:
€ 299,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
45 - 22.500 Hertz
Woofer Size
165 mm
Tweeter Size
29 millimetri
MAX Power
230 Watt
RMS Power
115 Watt
Sensitivity
93 dB
Impedance
3 Ohm
Woofer Material
cellulosa pressata e fibra di cotone
Tweeter Material
Neomimio e cupola in Tetolon

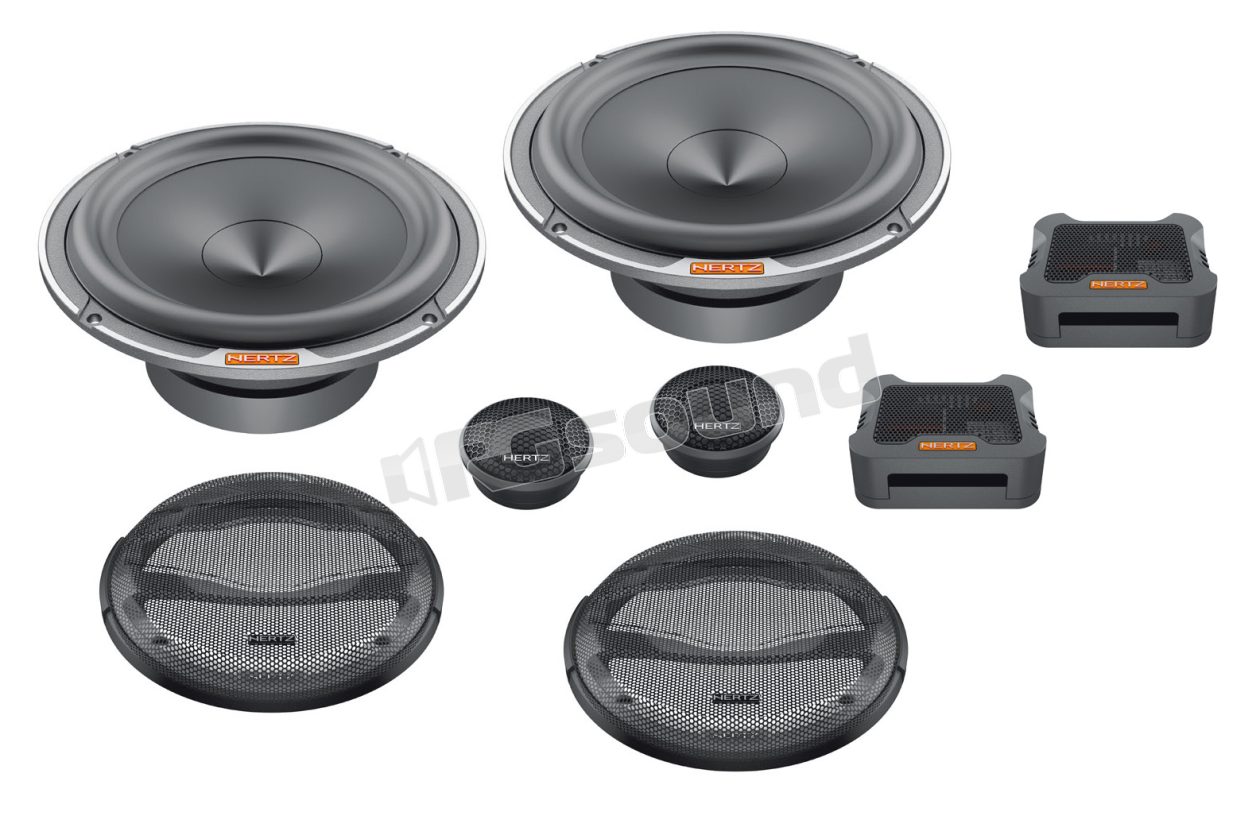

Hertz MPK 165P.3 Two-Way Kit Mille Pro Series

Composed of a pair of woofers MP 165P.3, a pair of tweeters MP 25.3 and dedicated crossovers MPCX 2P.3 with speaker grilles included. The energy in the mid-bass range of the MPK 165P.3 system makes the listening experience unique, creating the ideal condition when combined with a powerful subwoofer section.

The electroacoustic parameters of the MP 165P.3 woofer have been shaped to give it the character of an authentic mid-bass with pure and solid sound, designed for high-dynamic listening. The voice coil with a height of 14 mm, in addition to having greater power handling, has a nominal impedance of 3 Ω.

This allows you to maximize the power of Hertz HCP and HDP amplifiers and all electronics stable on 2 Ω loads. The 95 mm diameter ferrite magnet guarantees the coil a linear excursion of +/- 4.5 mm, always maintaining maximum control. The Boundary Free Surround suspension moves a greater mass of air and the V-cone® profile of the cone improves off-axis dispersion, the real listening condition in a car.

The refined aluminum alloy basket neutralizes unwanted vibrations. The tonal balance of the MPK 165P.3 system is entrusted to the MPCX 2P.3 crossover which employs a copper coil with 1 mm diameter wire for filtering the MP 165P.3, which with its 3 Ω nominal impedance requires high impulse currents.

The 12dB/Octave filter network of the MP 25.3 tweeter is made with a high-quality 160V bi-metallized polyester capacitor and an air-wound inductor. A level control (0 / +2.5dB) of the tweeter (MP 25.3) allows you to adapt the system response to the listener's preferences and based on the installation position of the components.

MPK 165P.3 Features

MP 25.3 Tweeter

  • Soft dome in Tetolon fiber for natural and detailed reproduction of musical nuances.
  • "Center Tuning Duct" geometry for lower resonance frequency and reduced harmonic distortion.
  • Neodymium magnet with high-density magnetic flux, optimized for maximum control during high-energy dynamic transients in the mid-high frequency range.
  • 25 mm voice coil cooled with ferrofluuid.
  • Rear chamber filled with selected and dimensioned damping material for a lower Fs, to ensure a well-damped roll-off of high frequencies, allowing a low crossover point for the cutoff frequency.
  • Faceplate geometry optimized with FEM (Finite Element Modeling) technique for high linearity with off-axis installations.
  • Wide variety of installation accessories for easy integration in pre-wired systems.

MP 165P.3 Woofer

  • Nominal impedance of 3 Ω to take full advantage of amplifier power.
  • Pure copper voice coil 14 mm high wound on a Polyamide former for exceptional power handling.
  • Magnet with a diameter of 95 mm to maximize control throughout the entire excursion.
  • V-cone® exponential profile in pressed paper with cotton fibers to combine rigidity and lightness for extended frequency response. Cone profile geometrically optimized for maximum linearity and dispersion in the mid-frequency range.
  • "Boundary Free" surround in rubber for better efficiency and extended mid-bass frequencies.
  • Aluminum alloy basket with low depth, acoustically transparent with elegant diamond-cut and characterized by the Hertz logo in aluminum.
  • Metal grille with aluminum Hertz logo for full protection and internal grille with attractive look and mineral powder coating are included for various installation combinations.

Crossover MPCX 2P.3

  • Two-position switch (0 / +2.5 dB) to adjust the tweeter level and optimize transducer output.
  • 160 V bi-metallized capacitors with high-quality polyester film with ultra-low DF value for maximum sound transparency and clear high frequencies.
  • Pure copper coils 1 mm in diameter with low series resistance for reduced dissipation losses in the woofer section where high current transients are required.
  • Compact design for installation simplicity, with ventilation grill on the top side for efficient heat dissipation.

Dynamat
DYN10612 Dynamat Superlite Lightweight anti-vibration damping material for car soundproofing - 3 sheets 47 x 82 cm Dynamat
Dynamat DYN10612 Dynamat Superlite Lightweight anti-vibration damping material for car soundproofing - 3 sheets 47 x 82 cm
Price incl. VAT
€ 71,90
Dynamat
DYN10425 XTREME wedge pak pack with 1 sheet of 81.2 x 45.7 cm Dynamat
Dynamat DYN10425 XTREME wedge pak pack with 1 sheet of 81.2 x 45.7 cm
Price incl. VAT
€ 29,90
Dynamat
DYN10435 Xtreme DOOR KIT Damping and soundproofing material for doors Dynamat
Dynamat DYN10435 Xtreme DOOR KIT Damping and soundproofing material for doors
Price incl. VAT
€ 79,00
Dynamat
DYN10415 Xtreme Speaker KIT Anti-vibration damping for car speakers Dynamat
Dynamat DYN10415 Xtreme Speaker KIT Anti-vibration damping for car speakers
Price incl. VAT
€ 16,90

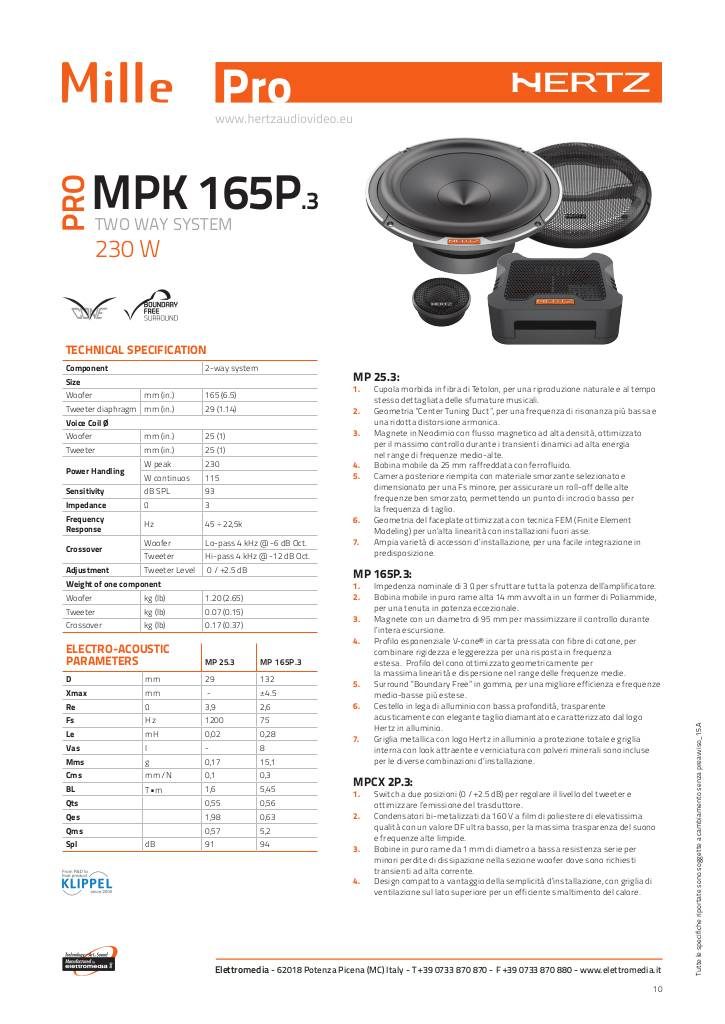

Scheda tecnica

20151014121539-mpk165p-3.pdf

Hertz MPK 165P.3 Technical Specifications

  • Woofer Size 165 mm
  • Tweeter Diameter 29 mm
  • Voice Coil Ø
    • Woofer 25 mm
    • Tweeter 25 mm
  • Nominal Power 115 W
  • Maximum Power 230 W
  • Sensitivity 93 dB SPL
  • Impedance 3Ω
  • Frequency Response 45Hz ÷ 22.5kHz
  • Crossover
    • Woofer Lo-pass 4 kHz @ -6 dB Oct.
    • Tweeter Hi-pass 4 kHz @ -12 dB Oct.
    • Tweeter level adjustment 0 / +2.5 dB
  • Weight of each individual component
    • Woofer 1.20 Kg
    • Tweeter 0.07 Kg
    • Crossover 0.17 Kg
€ 299,00 Price incl. VAT
