MPK 165.3 2-way 16.5 cm 4 Ohm kit, Mille Pro series

Hertz
Your price:
€ 279,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
2-way separate kit
Woofer Size
165 mm
Tweeter Size
29 millimetri
MAX Power
220 Watt
RMS Power
110 Watt
Sensitivity
92 dB
Impedance
4 Ohm
Woofer Material
cellulosa pressata e fibra di cotone
Tweeter Material
Neomimio e cupola in Tetolon

Hertz MPK 165.3 Two-Way Kit Mille Pro Series

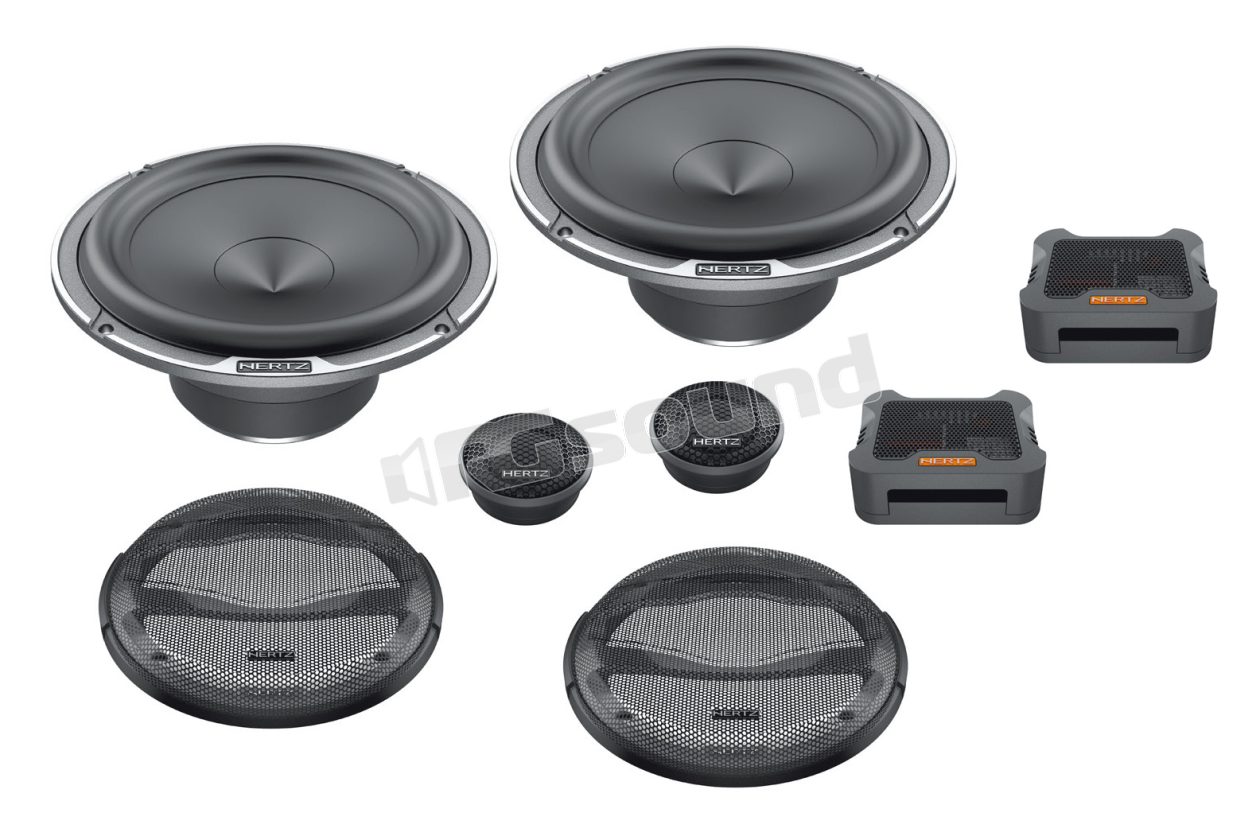

Composed of a pair of woofers MP 165.3, a pair of tweeters MP25.3 and a pair of dedicated crossovers MPCX 2.3, the MPK 165.3 system has been designed to provide extended low frequency response, even in vehicles where there is no space for a subwoofer. Thanks to V-cone® and Boundary Free Surround technologies, the MP 165.3 woofer has excellent dispersion characteristics and generates high sound pressure levels with compact dimensions.

The dedicated crossover MPCX 2.3 is designed to take advantage of the wide extension of the MP 165.3 woofer, ensuring a natural transition to the tweeter MP25.3 and maximum naturalness of emission. The woofer's filter coil made of copper maximizes woofer efficiency. The MPCX 2.3 crossover is equipped with tweeter level control (0/+2 dB) to adjust the emission level of the MP 25.3 relative to the woofer.

MPK 165.3 Features

Tweeter MP 25.3

  • Soft dome in Tetolon fiber, for natural and at the same time detailed reproduction of musical nuances.
  • "Center Tuning Duct" geometry, for a lower resonance frequency and reduced harmonic distortion.
  • Neodymium magnet with high density magnetic flux, optimized for maximum control during high energy dynamic transients in the midrange-treble frequency range.
  • 25 mm voice coil cooled with ferrofluid.
  • Rear chamber filled with selected and sized damping material for lower Fs, to ensure a well-damped roll-off of high frequencies, allowing a low crossover point for the cutoff frequency.
  • Faceplate geometry optimized with FEM (Finite Element Modeling) technique for high linearity with off-axis installations.
  • Wide variety of installation accessories, for easy integration in pre-wiring.

Woofer MP 165.3

  • Voice coil in pure copper wound on Polyamide former for high power handling together with low voice intermodulation.
  • Exponential V-cone® profile in pressed paper with cotton fibers to combine stiffness and lightness for extended frequency response. Cone profile geometrically optimized for maximum linearity and dispersion in the midrange frequency range.
  • "Boundary Free" surround in rubber, for better efficiency and extended low midrange frequencies.
  • Ferrite magnet with high density flux combined with low carbon content pole plates, for lower distortion at high power levels.
  • Basket in aluminum alloy with low depth, acoustically transparent with elegant diamond-cut and characterized by Hertz logo in aluminum.
  • Metal grille with Hertz logo in aluminum for full protection and internal grille with attractive look and painted with mineral powder are included for the various installation combinations.

Crossover MPCX 2.3

  • Two-position switch (0 / +2 dB) to adjust tweeter level and optimize transducer emission.
  • 160 V bi-metallized capacitors with polyester film of very high quality with an ultra-low DF value, for maximum sound transparency and clear high frequencies.
  • Coils in pure copper 1 mm diameter with low series resistance for lower dissipation losses in the woofer section where high current transients are required.
  • Compact design for the benefit of installation simplicity, with ventilation grid on the top side for efficient heat dissipation.

ATTENTION: Grilles included

Scheda tecnica

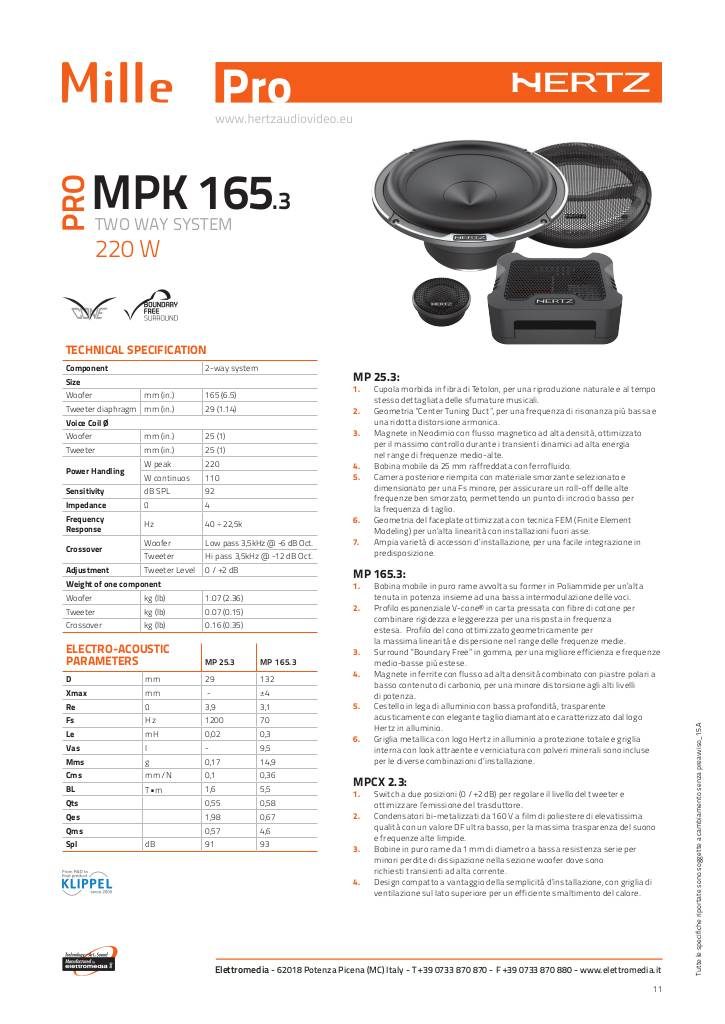

20151014125253-mpk165-3.pdf

Hertz MPK 165.3 Technical Specifications

  • Woofer Size 165 mm
  • Tweeter Diameter 29 mm
  • Voice Coil Ø
    • Woofer 25 mm
    • Tweeter mm 25 mm
  • Nominal Power 110 W
  • Maximum Power 220 W
  • Sensitivity 92 dB SPL
  • Impedance Ω 4
  • Frequency Response 40Hz ÷ 22.5kHz
  • Crossover:
    • Woofer Low pass 3.5kHz @ -6 dB Oct.
    • Tweeter Hi pass 3.5kHz @ -12 dB Oct.
    • Adjustment Tweeter Level 0 / +2 dB
  • Weight of each component:
    • Woofer 1.07 Kg
    • Tweeter 0.07 Kg
    • Crossover 0.16 Kg
