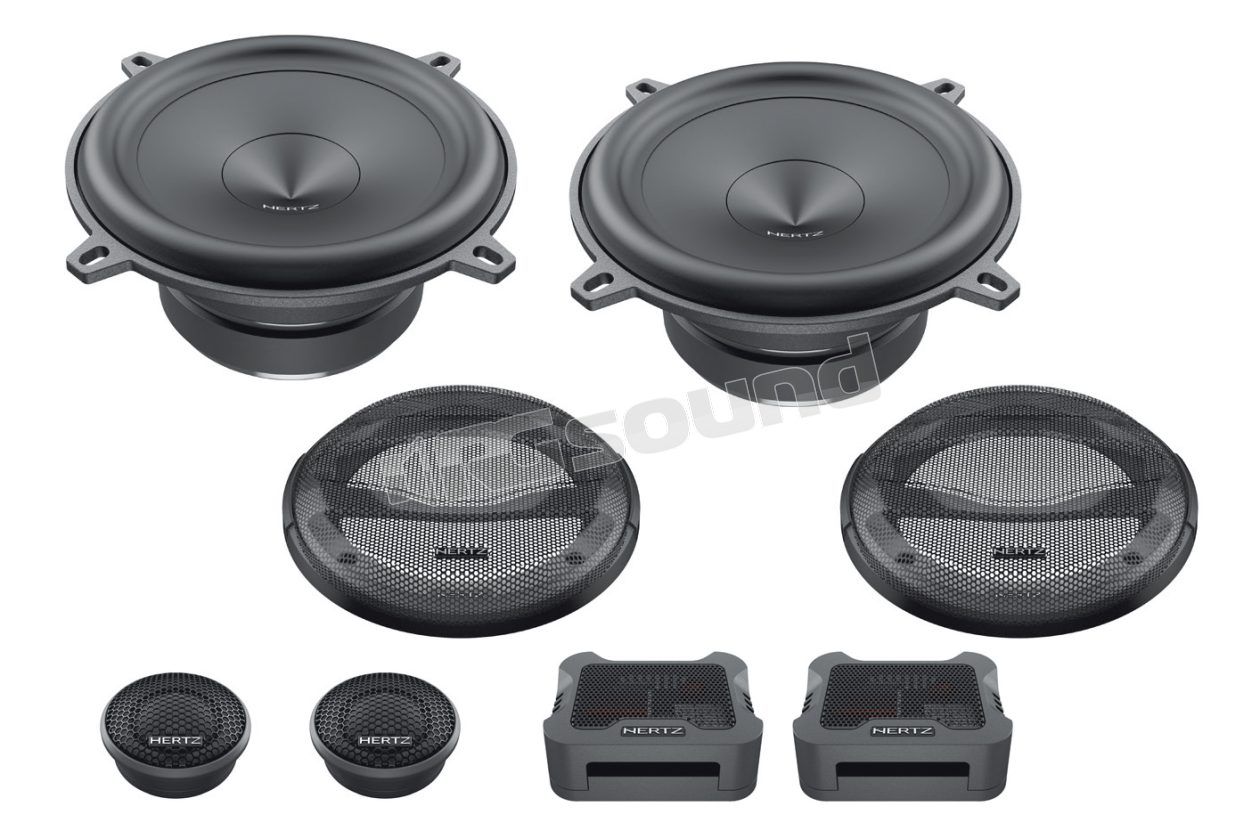

Hertz MPK 130.3 Two-way 130 mm Mille Pro Series Kit with MP 130.3 woofer, MP 25.3 tweeter and MPCX 2.3 crossover

The MPK 130.3 system maintains the same tonal setting as the MPK 165.3. The Boundary Free Surround suspension of the MP 130.3 woofer maximizes the SPL pressure generated with the same installation diameter, while the generous travel of the moving assembly ensures high power handling.
The dedicated MPCX 2.3 crossover is designed to exploit the wide extension of the MP 165.3 and MP 130.3 woofers in the MPK 165.3 and MPK 130.3 systems, ensuring a natural transition towards the MP25.3 tweeter, for maximum naturalness of emission. The woofer filter coil with 1 mm diameter copper maximizes woofer efficiency. The MPCX 2.3 crossover is equipped with tweeter level control (0 / +2 dB) to adjust the emission level of the MP 25.3 relative to the woofer.

MPK 130.3 Features

MP 25.3 Tweeter:

Soft Tetolone fiber dome, for natural and detailed reproduction of musical nuances.

  • "Center Tuning Duct" geometry, for a lower resonance frequency and reduced harmonic distortion.
  • Neodymium magnet with high density magnetic flux, optimized for maximum control during high energy dynamic transients in the mid-high frequency range.
  • 25 mm voice coil cooled with ferrofluid.
  • Rear chamber filled with selected and sized damping material for a lower Fs, to ensure a well-damped roll-off of high frequencies, allowing a low crossover point for the cutoff frequency.
  • Faceplate geometry optimized with FEM (Finite Element Modeling) technique for high linearity with off-axis installations.
  • Wide variety of installation accessories, for easy integration in pre-setup.

MP 130.3 Midrange:

  • Voice coil in pure copper wound on Polyamide former for high power handling combined with low voice intermodulation.
  • V-cone® exponential profile in pressed paper with cotton fibers to combine stiffness and lightness for an extended frequency response.
  • Cone profile geometrically optimized for maximum linearity and dispersion in the midrange frequency range.
  • "Boundary Free" rubber surround, for better efficiency and extended mid-bass frequencies.
  • Ferrite magnet with high density flux combined with low carbon content pole plates, for lower distortion at high power levels.
  • Aluminum alloy basket with low depth, acoustically transparent with holes for spider aeration.
  • Metal grille with Hertz logo in aluminum for full protection and internal grille with attractive look and mineral powder coating are included for various installation combinations.

MPCX 2.3 Crossover:

  • Two position switch (0 / +2 dB) to adjust tweeter level and optimize transducer emission.
  • Bi-metallized 160 V capacitors with polyester film of very high quality with ultra-low DF value, for maximum sound transparency and clean high frequencies.
  • Coils in pure 1 mm diameter copper with low series resistance for lower dissipation losses in the woofer section where high current transients are required.
  • Compact design for installation simplicity advantage, with ventilation grille on the upper side for efficient heat dissipation.

ATTENTION: Grilles included

Scheda tecnica

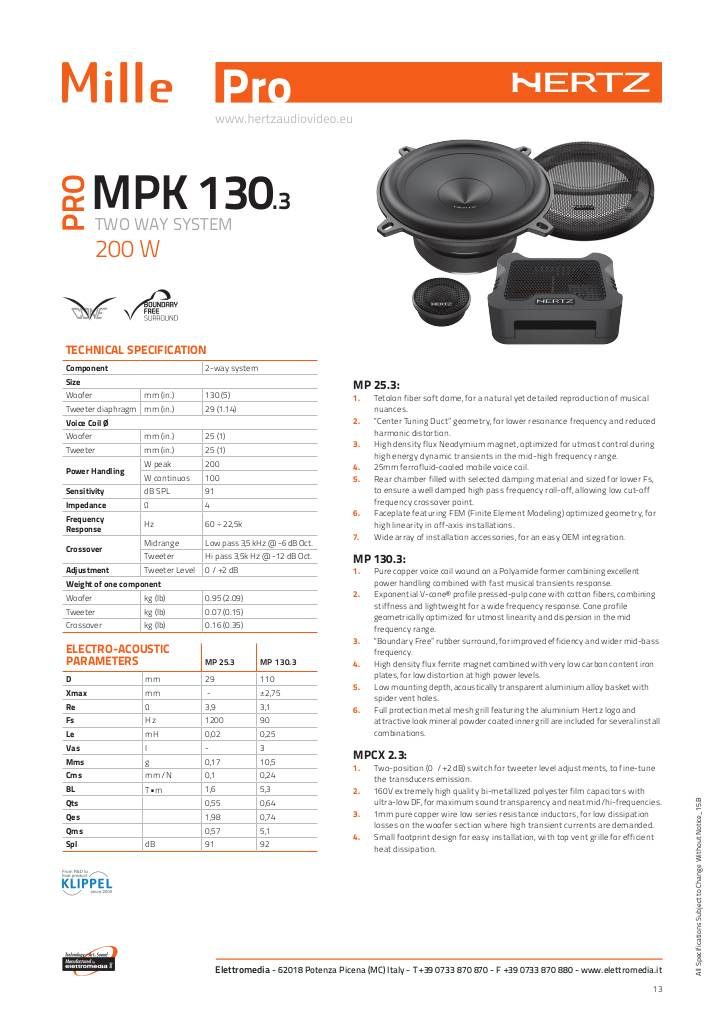

20151014151506-mpk130-3.pdf

Hertz MPK 130.3 Technical Specifications

  • Woofer Size 130 mm
  • Tweeter Diameter 29 mm
  • Voice Coil Ø:
    • Woofer 25 mm
    • Tweeter 25 mm
  • Nominal Power 100 W
  • Maximum Power 200 W
  • Sensitivity 91 dB SPL
  • Impedance Ω 4
  • Frequency Response 60 Hz ÷ 22.5 kHz
  • Crossover:
    • Midrange Low pass 3.5 kHz @ -6 dB Oct.
    • Tweeter Hi pass 3.5 kHz @ -12 dB Oct.
    • Adjustment Tweeter Level 0 / +2 dB
  • Weight of each component
    • Woofer 0.95 Kg
    • Tweeter 0.07 Kg
    • Crossover 0.16 Kg
