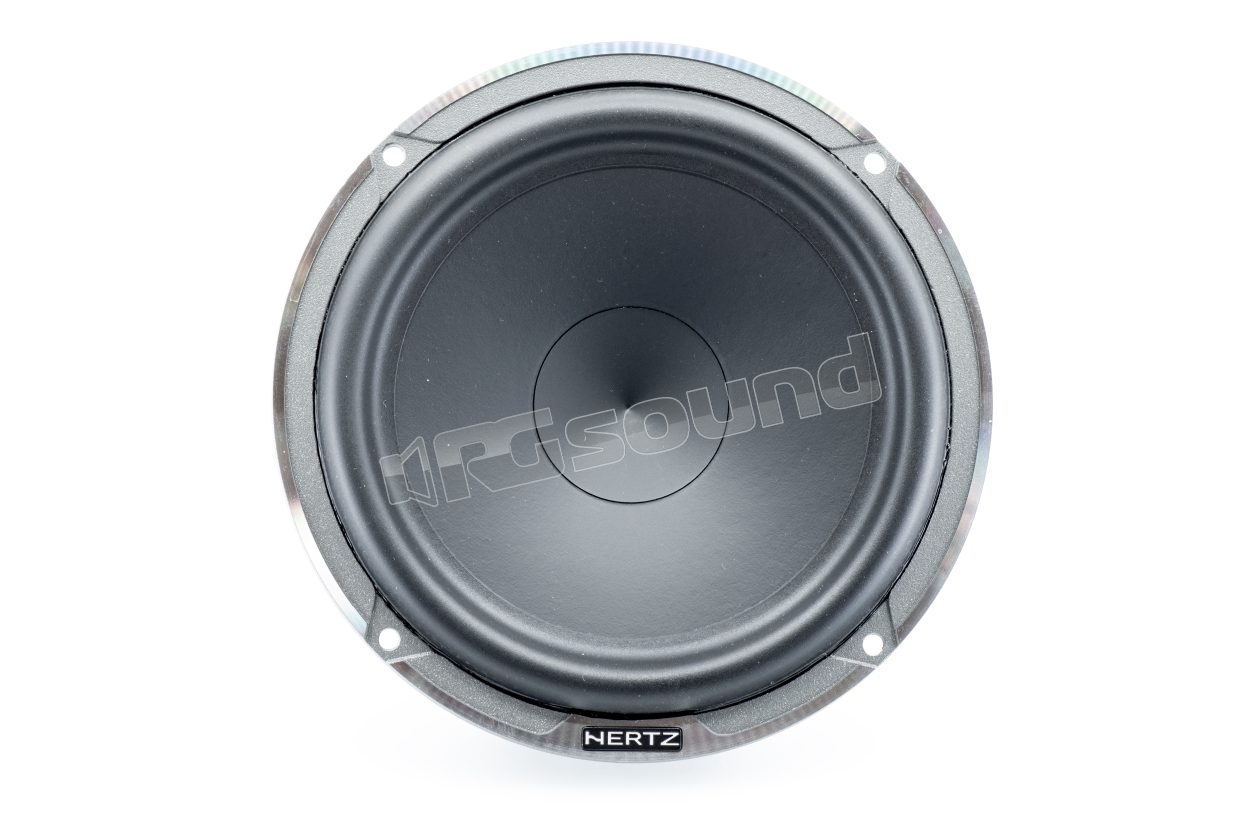

MP 165.3 B-stock single 16.5 cm Mille Pro series woofer with factory defect on the ferrite magnet

Hertz
Your price:
€ 45,90
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
180 Watt
RMS Power
90 Watt
Frequency Response
40 - 5000 Hertz
Sensitivity
93 dB
Impedance
4 Ohm
Installation Depth
63 mm
Woofer Material
Cellulosa trattata

Hertz MP 165.3 single woofer 16.5 cm Mille Pro Series. New, with manufacturing defects on the magnet, perfectly functional

The powerful MP 165.3 woofer has excellent dispersion characteristics and generates high acoustic pressures with compact dimensions. MP 165.3 is perfect for working with MP 70.3 midrange (dual neodymium magnet, engaging acoustic range), MP 25.3 tweeter and the dedicated MPCX 3.3 crossover from the Hertz Mille Pro series.

Speaker grilles MPG 165.3 sold separately.

MP 165.3 Features

  • 1. Voice coil in pure copper wound on Polyamide former for high power handling together with low voice intermodulation.
  • 2. Exponential "V-cone®" cone profile in pressed paper with cotton fibers that combines stiffness and lightness for extended frequency response. The cone profile is geometrically optimized for maximum linearity and dispersion in the midrange frequency range.
  • 3. "Boundary Free" rubber surround, for better efficiency and extended mid-bass frequencies.
  • 4. Ferrite magnet with high density flux combined with low carbon content pole plates, for reduced distortion at high power levels.
  • 5. Aluminum alloy basket with low depth, acoustically transparent, elegant diamond-cut design characterized by Hertz logo in aluminum.
  • 6. Optional: metal grille with Hertz logo in aluminum for full protection plus internal grille with attractive look and mineral powder coating.

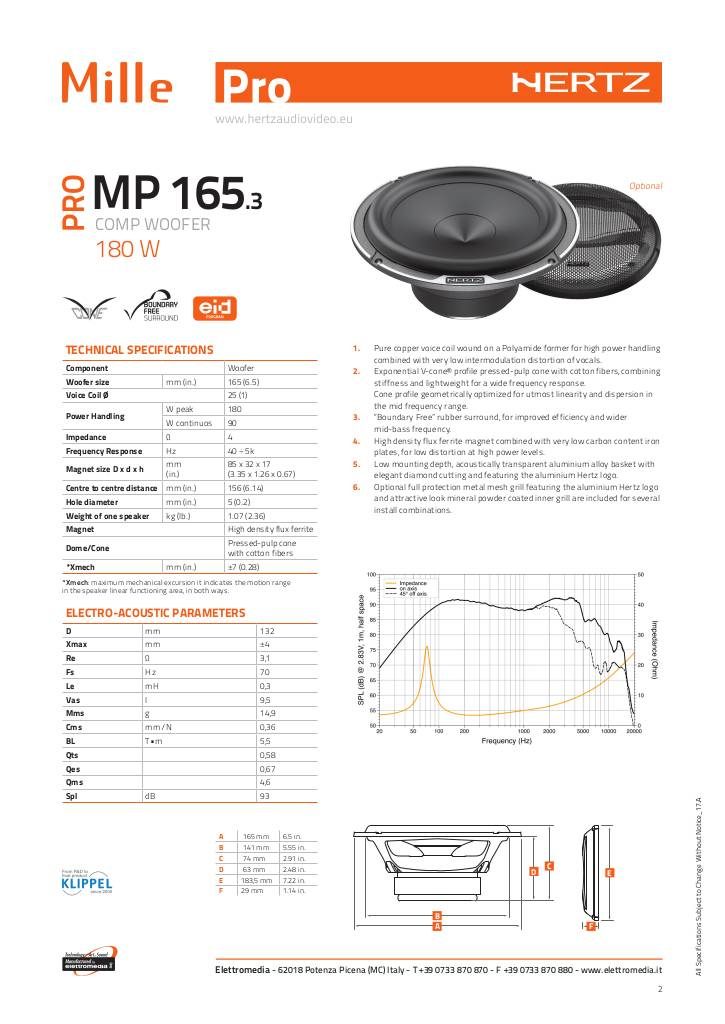

Scheda tecnica

n-20240115171841-hertz-mille-pro-mp165-3-reva-en.pdf

Hertz MP 165.3 Technical Specifications

  • Woofer size 165 mm
  • Voice coil Ø 25 mm
  • RMS power 90 W
  • Maximum power 180 W
  • Impedance Ω 4
  • Sensitivity 93 dB
  • Frequency response 40 Hz ÷ 5 kHz
  • Magnet dimensions (D x d x h) 85 x 32 x 17 mm
  • Weight of single woofer 1.07 kg
  • High density flux ferrite magnet
  • Cone in pressed cellulose and cotton fiber
€ 45,90 Price incl. VAT
