MLK 165.3 Mille series 2-way Legend kit

Name: MLK 165.3 Mille series 2-way Legend kit
Brand: Hertz
SKU: 34-23853
Price: 459.00 EUR
Availability: InStock

MLK 165.3 Mille series 2-way Legend kit Hertz

Official Italian warranty

Your price:

€ 459,00

Price per single item (VAT included)

In stock, ready to ship

Calculating shipping costs to

Product code: #023853
Type: Speaker Systems - 2-Way Speaker Kits
Manufacturer: Hertz
Website: https://www.hertzaudiovideo.com

Type: 2-way separate kit
Frequency Response: 40 -25.000 Hertz
Woofer Size: 165 mm
Tweeter Size: 35 millimetri
MAX Power: 300 Watt
RMS Power: 150 Watt
Sensitivity: 91 dB
Impedance: 4 Ohm
Woofer Material: Fibra di cellulosa e cotone
Tweeter Material: Neodimio e cupola in Tetolon

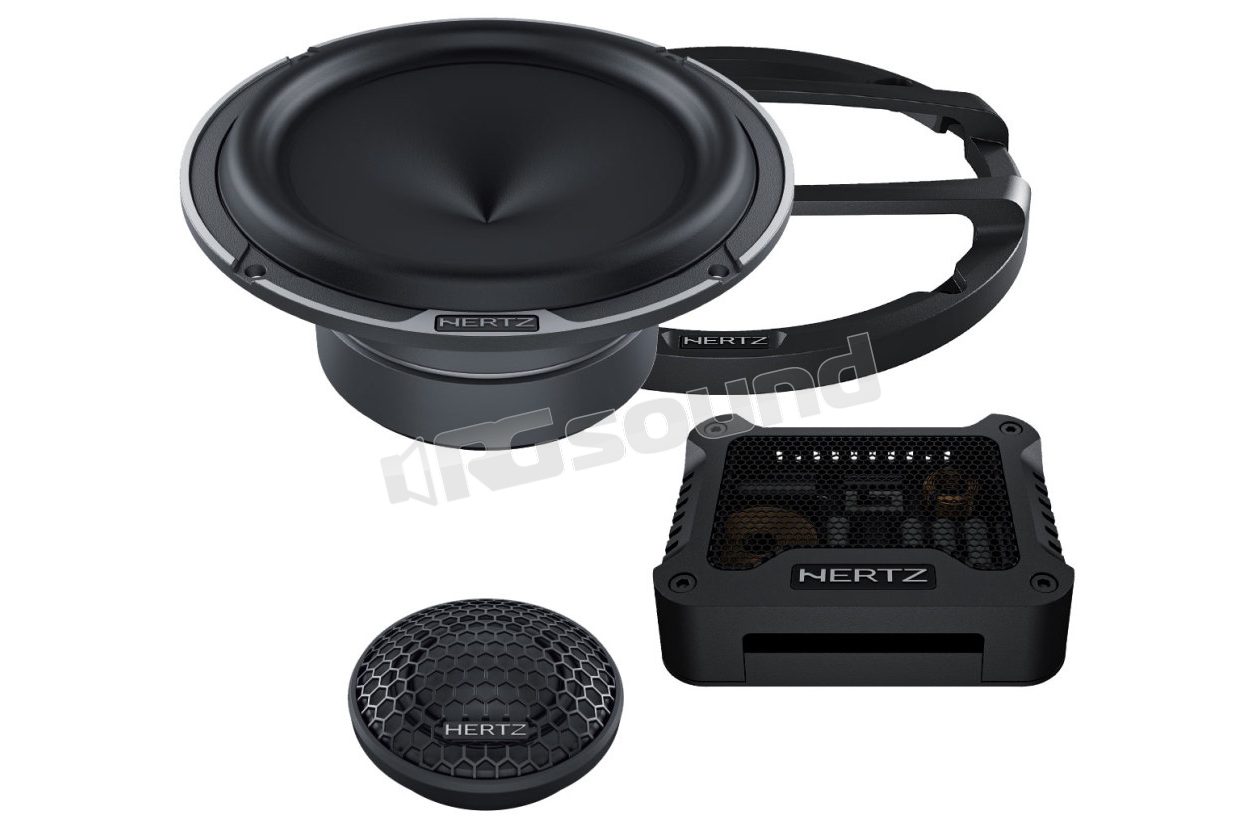

Hertz MLK 165.3 2-way Kit with ML 28.3 Legend tweeter + ML 165.3 woofer pair + MLCX 165.3 crossover pair Mille Series

The woofer derives from the ML 1650.3 Legend, inheriting all its technologies such as the "Boundary Free Surround" suspension, the paper and cotton cone with V-cone® profile, the aluminum basket with three spokes and decompression holes, but it has been developed using a high-density ferrite magnetic group that characterizes its emission in the midrange.

The ML 28.3 Legend tweeter uses the same Neodymium magnetic group as the ML 280.3 Legend and has benefited from all the optimization conducted with FEA methods on the dome profile, in common with its older brother, of which however the more esoteric solutions are not adopted such as the die-cast aluminum faceplate, the body machined in CNC from solid aluminum and the copper shorting ring.

The MLCX 165.3 crossover also has, like the MLCX 2 TW.3, the "Hi-Countour" control to adjust the crossover frequency of the ML 28.3 tweeter and therefore the crossover point with the ML 165.3 woofer, based on the position of the two transducers in the cabin. Through the three-position tweeter level control, with attenuation in steps of 2 dB it is possible to finely adjust the level for the correct tonal balance based on your personal preferences.

The Kit consists of:

ML 28.3 Legend

Dual neodymium magnet optimized with FEA simulations for maximum field symmetry and exceptional transfer efficiency.
Tetolon Fiber dome geometry optimized with FEA simulations for excellent dynamics and angular dispersion.
Enlarged rear chamber to lower the Fs from 1000Hz to 900Hz.
Non-woven natural fiber sound-absorbing material for better damping and emission naturalness.

ML 165.3 Legend

36 mm double-layer CCAW voice coil on Kapton support for exceptional power handling and dynamics without compression.
V-cone® with optimized geometry with exponential trend for better dispersion and SPL.
Boundary Free suspension in IIR rubber for greater efficiency.
Cellulose fiber cone with cotton injection for rigidity, lightness and dynamics.
Resonance-free aluminum alloy basket with three spokes and decompression holes.
Basket design with high acoustic transparency.

MLCX 165.3

Two-position "Hi-Countour" control to linearize the high-frequency response based on the placement of the tweeters in the cabin and the sound preferred by the listener.
Three-position tweeter sensitivity control, with attenuation in steps of 2 dB, to fine-tune the emission of the transducer.
Bimetallic 160v capacitors with polyester film of very high quality, with an ultra-low DF value, for maximum sound transparency and detailed mid-high frequencies.
Inductors made with air-wound coils with pure copper wire 1 mm in diameter, for a high magnetic flux saturation threshold and low losses in the woofer areas where high transient currents are required.
High-power Wirewound resistors, to ensure maximum stability of performance even at high operating temperatures. The Wirewound construction allows for low series parasitic inductance so as to reduce loss at high frequencies, especially for resistors in series with the tweeter.

ATTENTION: Grilles included
