ML 700.3 Legend pair of 70mm midranges from the new Mille .3 line

Hertz
Your price:
€ 279,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Midrange
Speaker Size
70 mm
MAX Power
100 Watt
Frequency Response
200 - 20.000 Hertz
Sensitivity
90 dB
Impedance
4 Ohm
Weight
0,42 Kg
Installation Depth
41,3 mm
Midrange Cone Material
Fibra di cellulosa e cotone

Hertz ML 700.3 Legend Pair of 70mm midrange speakers from the new Mille .3 line - Grilles included.

The exponential profile without dust cap of the V-cone® guarantees better dispersion: the synergistic action of these technological elements ensures the ML700.3 Legend with better high frequency extension allowing the realization of two-way systems with purist settings combined with the ML 1650.3 Legend or the ML 1800.3 Legend.


This configuration, having only one crossover point, minimizes phase rotations to the maximum, guaranteeing a very wide soundstage and a disarming timbral coherence. By entrusting the midrange frequencies to the ML700.3 Legend and the low frequencies to the ML1800.3 Legend, the entire audio band is reproduced with transducers that are built with the same materials and based on the same electroacoustic structure. This uniformity of materials and structures generates very high timbral coherence allowing the speakers to "disappear" to make room for emotions.

ML 700.3 Features

  • Optimized neodymium magnet with FEA simulations for superior dynamics and control.
  • Polar plates in steel with very low carbon content with CNC processing to guarantee very high magnetic permeability reducing distortion at high power levels.
  • Central pole covered in very pure copper and single-layer voice coil for greater high frequency extension.
  • V-cone® with optimized geometry with exponential trend for maximum linearity and dispersion.
  • Spider in CONEX with optimized profile for maximum transparency in the midrange.
  • "Boundary Free Surround" suspension in IIR rubber for greater efficiency and extension of the low-midrange.
  • Cone in cellulose fiber and cotton to combine rigidity and lightness in order to obtain an extended response and limited break-up phenomena in the high range.
  • Geometry of the cone-former junction point optimized with FEA methods to allow more solid coupling and therefore guarantee greater high frequency extension.
  • Basket in anti-resonant aluminum alloy with three spokes with high acoustic transparency with integrated decompression holes.
  • Elegant knurling of the basket edge with integrated logo worked with CNC.
  • Grille in die-cast aluminum with knurled aluminum logo supplied as standard.

ATTENTION: Grilles included

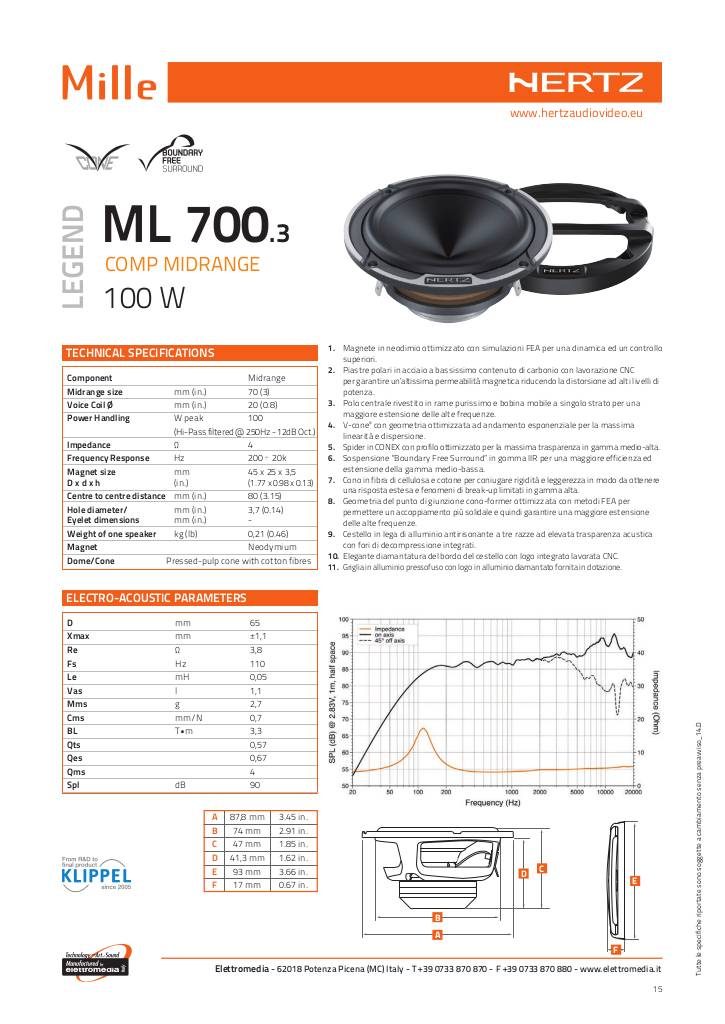

Scheda tecnica

20141022154725-hertz-ml700-3-mille-3.pdf

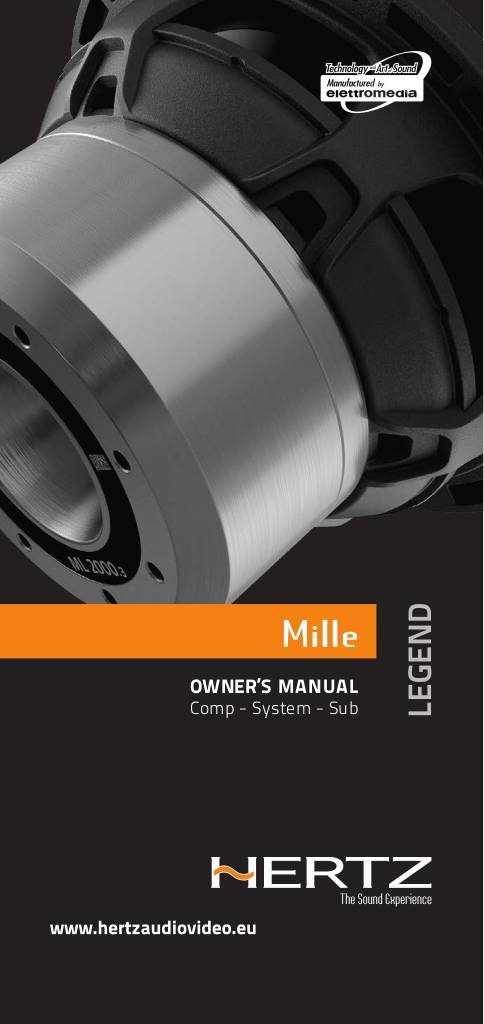

Manuale

20141205091358-esec-owners-manual-speaker-mille-revc-web.pdf

Pair of ML 700.3 midrange speakers Pair of grilles

Hertz ML 700.3 Technical specifications

  • Midrange component
  • Dimensions mm (in.) 70 (3)
  • Power handling - Peak W 100
  • Power handling - Peak Note (Hi-Pass filter at 250Hz - 12dB oct.)
  • Impedance Ohm 4
  • Voice coil Ø 20 (0.8)
  • Frequency response Hz 200 - 20k
  • Magnet dimensions D x d x h mm (in.) 45 x 25 x 3.5 (1.77 x 0.98 x 0.13)
  • Weight of one speaker kg (lb.) 0.21 (0.46)
  • Magnet Neodymium
  • Cone Cone in pressed pulp with cotton fibers
€ 279,00 Price incl. VAT
