ML 2 High-end 54 mm dome midrange, Matrix series

Brax
Your price:
€ 1045,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
50 mm
MAX Power
170 Watt
RMS Power
120 Watt
Sensitivity
91 dB
Impedance
4 Ohm
Installation Depth
25 mm
Midrange Cone Material
Cupola in seta

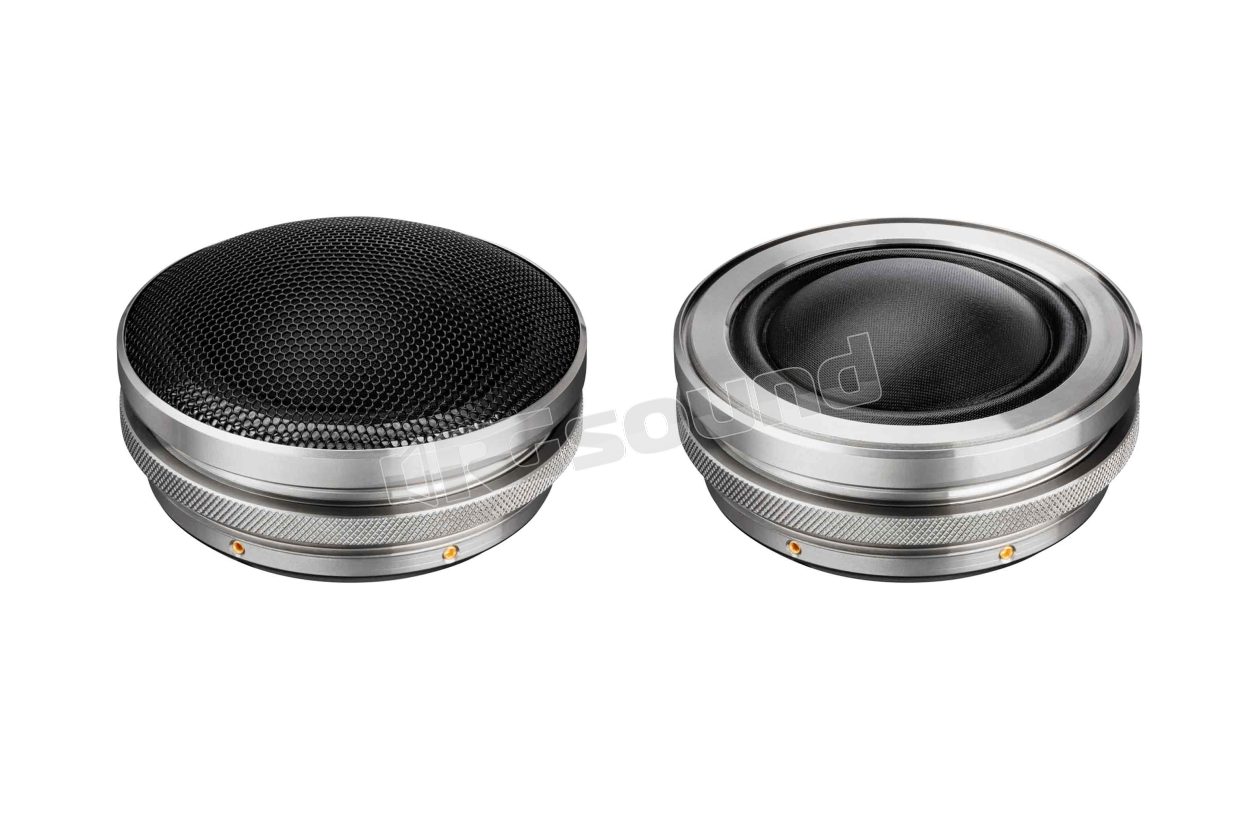

Brax ML 2 High-end 54 mm dome midrange Matrix series

For years, the Brax Matrix speaker series has been synonymous with audio quality and unrivaled quality. With this in mind, the focus of further development of the 54 mm (2.1") midrange speakers had to be based on cutting-edge technology and sophisticated materials to meet the Brax brand's requirements: pure and precise sound reproduction.

The new ultra-lightweight and fine-mesh silk dome with viscoelastic Acronal coating on both sides ensures a brilliant and smooth high response. Furthermore, the integration of pure lamb's wool and damped coupling volume allows for very low resonant frequency and enables deep acoustic coupling.

The delicate and precious appearance reveals a series of intelligent details, the CNC machined two-part stainless steel housing for maximum heat dissipation. The neodymium magnet machined 10 times more precisely will generate maximum magnetic flux linearity, the integrated 24-karat gold-plated terminals for maximum conductivity. The threaded body with its solid mounting ring on the back of the housing provides the perfect method for securing the speaker with uniform pressure without the need for complex and unsightly fasteners. Add to this the robust protective grille for the dome and you have a tweeter like no other.

To meet high quality requirements and to achieve perfect tonal interaction, each speaker set is hand-selected and matched based on its acoustic parameters. Only after selection does each speaker set receive its unique serial number registered in a service database. The exclusive wooden box packaging completes this high-end product and once again underlines BRAX's philosophy.

ML 2 Features

  • Ultra-lightweight and fine-mesh silk dome with viscoelastic Acronal coating on both sides for a brilliant and smooth midrange response
  • Integrated 24-karat gold-plated terminals for maximum conductivity
  • Vented neodymium magnet, ultra-precise 10 x vented for maximum magnetic flux linearity
  • CNC machined two-part stainless steel body for maximum heat dissipation
  • Solid mounting ring and threading on the back of the housing allow hidden mounting
  • Integrated, with pure lamb's wool coupling volume for very low resonant frequencies
  • The robust protective grille is included in the delivery

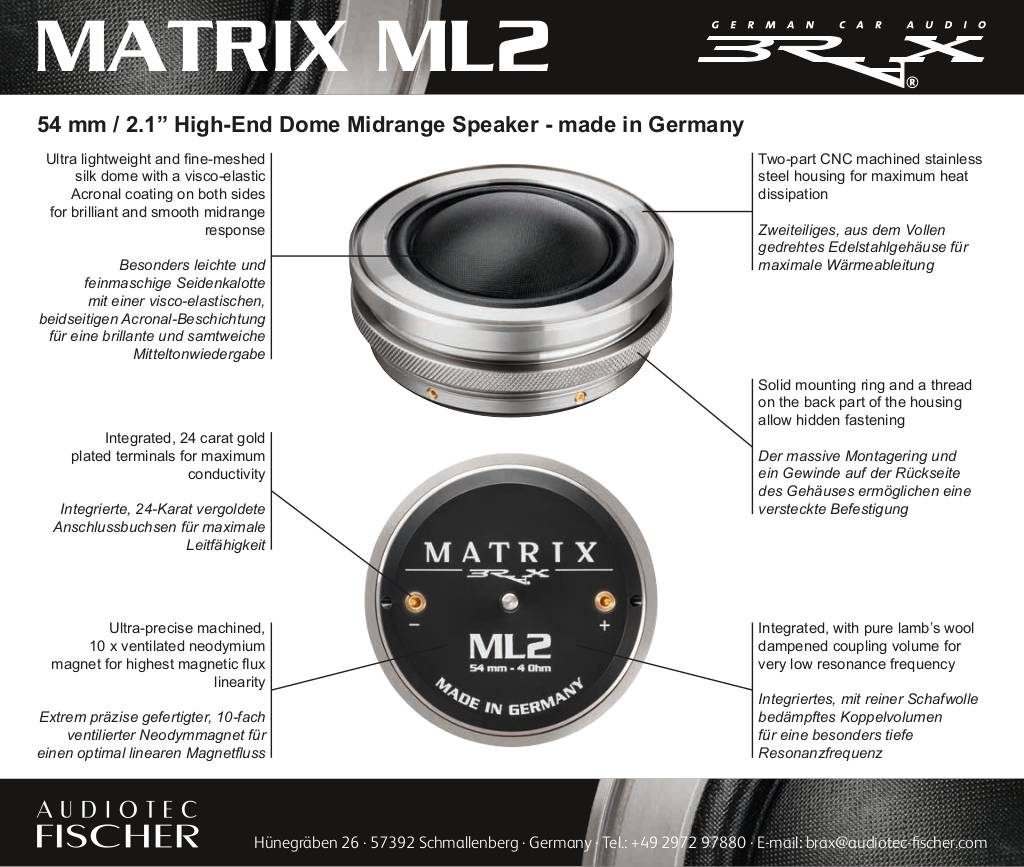

Scheda tecnica

n-20180720110803-db-brax-matrix-ml2.pdf

Brax ML 2 Technical Specifications

  • RMS / max. Power P 120/170 Watt (high pass > 750 Hz at 12 dB / Oct.)
  • Impedance 4 Ω
  • Resistance 3.4 Ω
  • Resonant frequency 520 Hz
  • Efficiency 1 W / 1 m SPL 91 dB
  • Voice coil diameter 54 mm / 2.13"
  • Cone area 22.9 cm²
  • Moving mass 1.57 g
  • Cone material Silk plastic with viscoelastic Acronal coating on both sides
  • Outer diameter 85 mm / 3.4"
  • Installation diameter 78 mm / 3.1"
  • Installation depth 25 mm / 1.0"

Recommended crossover frequencies for highpass

  • Slope / Minimum crossover frequency Minimum crossover frequency
    • 6 dB / Octave 1,250 Hz
    • 12 dB / Octave > 750 Hz
    • 24 dB / Octave > 650 Hz
