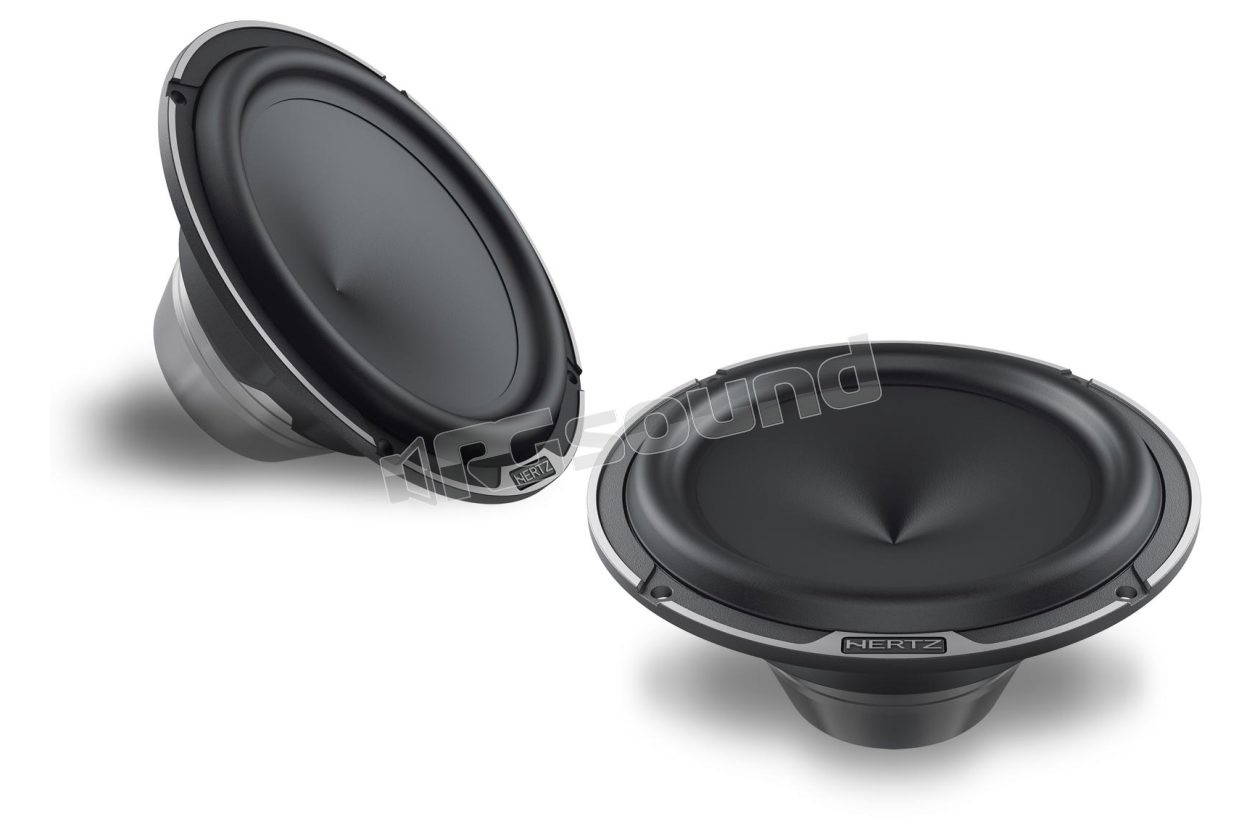

ML 1650.3 Pair of 165mm Mille.3 line woofers with grilles

Hertz
Your price:
€ 429,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
250 Watt
RMS Power
125 Watt
Frequency Response
40 - 6.500 Hertz
Sensitivity
93 dB
Impedance
4 Ohm
Weight
2,58 Kg
Installation Depth
69 mm
Woofer Material
Fibra di cellulosa e cotone

Hertz ML 1650.3 Legend Pair of 165mm woofers Mille.3 line - Grilles included

The woofers of the Mille line have been for years the choice of many enthusiasts seeking extreme performance; with the ML 1650.3 Legend the Hertz designers have once again raised the limit of performance achievable by components designed for door installation.

ML 1650.3 Features

  • Neodymium magnet optimized with FEA simulations for real dynamics and extreme control.
  • Steel polar plates with very low carbon content and CNC machining to ensure very high magnetic permeability reducing distortion at high power levels.
  • Aluminum-coated pole to linearize impedance modulation and lower distortion.
  • 36 mm coil in double-layer CCAW on Polyamide support for exceptional power handling and distortion-free reproduction even in the most demanding musical passages.
  • V-cone® with optimized geometry and exponential profile for better midrange dispersion.
  • "Boundary Free Surround" suspension in IIR rubber for greater efficiency and midrange-bass extension.
  • Cone in cellulose fiber and cotton to combine rigidity and lightness to achieve extended response and limited break-up phenomena in the high range.
  • Three-spoke anti-resonance aluminum alloy basket with high acoustic transparency and integrated decompression holes.
  • Elegant diamond knurling on the basket edge with integrated logo machined with CNC.
  • Die-cast aluminum grille with diamond knurled aluminum logo supplied as standard.

WARNING: Grilles included

Scheda tecnica

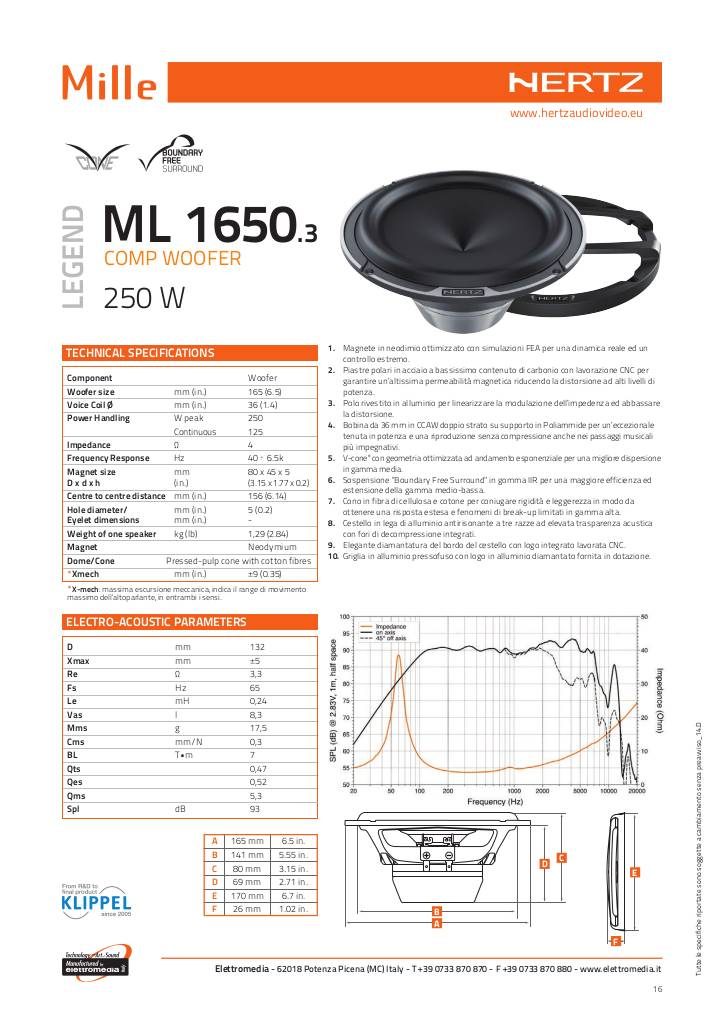

20141022164239-hertz-ml1650-3-mille-3.pdf

Manuale

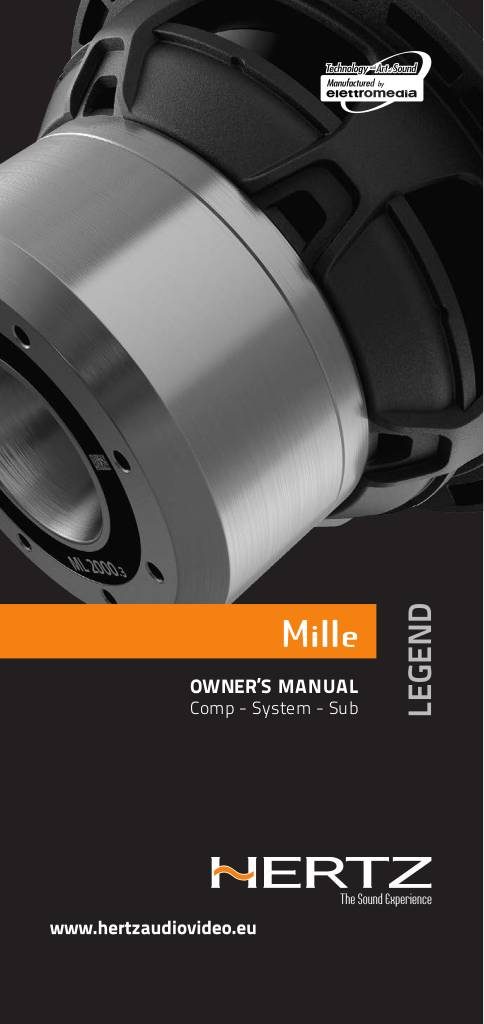

20141205091344-esec-owners-manual-speaker-mille-revc-web.pdf

Pair of ML 1650.3 woofers Pair of grilles

Hertz ML 1650.3 Technical Specifications

  • Dimensions mm (in.) 165 (6.5)
  • Continuous power handling W 125
  • Peak power handling W 250
  • Impedance Ohm 4
  • Voice coil Ø 36 (1.4)
  • Frequency response Hz 40 - 6.5k
  • Magnet dimensions D x d x h mm (in.) 80 x 45 x 5 (3.15 x 1.77 x 0.2)
  • Weight per speaker kg (lb.) 1.29 (2.84)
  • Magnet Neodymium
  • Cone Pressed cellulose pulp cone with cotton fibers
  • Xmech mm (in.) ±9 (0.35)

Electroacoustic Specifications

  • D mm 132
  • Re Ohm 3.3
  • Fs Hz 65
  • Le mH 0.24
  • Vas I 8.3
  • Mms g 17.5
  • Cms mm/N 0.3
  • BL T*m 7
  • Qts 0.52
  • Qes 0.52
  • Qms 5.3
  • Spl dB 93
