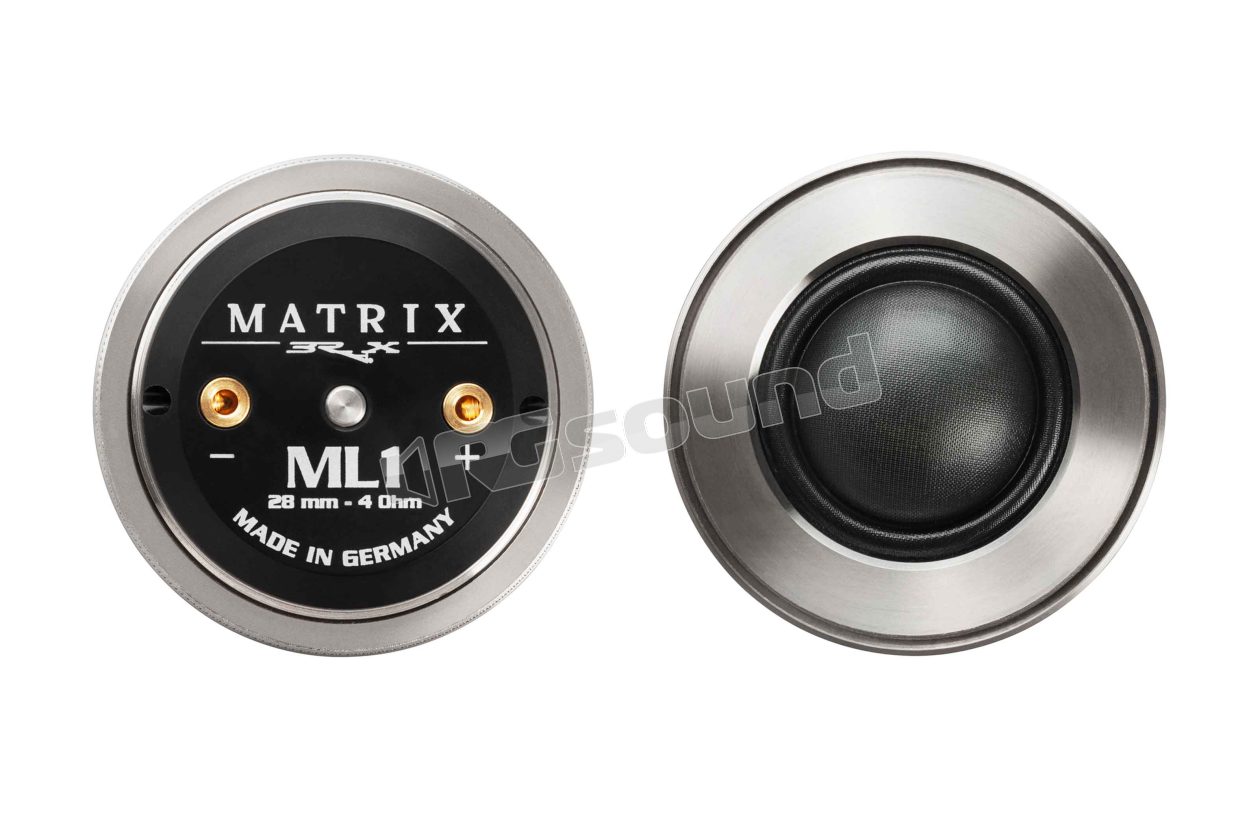

ML 1 28mm silk dome tweeter, Matrix series

Brax
Your price:
€ 874,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Dome Size
28 mm
MAX Power
170 Watt
RMS Power
120 Watt
Sensitivity
90 dB
Impedance
4 Ohm
Outer Diameter
60 mm
Installation Depth
25 mm
Tweeter Material
Cupola in seta

Brax ML 1 Tweeter 28mm with silk dome and neodymium magnet Matrix series

For years, the Brax Matrix speaker series has been synonymous with audio quality and unrivaled quality. With this in mind, the objective of further developing the 28 mm (1.1") tweeters had to be based on cutting-edge technologies and sophisticated materials to meet the requirements of the BRAX brand: pure and precise sound reproduction.

The new ultralight, fine-mesh silk dome with Acronal viscoelastic coating on both sides ensures a brilliant and even treble response. Furthermore, the integration of pure lamb's wool and damped coupling volume enables a very low resonance frequency and allows deep acoustic coupling.

In terms of design and technology, BRAX philosophy continues without exception: the delicate and precious appearance reveals a series of intelligent details. The housing made of stainless steel machined by CNC in two parts for maximum heat dissipation. The neodymium magnet machined 8 times more precisely will generate maximum magnetic flux linearity, integrated 24 karat gold-plated terminals for maximum conductivity. The threaded body with its solid mounting ring on the back of the housing provides the perfect method for securing the speaker with uniform pressure without the need for complex and unsightly fasteners. Add to this the robust protective grille for the dome and you have a tweeter like no other.

To meet high quality requirements and to achieve perfect tonal interaction, each speaker set is hand-selected and matched based on its acoustic parameters. Only after selection does each speaker set receive its unique serial number registered in a service database. The exclusive wooden box packaging completes this high-end product and once again underscores Brax's philosophy.

ML 1 Features

  • Ultralight, fine-mesh silk dome with Acronal viscoelastic coating on both sides for brilliant and even treble response
  • Integrated 24 karat gold-plated terminals for maximum conductivity
  • Vented neodymium magnet, ultra-precise, 8 x for maximum magnetic flux linearity
  • Stainless steel housing machined by CNC in two parts for maximum heat dissipation
  • Solid mounting ring and threading on the back of the housing allow concealed mounting
  • Integrated, with pure lamb's wool coupling volume for very low resonance frequencies
  • The robust protective grille is included in the delivery

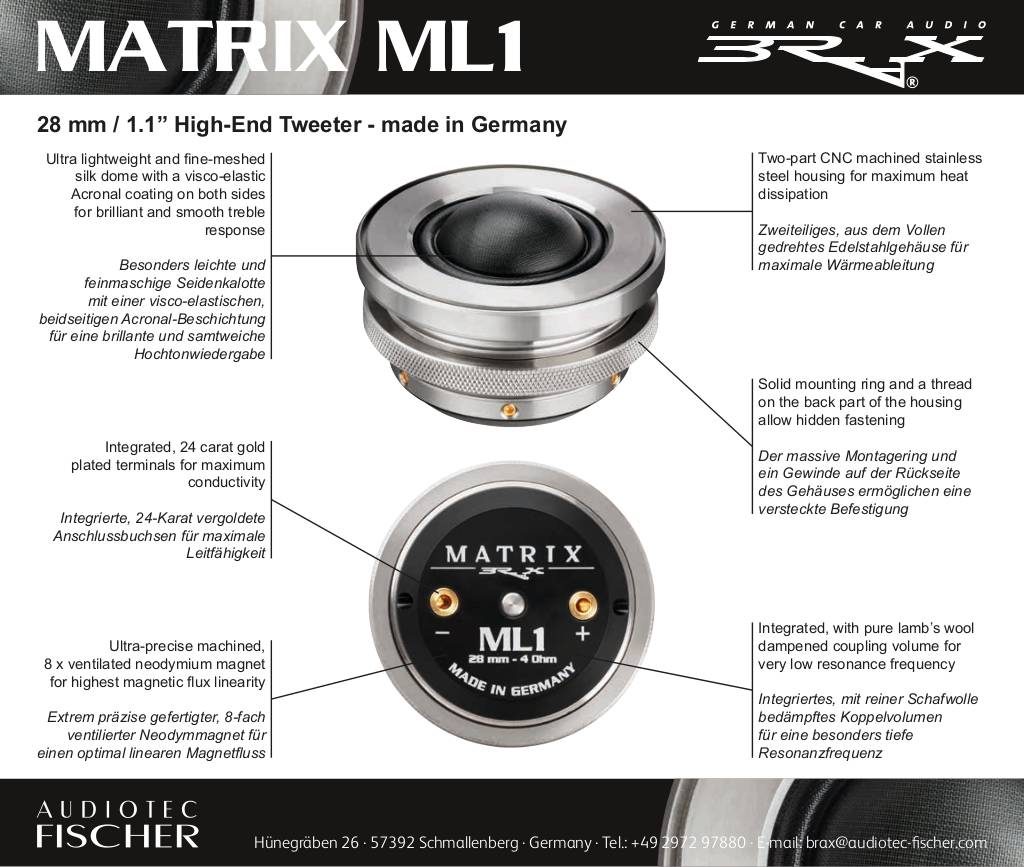

Scheda tecnica

n-20180720105401-db-brax-matrix-ml1.pdf

Brax ML 1 Technical Specifications

  • RMS / max. Power P 120/170 Watt (high-pass > 3000 Hz at 12 dB / oct.)
  • Impedance 4 Ω
  • Resistance 3.4 Ω
  • Resonance frequency 630 Hz
  • Efficiency SPL 90 dB
  • Voice coil diameter 28 mm / 1.10"
  • Cone area Sd 6.2 cm²
  • Moving mass Mms 0.32 g
  • Cone material plastic Silk with Acronal viscoelastic coating on both sides
  • External diameter 60 mm / 2.4"
  • Installation diameter 50 mm / 2.0"
  • Installation depth 25 mm / 1.0"

Recommended crossover frequencies for high-pass

  • Minimum crossover frequency
    • 6 dB / Octave 3,500 Hz
    • 12 dB / Octave > 2,500 Hz
    • 24 dB / Octave > 1,800 Hz
