MD 142 Esotech - 75 mm dome midrange

Dynaudio
Your price:
€ 330,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Midrange
Speaker Size
Other sizes
RMS Power
100 Watt
Frequency Response
700 - 6.000 Hertz
Sensitivity
88 dB
Impedance
8 Ohm
Weight
0,75 Kg
Installation Depth
37,5 mm
Midrange Cone Material
Cupola in seta

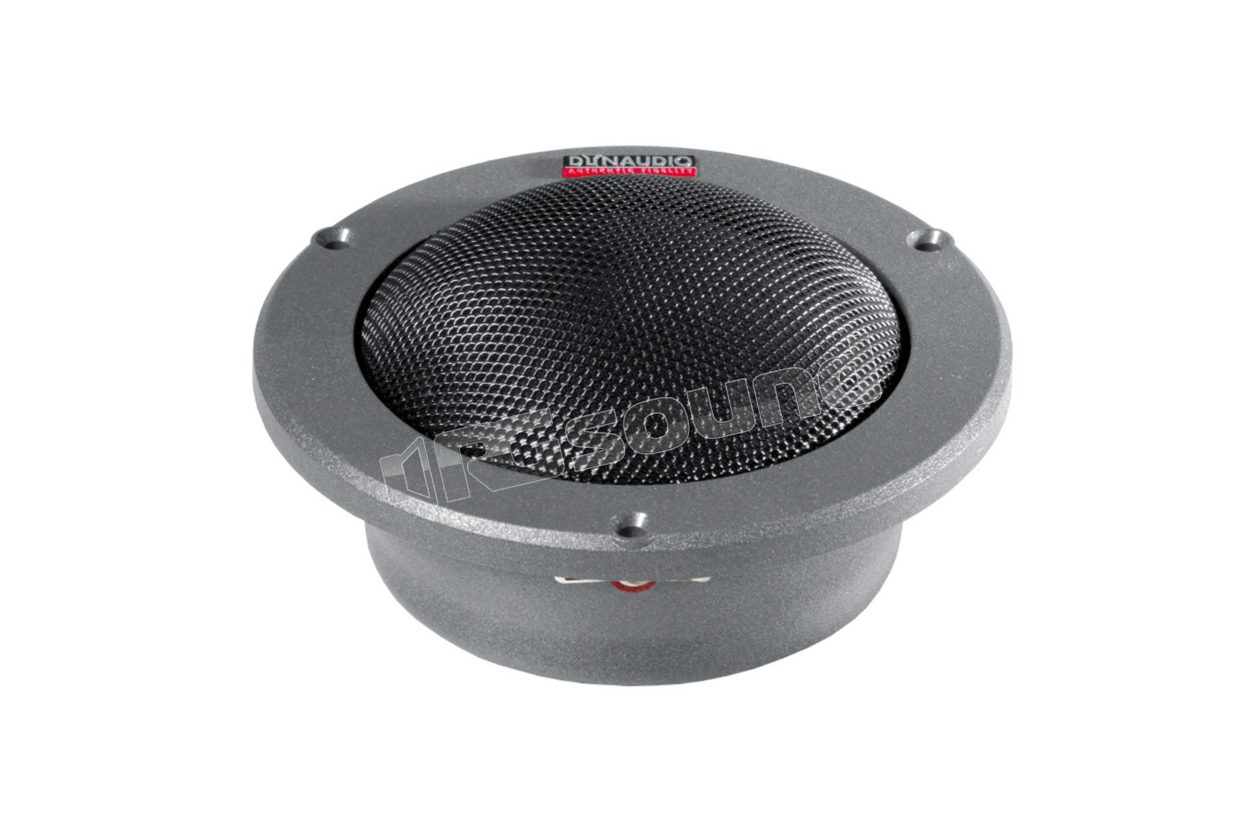

Dynaudio MD 142 Esotec midrange 75 mm with dome design, external diameter 121 mm, impedance 8 Ohm

Compact midrange transducer (75 mm), designed for high-performance 3-way systems. The frequency response is extremely smooth and damped, allowing the use of non-complex crossover filters. MD 140 is characterized by reproducing midrange frequencies with extreme detail, and is made with both the resonance chamber and the protective grille integrated, facilitating installation in the car.

Dynaudio MD 142 Esotec main features

Treated silk dome

75mm diameter coil

Ventilated internal magnetic system

Aluminum voice coil support

Reduced mounting depth

Integrated protective grille

Increased damping thanks to ferrofluuid

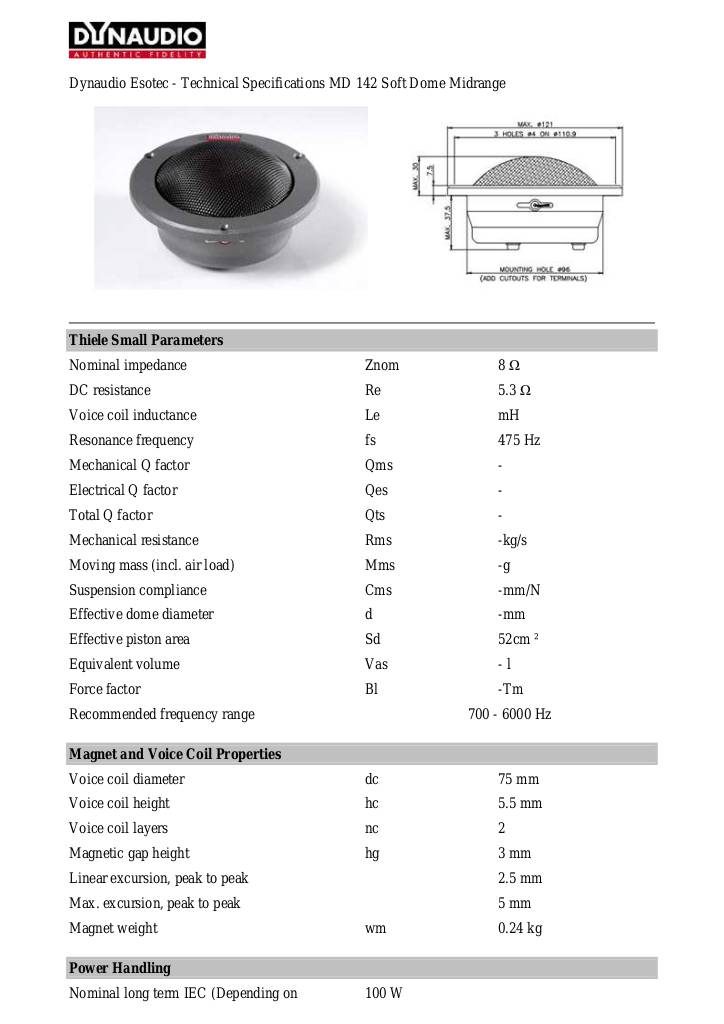

Scheda Tecnica e parametri acustici

20090715082333-md142.pdf

1x Speaker MD 142

Dynaudio MD 142 Esotec technical specifications

Rated power 100 W

Impedance 8 Ohm

Frequency from 700 Hz

Max. Frequency 6 kHz

Voice coil Ø 75 mm

Voice coil height 5.5 mm

Resonance fs: 475 Hz

DC Resistance Re: 5.3 Ohm

Max. Excursion +/- Xmax: 5 mm

Mounting depth 37.5 mm

Mounting hole diameter 96 mm

€ 330,00 Price incl. VAT
