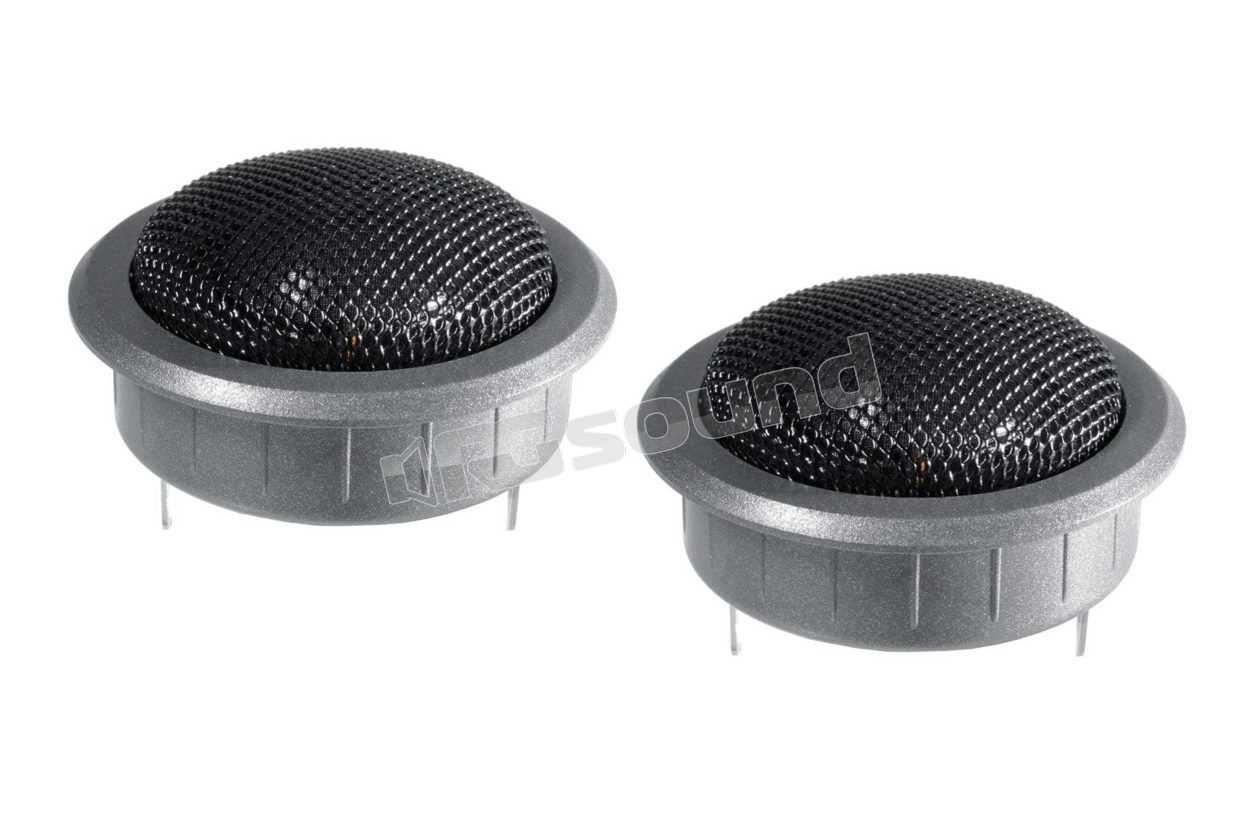

MD 102 Pair of neodymium soft dome tweeters

Dynaudio

Coming soon

Your price:
€ 229,00
Price per pair (VAT included)
Type
Tweeter
Dome Size
52 mm
MAX Power
500 Watt
RMS Power
100 Watt
Frequency Response
2200 - 30000 Hertz
Sensitivity
92 dB
Impedance
8 Ohm
Outer Diameter
62,2 mm
Installation Depth
29,1 mm
Tweeter Material
seta trattata

Dynaudio MD 102 Pair of neodymium soft dome tweeters

Esotec MD 102 soft dome tweeter, features a special coating that produces extended high frequency response without distortion.

The surface diameter is 28 mm (1.1") is approximately 60% larger than conventional car audio tweeters, while its optimized dome geometry offers improved dispersion and exceptional off-axis performance. The rear chamber of the MD 102 tweeter is sealed and acoustically damped to eliminate high frequency distortion that could be caused by rear wave reflections, while ferrofluid cooling adds damping and greater power handling. Aluminum voice coil and neodymium magnet.

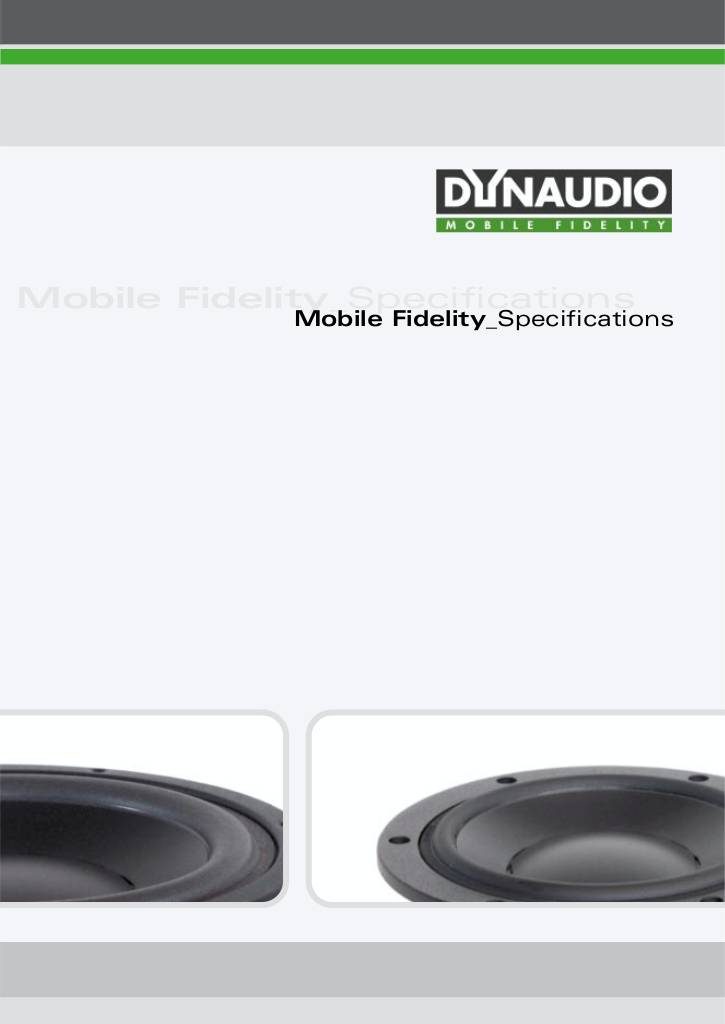

Manuale

20070904193552-mobile.pdf

2x Speaker MD 102

Dynaudio MD 102 Technical specifications
  • Nominal impedance 8 Ω
  • DC resistance Re 5.6 Ω
  • Resonance frequency fs 1300 Hz
  • Recommended frequency range 2,200 - 30,000 Hz
  • Voice coil dimensions
  • Diameter dc 28 mm
  • Height 1.7 mm
  • Power
    • IEC nominal power (depends on crossover) 100 W
    • Maximum power (10 ms) 500 W
  • Dimensions and weight
    • Net weight 0.126 kg
    • Dimensions ø 62.2 x 43 mm
