MCM8SPL Extended range 20cm

Electronic Melody
Your price:
€ 63,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Midrange
Speaker Size
200 mm
MAX Power
20 Watt
RMS Power
120 Watt
Sensitivity
97 dB
Impedance
4 Ohm
Installation Depth
90 mm
Midrange Cone Material
Cellulosa trattata

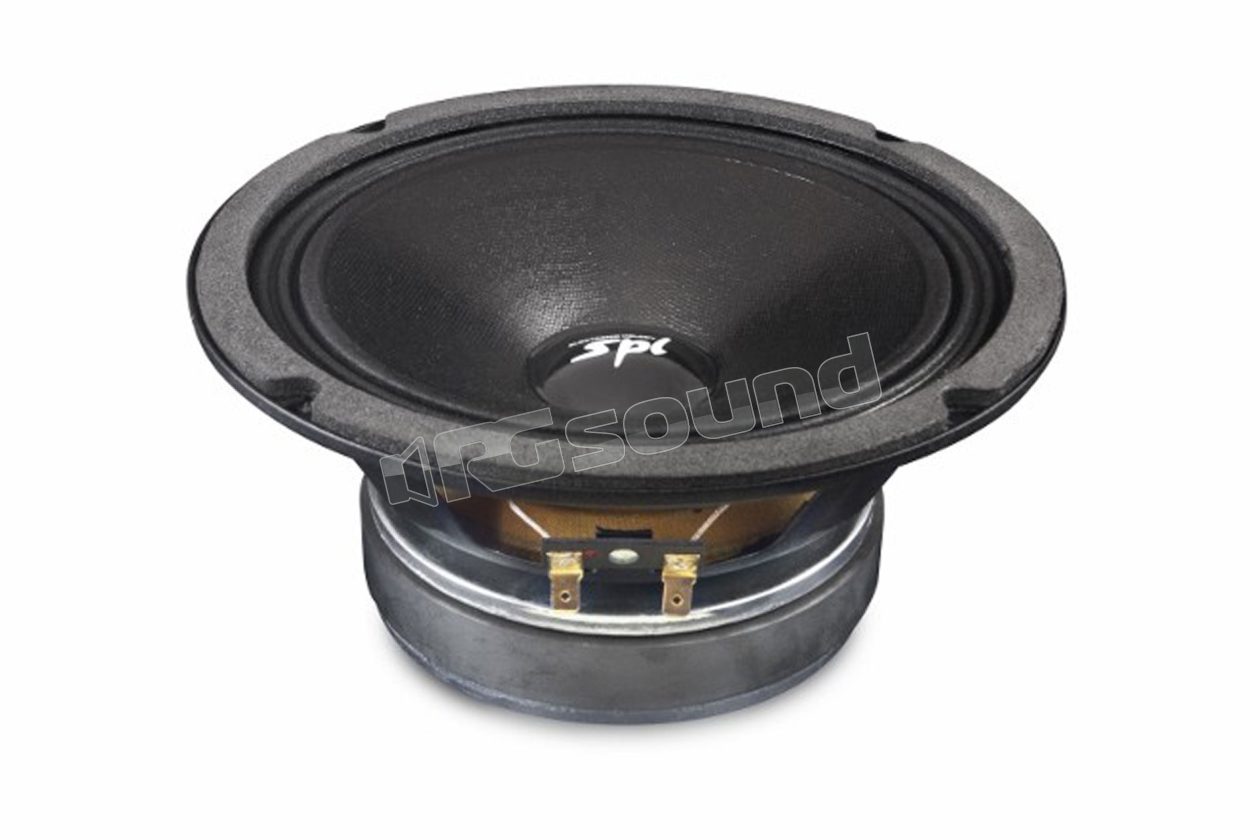

Electronic Melody MCM8SPL extended range 209mm (8") with waterproofed cellulose cone and canvas surround, 4 Ohm impedance, 120W RMS power.

Technical FeaturesMCM8SPL

Max Power 250 W
RMS Power 120 W
Panel Hole Ø 180 mm
Sensitivity (1W/1m) 97 dB
Nominal Impedance 4 Ω
Voice Coil Ø 38 mm
D 166.00 mm
Re 3.40 Ω
Fs 102.24 Hz

MCM8SPL Dimensions

Speaker Diameter 209 mm
Magnet Diameter 135 mm
Installation Hole Diameter 180 mm
Installation Depth 90 mm

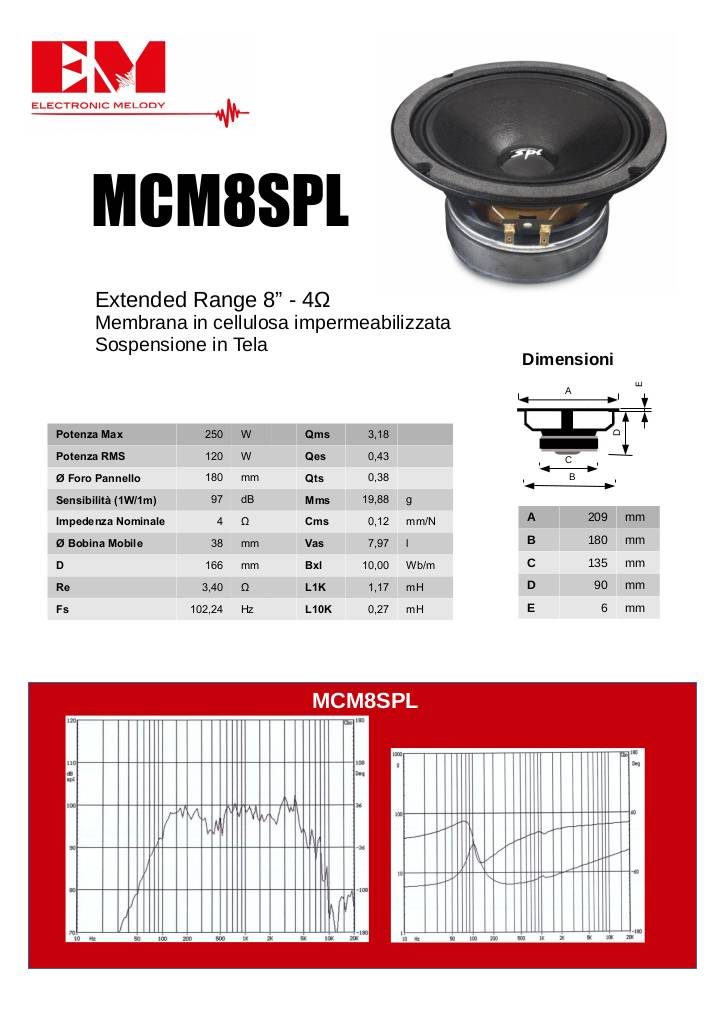

Scheda tecnica

n-20160914125031-mcm8spl.pdf
€ 63,00 Price incl. VAT
