MCM65SPL extended range 16.5cm

Electronic Melody
Your price:
€ 58,50
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Midrange
Speaker Size
165 mm
MAX Power
200 Watt
RMS Power
80 Watt
Sensitivity
93 dB
Impedance
4 Ohm
Installation Depth
73 mm
Midrange Cone Material
Cellulosa trattata

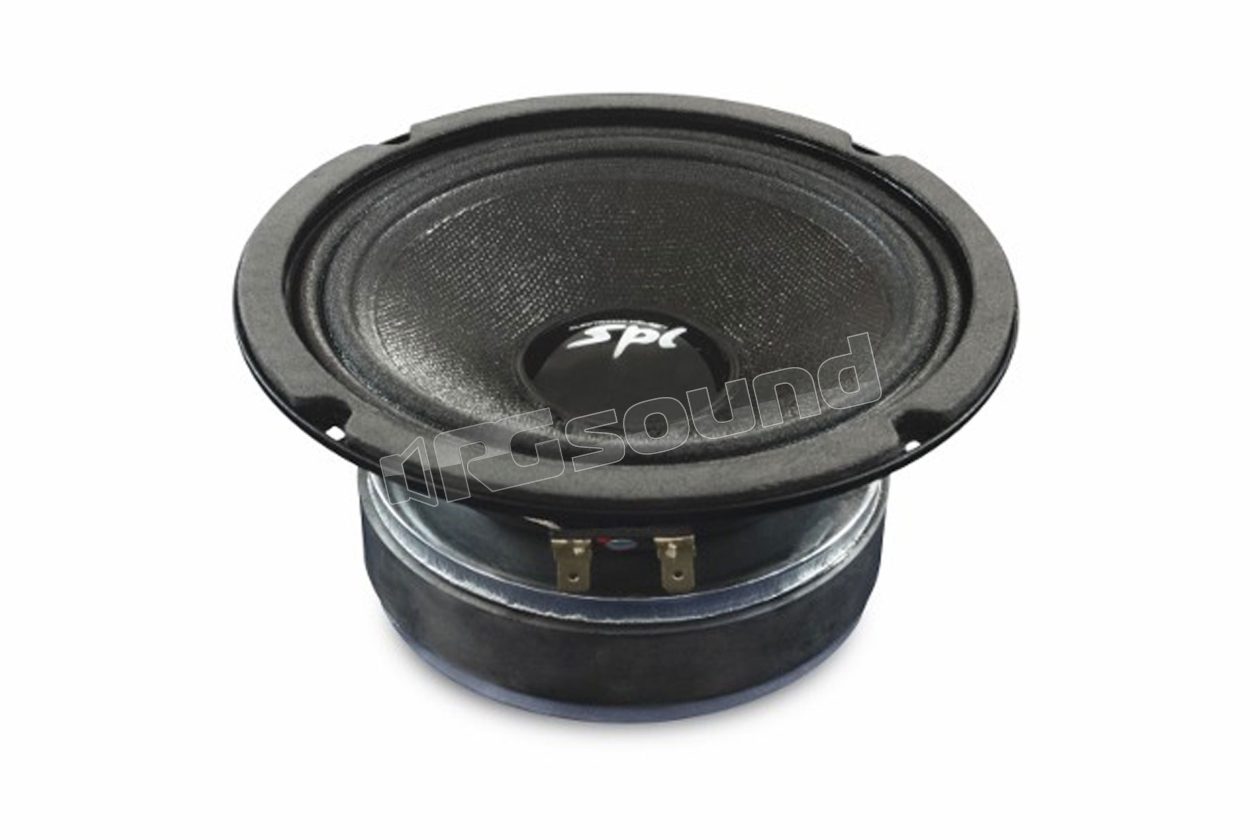

Electronic Melody MCM65SPL extended range 165mm (6.5") with waterproofed cellulose diaphragm and cloth suspension, 4 Ohm impedance, 80W RMS power.

Technical FeaturesMCM65SPL

Max Power 200 W
RMS Power 80 W
Panel Hole Ø 142 mm
Sensitivity (1W/1m) 93 dB
Nominal Impedance 4 Ω
Voice Coil Ø 38 mm
D 130.00 mm
Re 3.40 Ω
Fs 88.54 Hz

MCM65SPL Dimensions

Speaker Diameter 165 mm
Magnet Diameter 120 mm
Installation Hole Diameter 142 mm
Installation Depth 73 mm

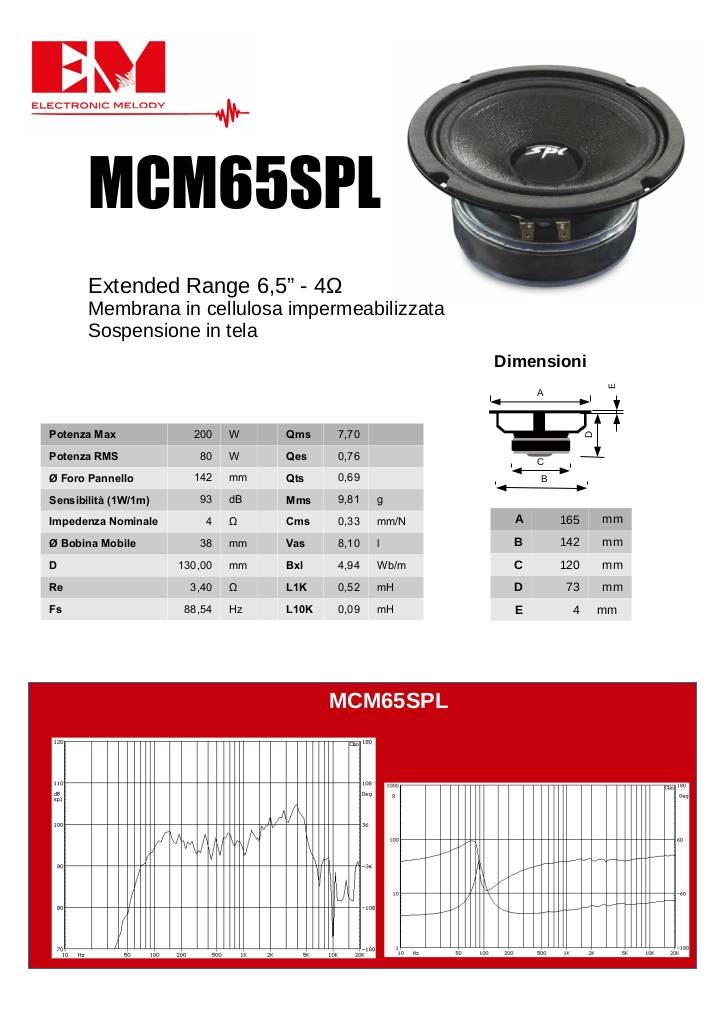

Scheda tecnica

n-20160914124927-mcm65spl.pdf
€ 58,50 Price incl. VAT
