MCD8SPL dual cone 20 cm

Electronic Melody
Your price:
€ 68,20
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Two-way
Speaker Size
200 mm
MAX Power
250 Watt
RMS Power
120 Watt
Sensitivity
96 dB
Impedance
4 Ohm

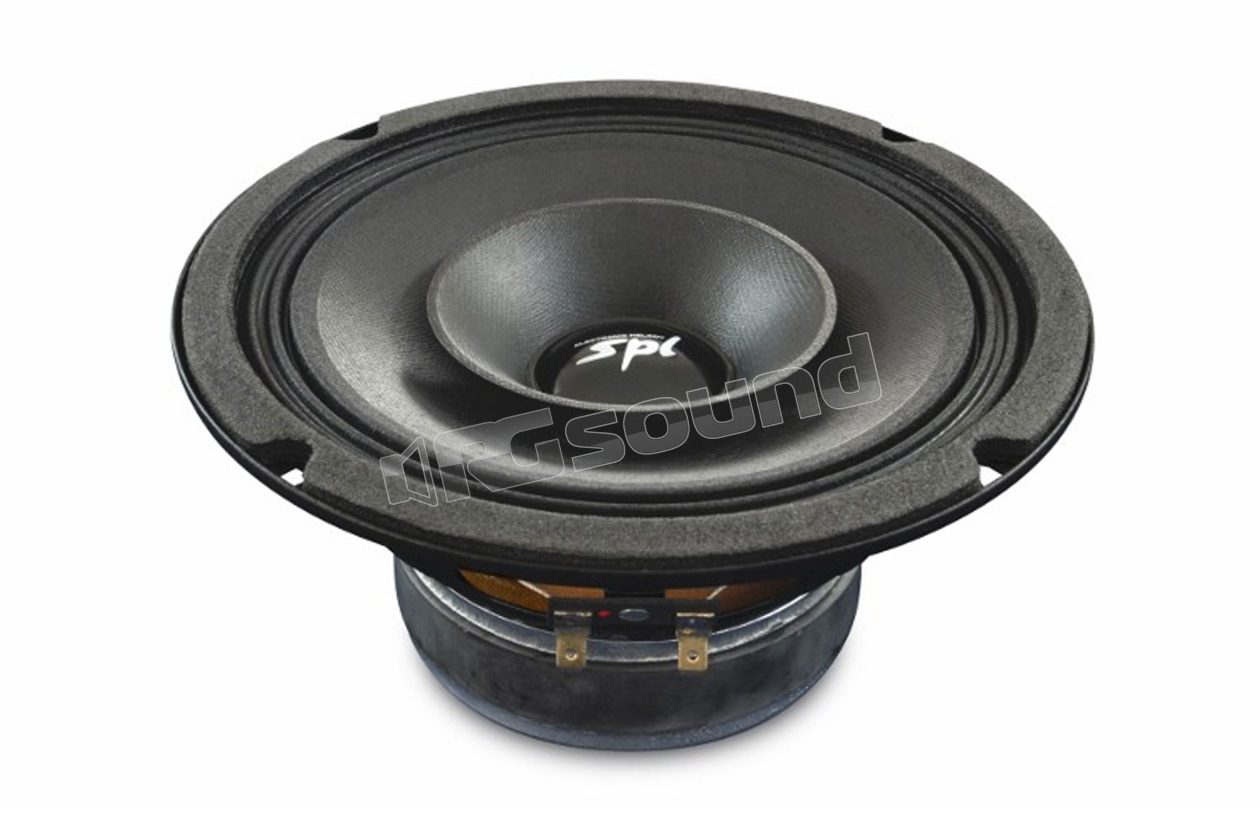

Electronic Melody MCD8SPL dual cone 209 mm (8") with cellulose membrane, treated fabric suspension, 4 Ohm impedance.

Technical FeaturesMCD8SPL

Max Power 250 W
RMS Power 120 W
Panel Hole Ø 185 mm
Sensitivity (1W/1m) 96 dB
Nominal Impedance 4 Ω
Voice Coil Ø 38 mm
D 170.00 mm
Re 3.40 Ω
Fs 102.93 Hz

MCD8SPL Dimensions

Speaker Diameter 209 mm
Magnet Diameter 135 mm
Installation Hole Diameter 185 mm
Installation Depth 88 mm

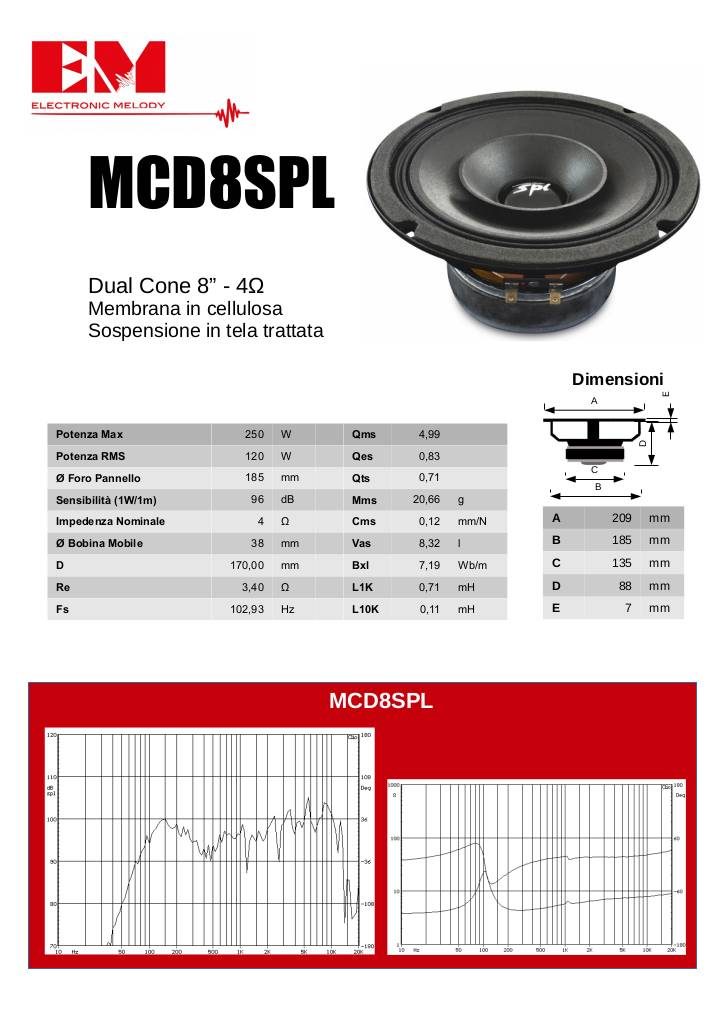

Scheda tecnica

n-20160914125310-mcd8spl.pdf
