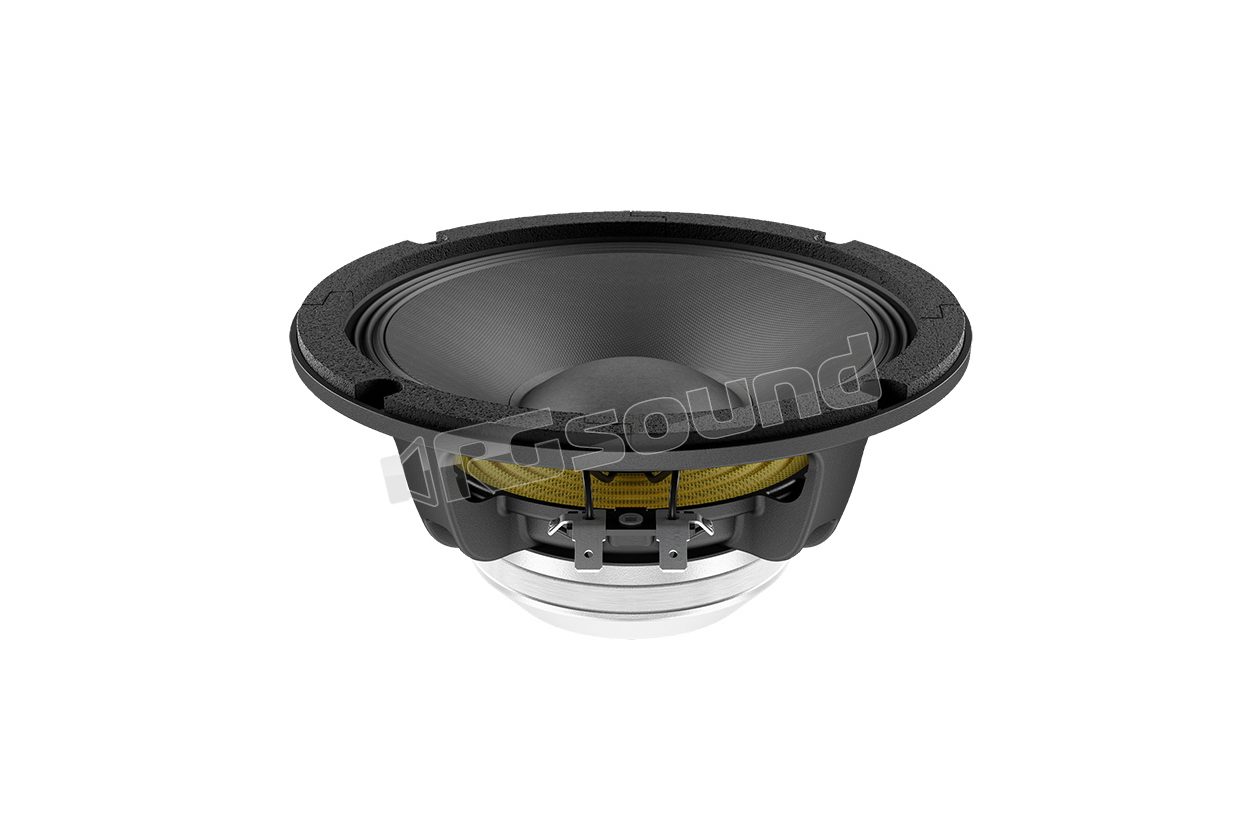

MAN061.80 6.5"/165mm Midrange

LaVoce
Your price:
€ 97,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
165 mm
MAX Power
300 Watt
RMS Power
150 Watt
Frequency Response
170 - 6000 Hertz
Sensitivity
95,5 dB
Impedance
8 Ohm
Weight
1,2 Kg
Voice Coil Diameter
45 mm

LaVoce MAN061.80 6.5"/165mm Midrange


LaVoce code 70R10061


MAN061.80 Features

  • 1.8 inch CCAW voice coil
  • Sensitivity 95.5 db/spl
  • 300 watts program power handling
  • FEM optimized motor and suspension
  • Optimized cooling system
  • Copper ring for extended frequency response
  • Resonance-free and robust basket design
  • Triple roll suspension

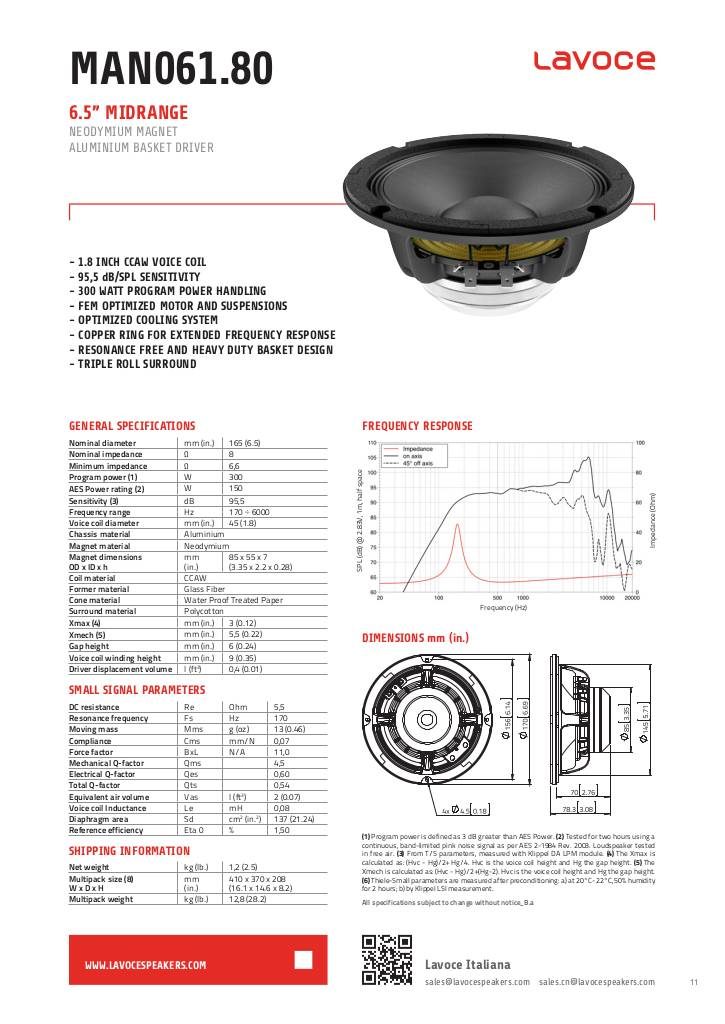

scheda tecnica

1549117780-man06180-1.pdf

LaVoce MAN061.80 Technical Specifications

  • Nominal diameter mm (in) 165 (6.5)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.6
  • Program power W 300
  • AES power W 150
  • Sensitivity dB 95.5
  • Frequency range Hz 170 ÷ 6000
  • Voice coil diameter mm (in) 45 (1.8)
  • Frame material Aluminum
  • Magnet material Neodymium
  • Magnet dimensions OD x ID x h mm (in) 85 x 55 x 7 (3.35 x 2.2 x 0.28)
  • Coil material CCAW
  • Surround material Fiberglass
  • Cone material Water-proof treated paper
  • Edge material Polycotton
  • Xmax mm (in) 3 (0.12)
  • Xmech mm (in) 5.5 (0.22)
  • Gap height mm (in) 6 (0.24)
  • Voice coil winding height mm (in) 9 (0.35)
  • Driver displacement volume l (ft³) 0.4 (0.01)
  • DC resistance Ohm 5.5
  • Resonance frequency Hz 170
  • Moving mass g (oz) 13 (0.46)
  • Compliance mm/N 0.07
  • Force factor N/A 11.0
  • Mechanical Q factor 4.5
  • Electrical Q factor 0.60
  • Total Q factor 0.54
  • Equivalent air volume l (ft3) 2 (0.07)
  • Voice coil inductance mH 0.08
  • Diaphragm area cm2 (in.2) 137 (21.24)
  • Reference efficiency 1.5
  • Net weight kg (lb) 1.2 (2.5)
  • Multipack dimensions L x W x H 410 x 370 x 208 (16.1 x 14.6 x 8.2)
  • Multipack weight kg (lb) 12.8 (28.2)
