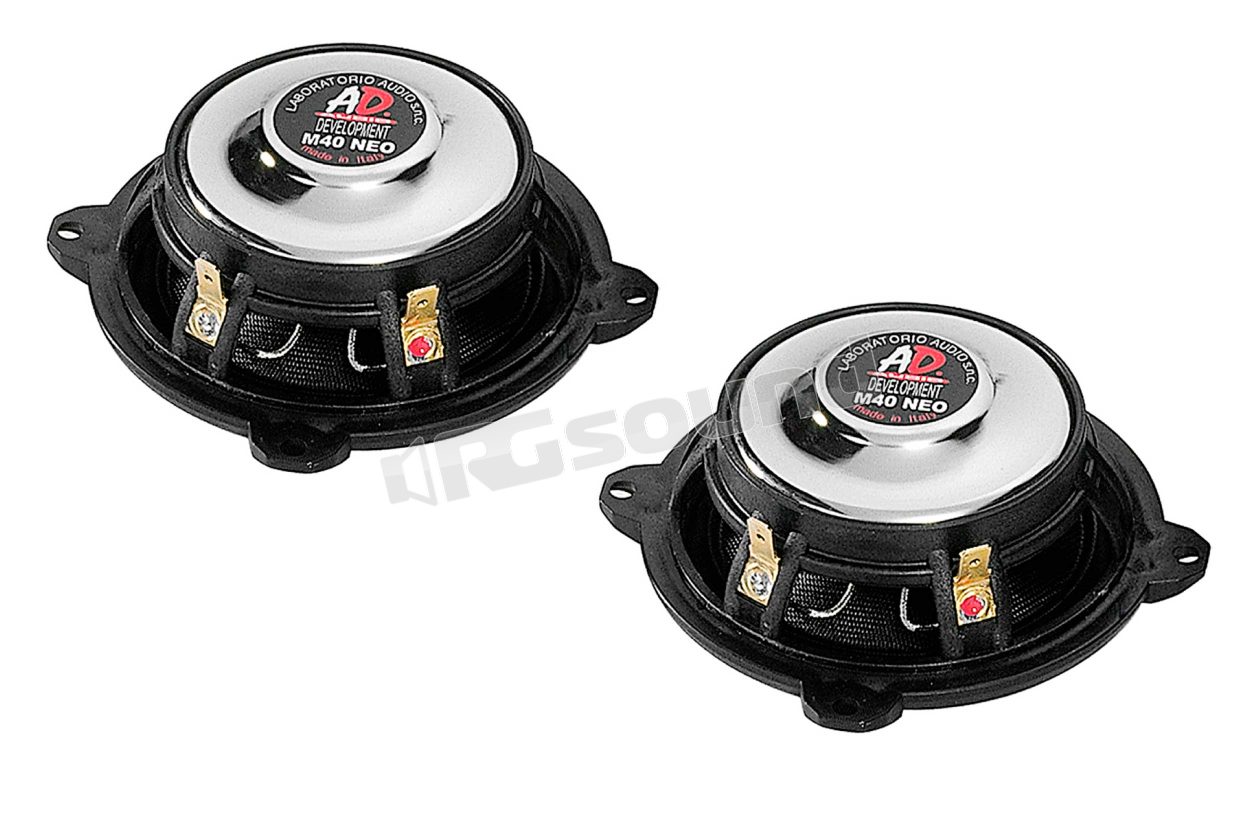

M40NEO 100mm Sound Quality midrange with fiberglass cone

AD Audio Development
Your price:
€ 262,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
100 mm
RMS Power
40 Watt
Frequency Response
130 - 7000 Hertz
Sensitivity
88 dB
Impedance
3 Ohm
Installation Depth
34 mm
Midrange Cone Material
Fibra di vetro

AD Audio Development M40NEO Midrange 100mm Sound Quality

The M40NEO by AD Audio Development is a 100 mm midrange designed to deliver detailed and natural sound reproduction. Thanks to its compact structure and high-quality materials, it is ideal for three-way systems and installations in limited spaces, while maintaining high quality standards. The cone is made of double-layer fiberglass, a material chosen for its structural rigidity and ability to optimize off-axis sound dispersion.

The rubber suspension ensures controlled excursion and linear response. The neodymium magnet provides stable and reliable response, while maintaining compact dimensions. The basket, constructed from reinforced and nickel-plated metal, is designed to resist even the most extreme climatic conditions, maintaining stability and consistent performance over time.

M40NEO Features

  • 100 mm midrange for compact installations and high performance.
  • Double-layer fiberglass cone for optimal rigidity and precise dispersion.
  • Rubber suspension for controlled excursion and linear response.
  • Neodymium magnet for stable and reliable response.
  • Reinforced and nickel-plated metal basket, resistant to extreme conditions.

Why Choose AD

All AD Audio Development products are handcrafted in Italy. Each component is built by hand by industry experts, using the highest quality materials and advanced technologies to guarantee exceptional sound performance and reliability over time.

The brand's philosophy is based on production that allows for rigorous quality control and constructive care that is rarely found in industrial products. AD components can be compared, in terms of performance and construction, to higher-end models, often sold at significantly higher prices.

Choosing AD Audio Development means purchasing a handcrafted hi-fi product, 100% made in Italy, with an unbeatable quality-to-price ratio for those seeking maximum performance without compromise.

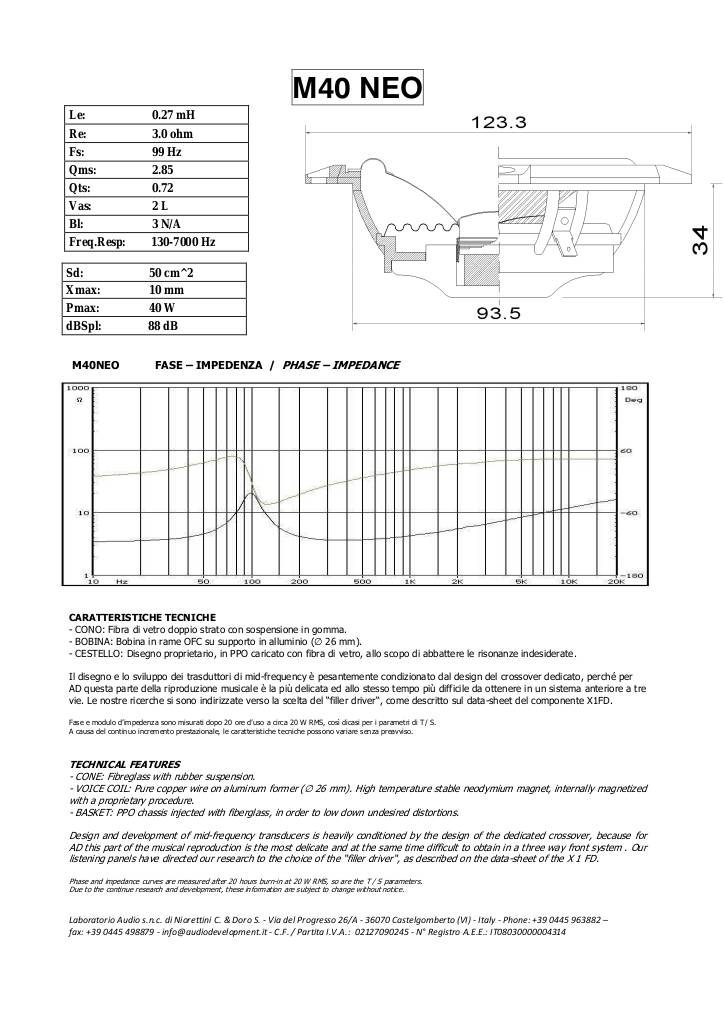

Scheda tecnica

n-20210608123507-m40neo-ita-sm.pdf

AD Audio Development M40NEO Technical Specifications

  • Nominal Power (RMS): 40 W
  • Frequency Response: 130 - 7,000 Hz
  • Sensitivity: 88 dB
  • Nominal Impedance: 3 Ohm
  • Installation Depth: 34 mm
  • Le: 0.27 mH
  • Re: 3.0 ohm
  • Fs: 99 Hz
  • Qms: 2.85
  • Qts: 0.72
  • Vas: 2 L
  • Bl: 3 N/A
  • Freq. Resp: 130-7000 Hz
  • Sd: 50 cm^2
  • Xmax: 10 mm
  • Pmax: 40 W
  • dBSpl: 88 dB
