M35NEO 87mm High-End Midrange

AD Audio Development
Your price:
€ 219,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
87 mm
RMS Power
40 Watt
Frequency Response
150 - 8000 Hertz
Sensitivity
88 dB
Impedance
3 Ohm
Installation Depth
36 mm
Midrange Cone Material
Fibreglass

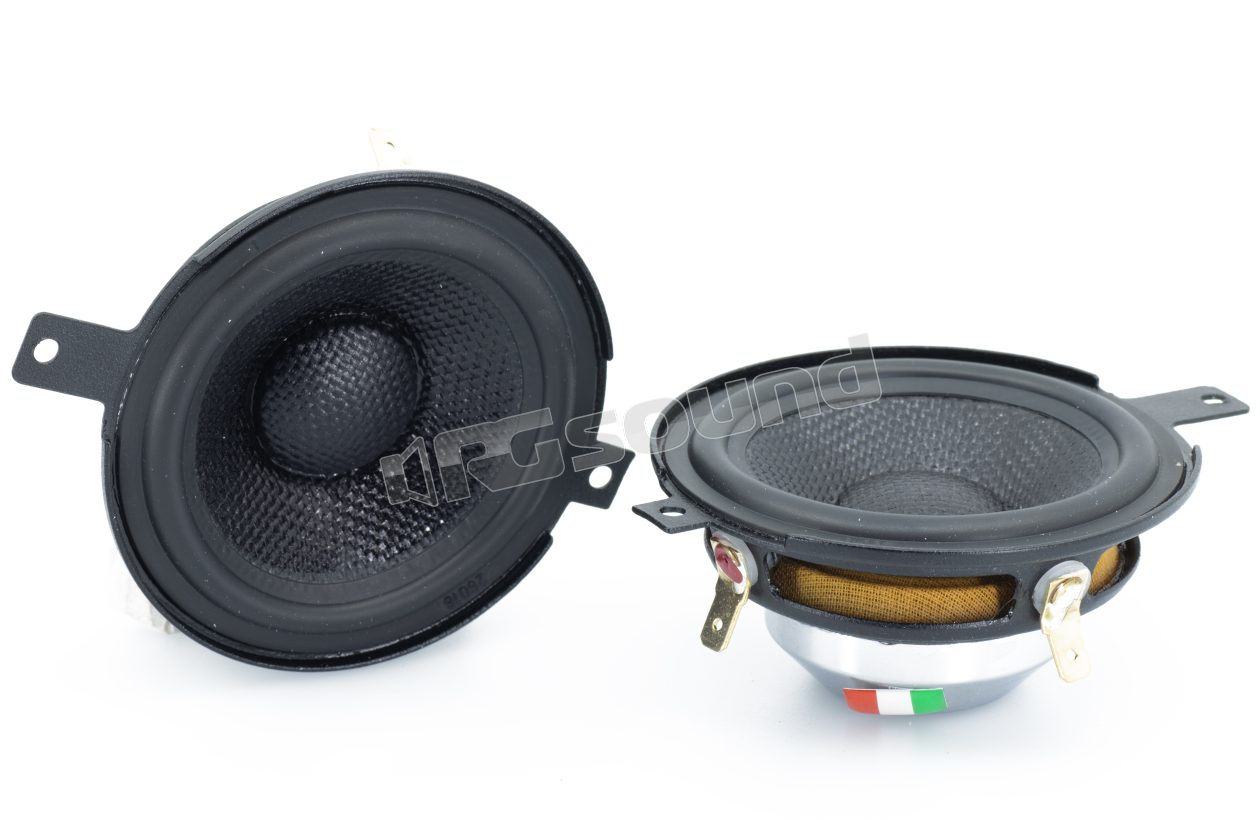

AD Audio Development M35NEO 87mm High-End Midrange

The M35NEO is an 87 mm midrange designed to deliver high-quality audio performance in compact spaces. Thanks to its compact design and high-end materials, it is ideal for three-way systems and OEM installations that require small-sized components without compromising sound quality.

M35NEO Features

  • Cone: Treated fiberglass to ensure rigidity and optimize off-axis dispersion.
  • Suspension: Rubber, for controlled excursion and linear response.
  • Voice coil: OFC copper on 25 mm aluminum support.
  • Magnet: Neodymium magnetized internally with proprietary process, stable at high temperatures.
  • Basket: Reinforced metal with ribs, nickel-plated, suitable for extreme weather conditions.

Why choose AD

All AD Audio Development products are handcrafted in Italy. Each component is hand-built by industry experts, using the highest quality materials and advanced technologies to ensure exceptional sound performance and reliability over time.

The brand's philosophy is based on production that allows rigorous quality control and constructive care that is rarely found in industrial products. AD components can be compared, in terms of performance and construction, to higher-end models, often sold at significantly higher prices.

Choosing AD Audio Development means buying a handcrafted hi-fi product, 100% made in Italy, with an unbeatable value for money for those seeking maximum performance without compromises.

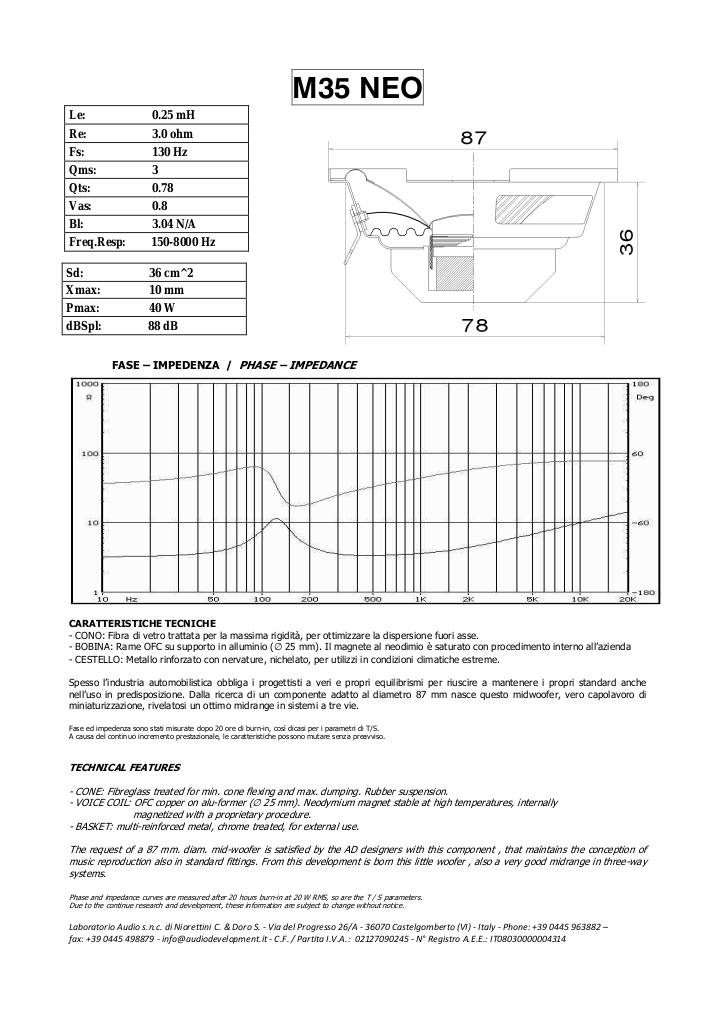

Scheda tecnica

n-20250528102213-m35neo.pdf

AD Audio Development M35NEO Technical Specifications

  • Diameter: 87 mm
  • RMS Power: 40 W
  • Frequency response: 150 - 8,000 Hz
  • Sensitivity: 88 dB
  • Impedance: 3 Ohm
  • Installation depth: 36 mm

T/S Parameters

  • Sd: 36 cm²
  • Re: 3 Ohm
  • Fs: 130 Hz
  • Vas: 0.8 liters
  • Qts: 0.78
  • Qms: 3.0
  • BxL: 3.04
  • Le: 0.25 mH
  • Xmax: 10 mm
€ 219,00 Price incl. VAT
