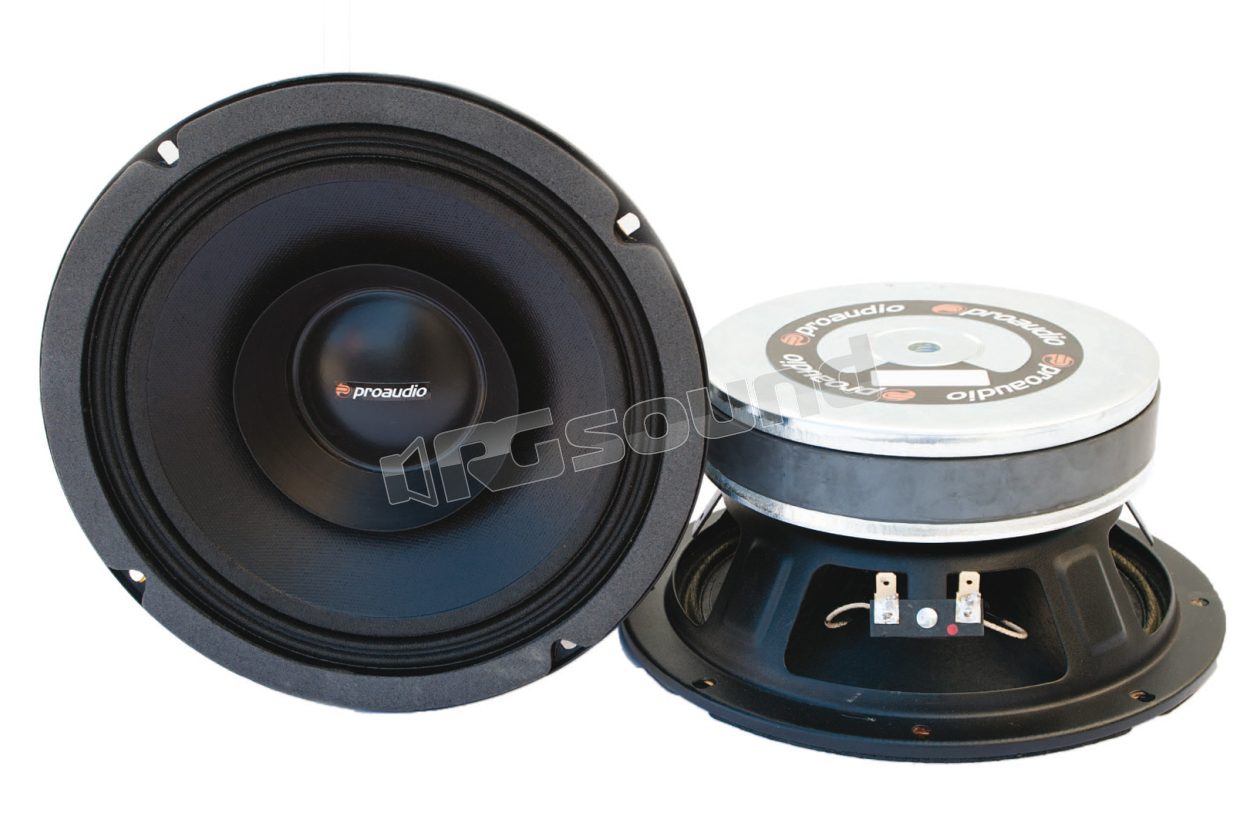

M200 high-efficiency, high-quality extended range

Proaudio
Your price:
€ 295,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
200 mm
MAX Power
500 Watt
RMS Power
250 Watt
Sensitivity
98 dB
Impedance
4 Ohm
Weight
4,5 Kg
Installation Depth
92 mm

Proaudio M200 extended range 20cm with devastating impact designed without compromises, see the powerful magnet capable of delivering energy for truly extraordinary pressure levels. The mechanical balance achieved is felt: the aluminum wire coil winding treated with special thermosetting resins, the spider and the NOMEX® suspension blend together in a perfectly balanced, coherent and pleasant system, unusual to find in transducers of this category.

M200 Features

Basket: black textured painted iron scratch-resistant
Magnetic group: ferrite
Coil: aluminum wire winding, aluminum support
Coil diameter: 50 mm
Spider: Nomex Fabric
Suspension: nomex
Cone: cellulose fibers treated with vinyl resins, water-repellent
Power handling: 250 Watt RMS | 500 Watt Max
Impedance: 4 ohm
Efficiency: 98 dB

INSTALLATION ADVICE

Installation visible in doors from 2 to six units per side.
Reinforced resin brackets well built are strongly recommended.
Thanks to the dual cone it is possible to exploit the wide polar response for creative doors, "changing" the inclinations on the plane without losing linearity, multi-amplification necessary, filtered electronically at 150Hz HP.

Dust cap with dual cone, grilles separate on request.

We recommend the following pairing: MT25 - M200

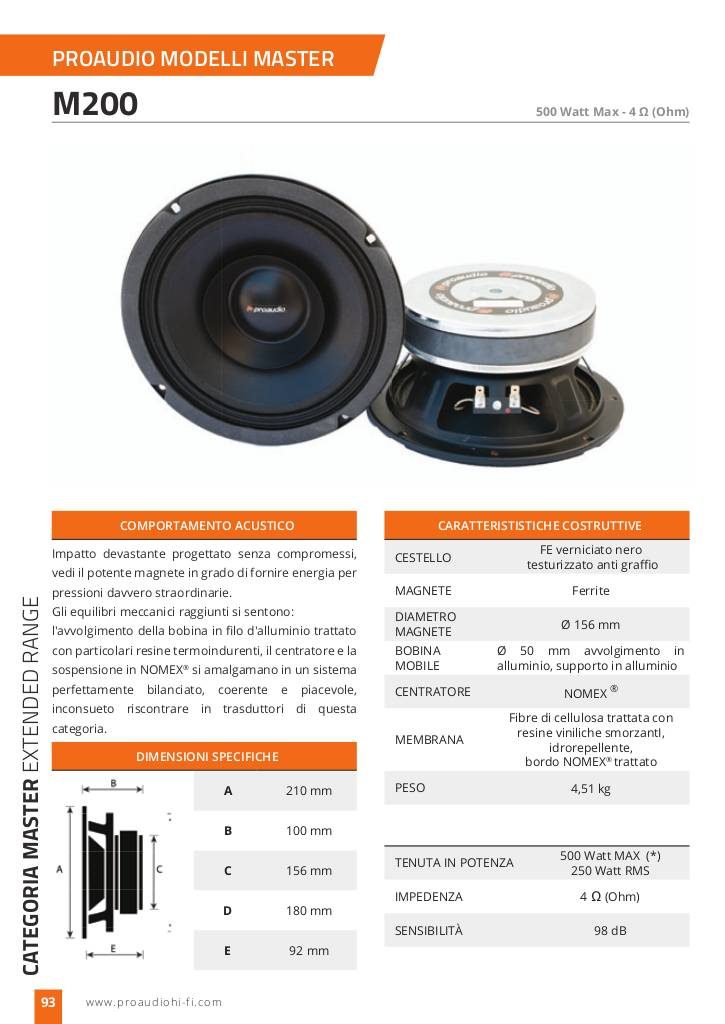

Scheda tecnica

20141229120831-proaudio-scheda-m200-low.pdf
€ 295,00 Price incl. VAT
