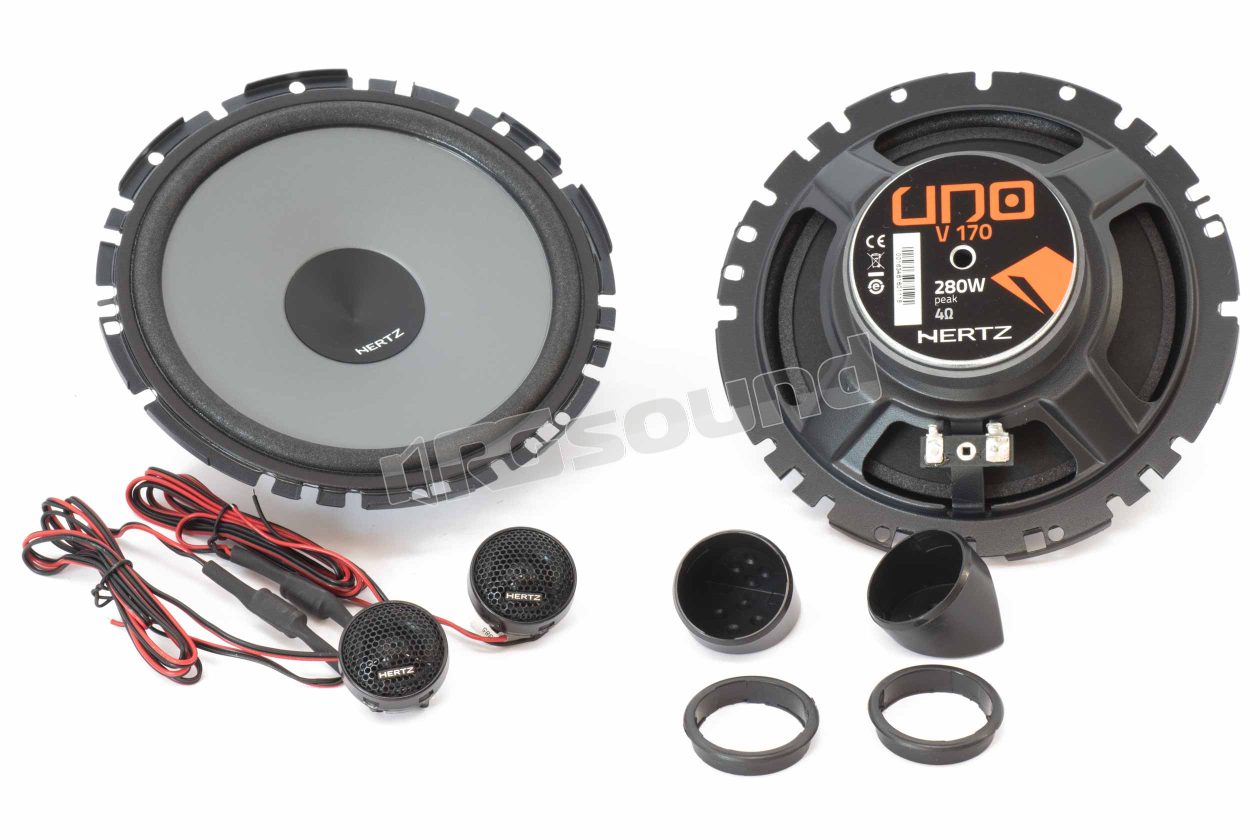

K 170 2-way component kit with 170mm woofer

Hertz
Your price:
€ 69,90
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
55 - 23.000 Hertz
Woofer Size
165 mm
Tweeter Size
24 millimetri
MAX Power
280 Watt
RMS Power
70 Watt
Sensitivity
93.5 dB
Impedance
4 Ohm
Woofer Material
Cellulosa trattata
Tweeter Material
Neodimio e cupola in PEI

Hertz K 170 Entry level two-way kit with 170mm woofer, 24mm tweeter and 6 dB/Oct crossover Serie Uno



This kit should be used in combination with original or aftermarket radios as both the woofer and tweeter are very sensitive. We advise against use on systems equipped with an external amplifier. The components of the K 170 system are recommended for upgrading the factory system: 24 mm (0.9") neodymium tweeter with PEI dome for brilliant reproduction of high frequencies even in compact dimensions, their annular acoustic lens is optimized for exceptional off-axis performance ensuring accurate stereo reproduction.

The 170mm (6.7") woofers have a water-repellent pressed paper cone surrounded by a flexible ring for high bass SPL, a 25 mm (1") voice coil guided by a high flux density ferrite magnet that offers good and dynamic power handling for powerful, distortion-free sound. The 6dB/Oct crossovers are integrated into the tweeter wiring for easy and immediate factory (OEM) system upgrade.

The Kit consists of:

Tweeter T 24

  • Neodymium tweeter with 24 mm diaphragm and PEI dome, for brilliant reproduction of high frequencies in a compact format.
  • Annular acoustic lens optimized for exceptional off-axis performance.
  • 6dB/Oct crossover integrated into the tweeter wiring.
  • Mounting accessories for external or recessed mounting included.

Woofer V 130

  • V-cone® design for improved off-axis response, clear details on mid-high frequencies and powerful bass.
  • Surrounded by foam that combines high sensitivity and deep bass response.
  • Woofer with 25 mm (1 inch) pure copper moving coil for high dynamic power handling.
  • 80 mm (3.15") high flux density ferrite magnet for powerful and undistorted sound.
  • DIN-sized basket easy to install and protected by abrasion-resistant dust-proof paint.

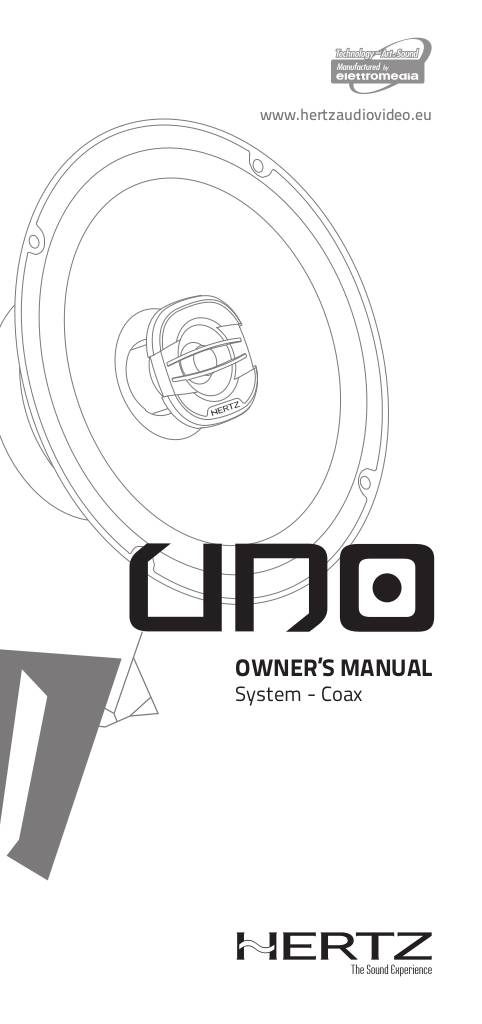

Manuale utente

n-20170220121258-uno-owners-manual-rev16b5.pdf

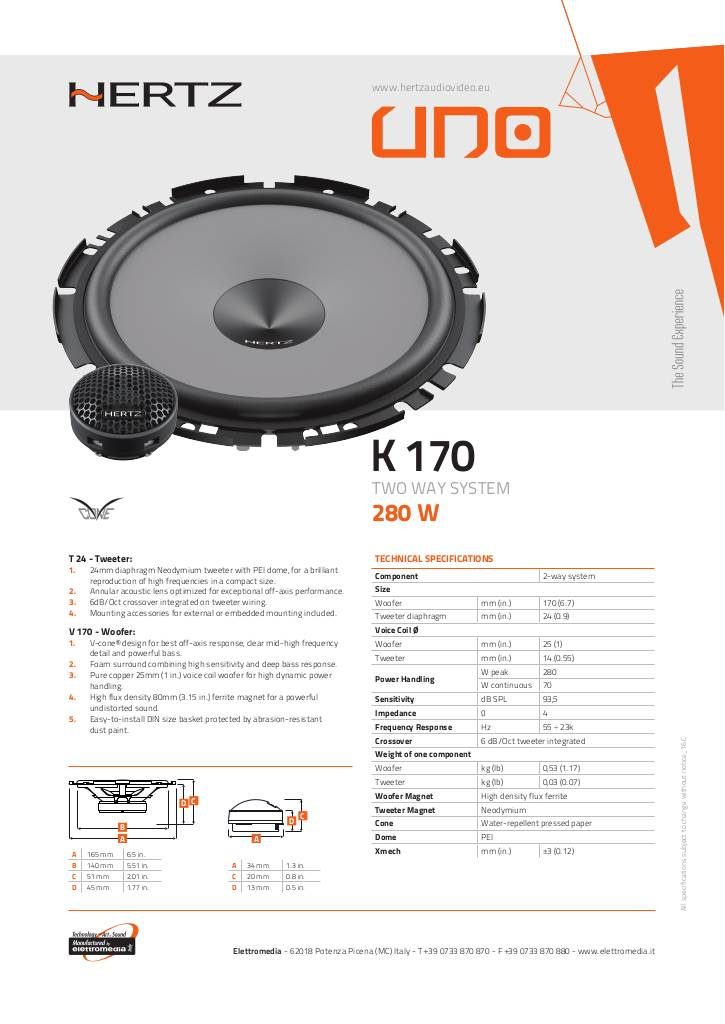

Scheda tecnica

n-20170220121258-hertz-uno-k170-tech-sheet-16c.pdf

Hertz K 170 Technical Specifications

  • Rated Power 70 W
  • Maximum Power 280 W
  • Impedance 4 Ohm
  • Frequency Response 55 - 23,000 Hz
  • Sensitivity 93.5 dB
  • Woofer Voice Coil 25 mm
  • Woofer Diameter 170 mm
  • Woofer Cone Water-resistant Pressed Paper
  • Woofer Magnet High Flux Density Ferrite
  • Tweeter Diameter 24 mm
  • Tweeter Dome PEI
  • Tweeter Magnet Neodymium
  • 6 dB/Oct Integrated Crossover
€ 69,90 Price incl. VAT
